B0835

DTC B0835

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC B0835 00

-
Cruise Control System Active Indicator Circuit

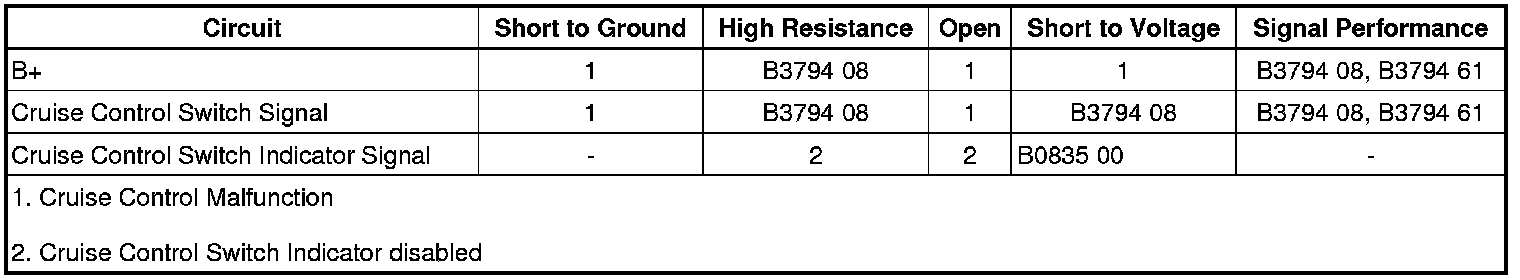

Diagnostic Fault Information






Circuit/System Description

The cruise control switch contains an LED that illuminates to indicate the cruise control system has been switched ON. Voltage is applied through the ON/OFF switch to the LED when the switch is pressed. The body control module (BCM) provides the ground path for the LED through a dedicated LED control circuit. Pressing the switch again opens the switch and the lamp turns OFF.

Conditions for Running the DTC

* The ignition is ON.

* The cruise switch is ON.

Conditions for Setting the DTC

* The BCM detects excessive current in the cruise control indicator signal circuit.

* The above condition is present for greater than 5 seconds.

Actions Taken When the DTC Sets

* The malfunction indicator lamp (MIL) will not illuminate.

* The cruise control system is disabled.

Conditions for Clearing the DTC

* The condition responsible for setting the DTC no longer exists.

* A history DTC will clear after 40 malfunction-free ignition cycles have occurred.

Reference Information

Schematic Reference

Cruise Control Schematics Electrical Diagrams

Connector End View Reference

Component Connector End Views 1-2 Shift Solenoid (SS) Valve (M30)

Description and Operation

Cruise Control Description and Operation Description and Operation

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Control Module References for scan tool information

Circuit/System Testing

1. Ignition OFF, disconnect the harness connector at the steering wheel controls switch - left.

2. Ignition ON, verify that a test lamp illuminates between the signal circuit terminal 9 and B+.

• If the test lamp does not illuminate, test the signal circuit for a short to voltage or an open/high resistance. If the circuit tests normal, replace the BCM.

3. If all circuits test normal, test or replace the steering wheel controls switch - left.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.

* Steering Wheel Control Switch Assembly Replacement Service and Repair

* Control Module References Control Module References for BCM replacement, setup, and programming
