Home >> Chevy Truck >> 2013 >> Express 3500 V8-6.0L CNG >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Number >> X168

X168

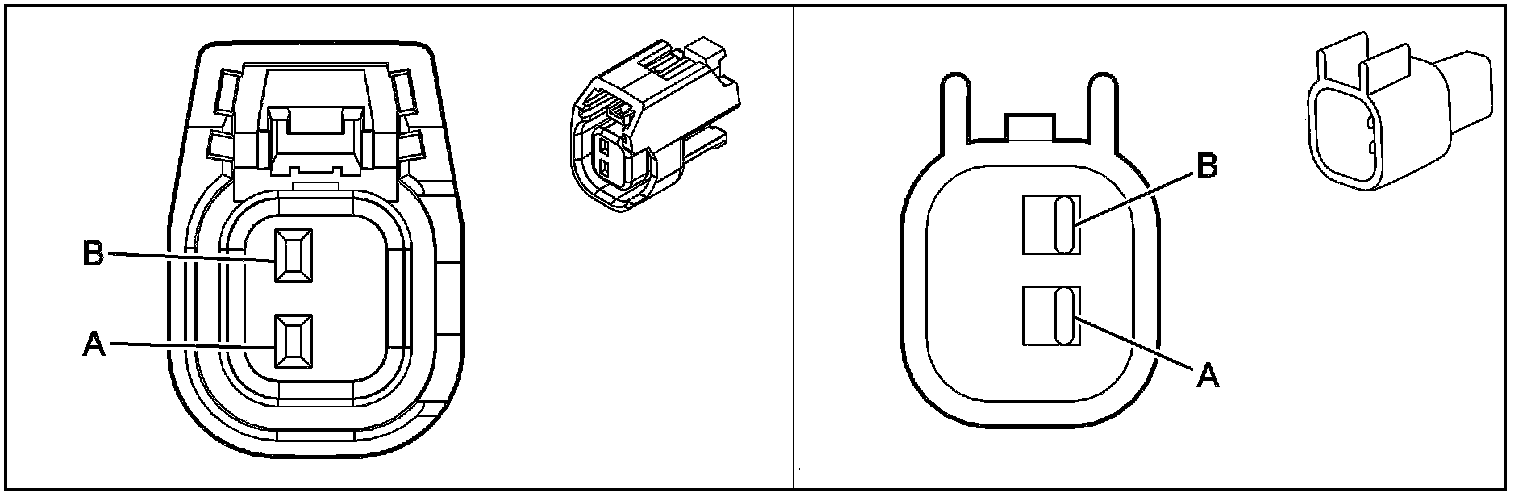

Inline Harness Connector End Views

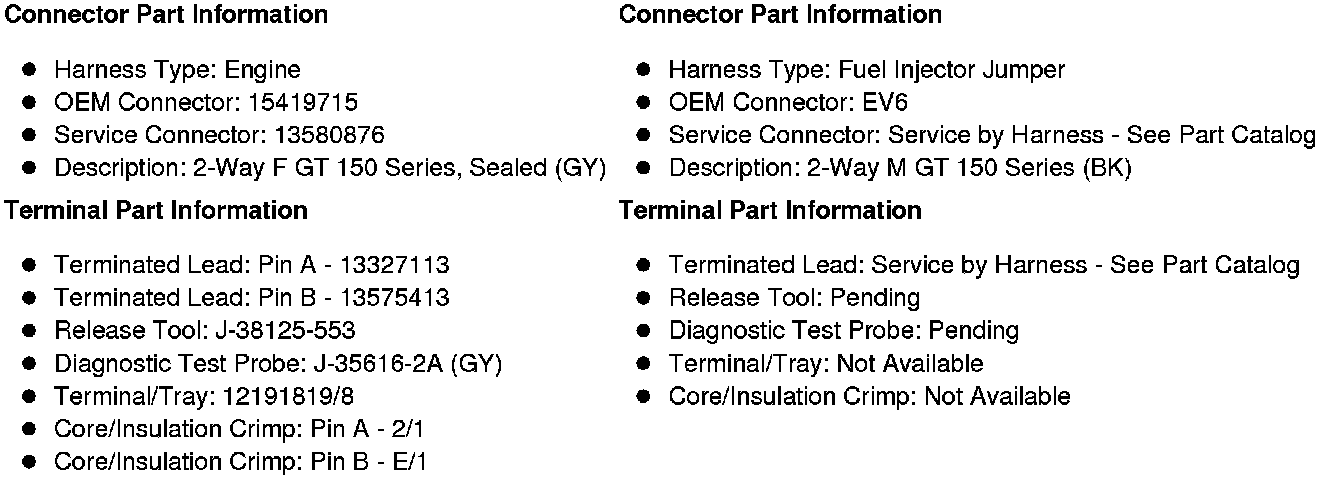

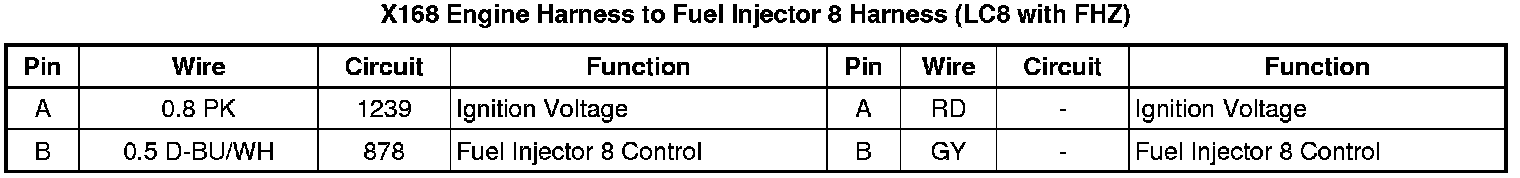

X168 Engine Harness to Fuel Injector 8 Harness (LC8 with FHZ)
















Inline Harness Connector End Views

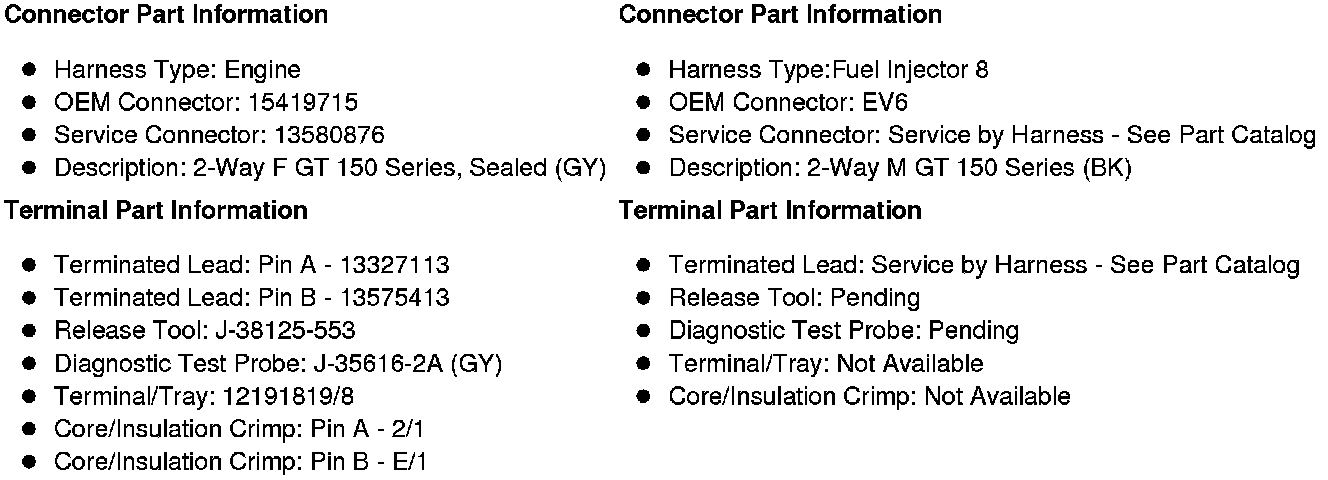

X168 Engine Harness to Fuel Injector 8 Harness (KO7 and UFM)
