X167

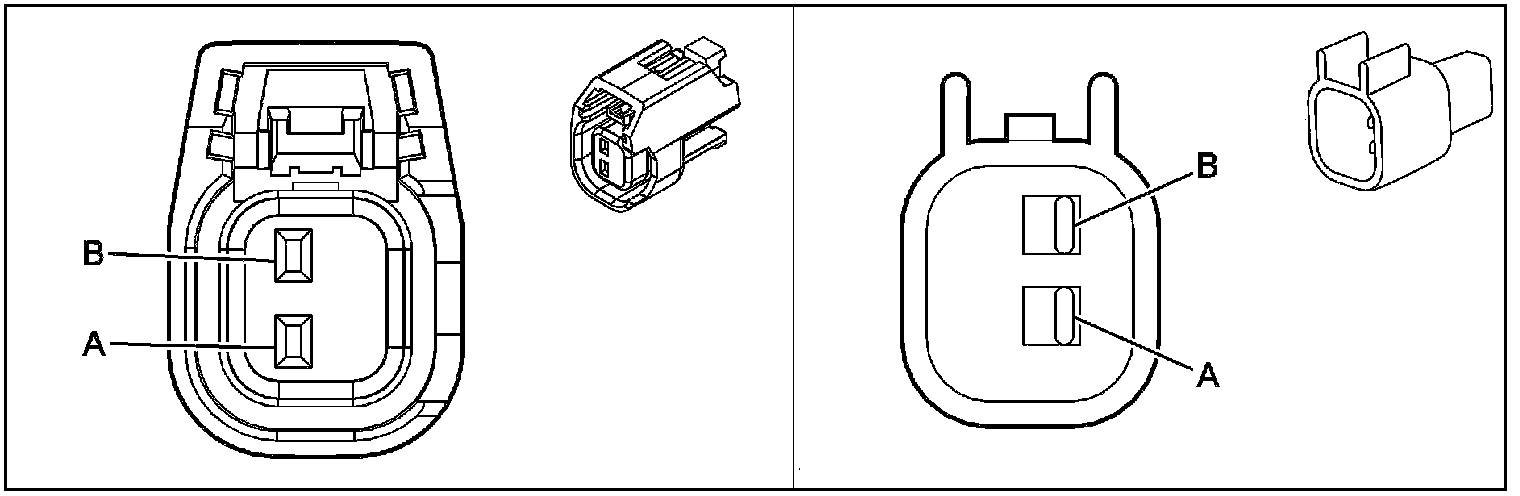

Inline Harness Connector End Views

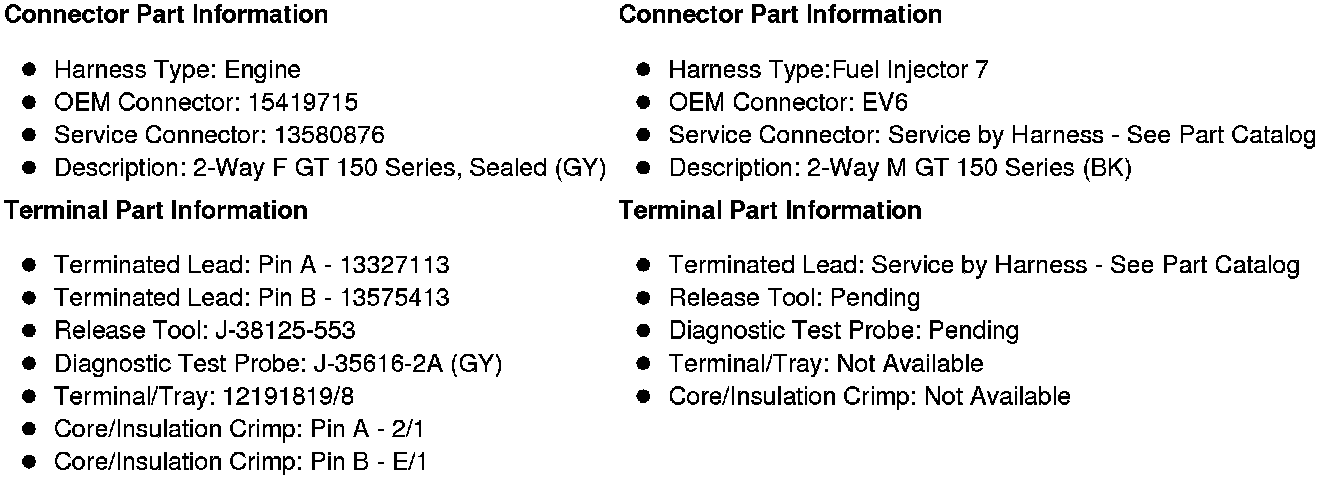

X167 Engine Harness to Fuel Injector 7 Harness (LC8 with FHZ)
















Inline Harness Connector End Views

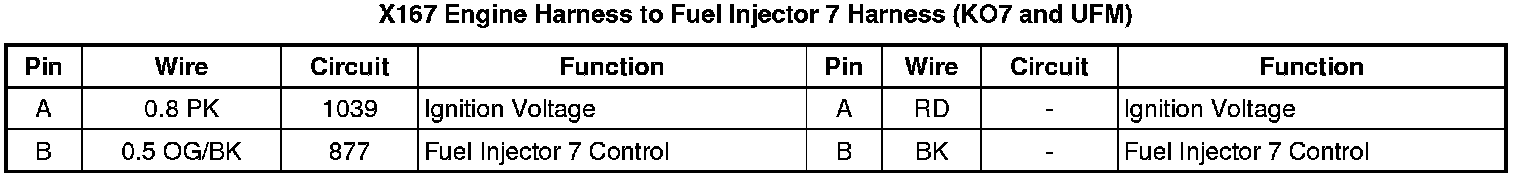

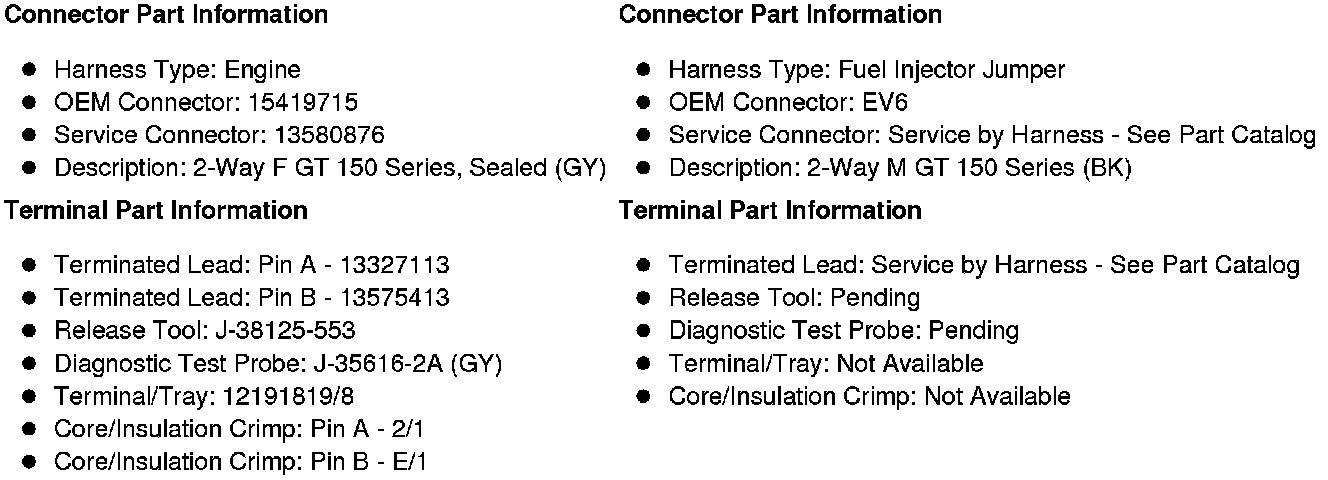

X167 Engine Harness to Fuel Injector 7 Harness (KO7 and UFM)
