X165




Inline Harness Connector End Views

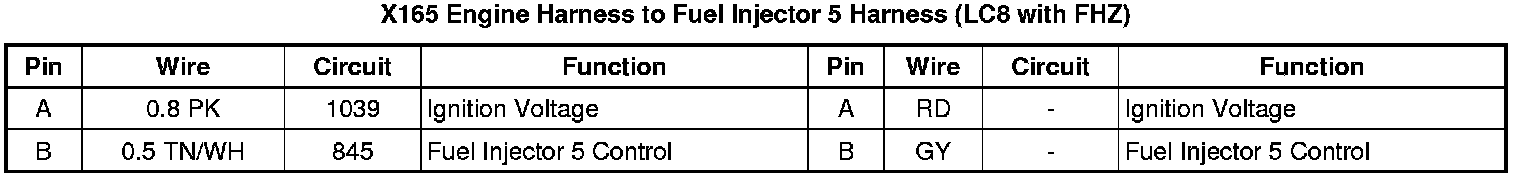

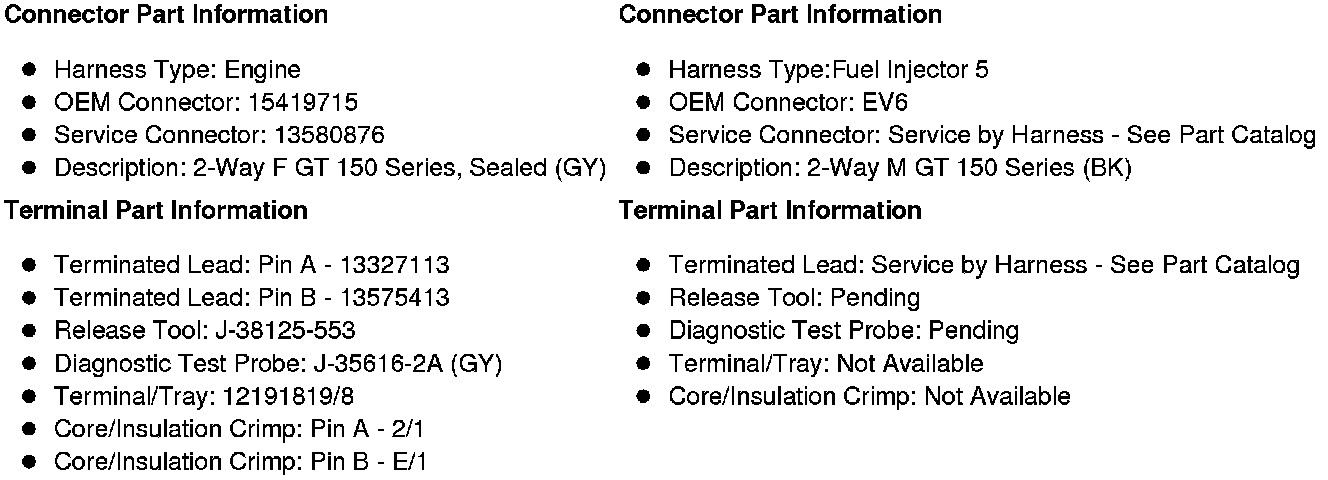

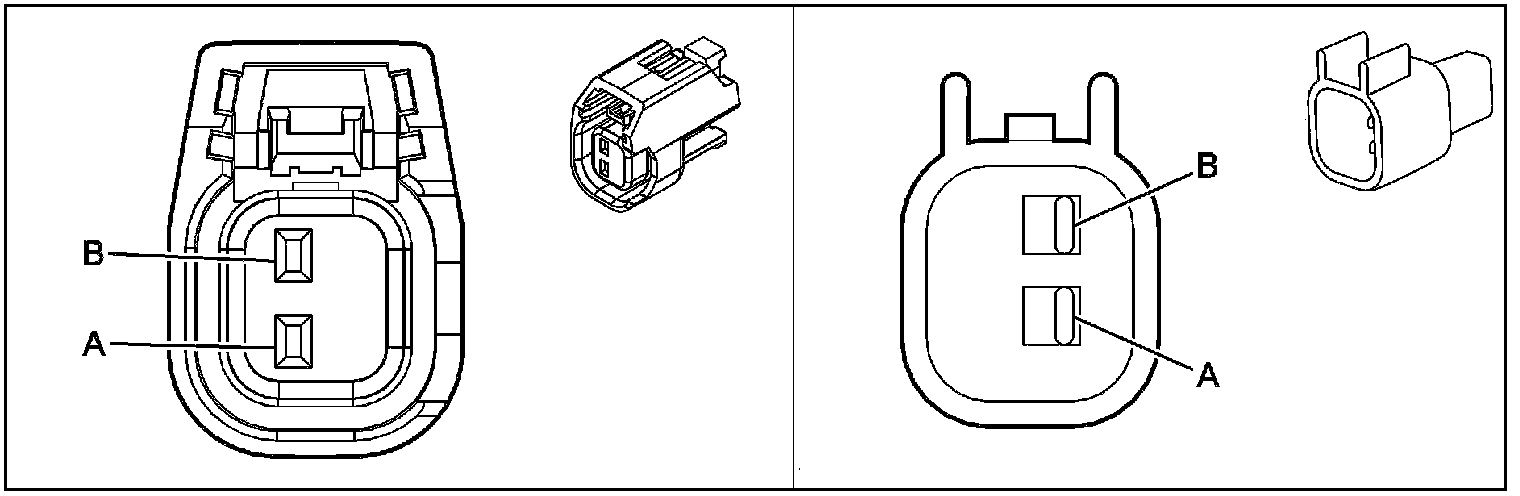

X165 Engine Harness to Fuel Injector 5 Harness (LC8 with FHZ)
















Inline Harness Connector End Views

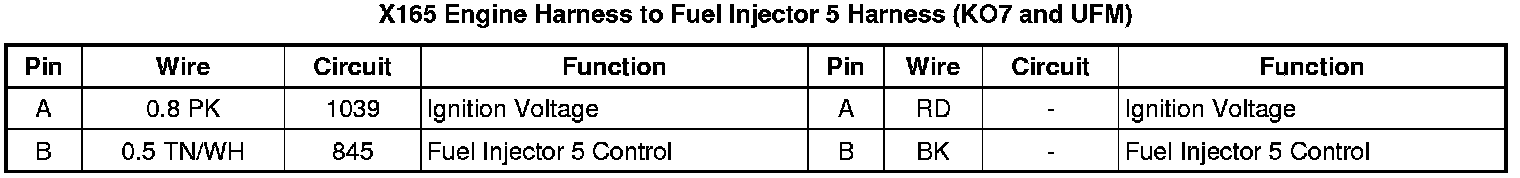

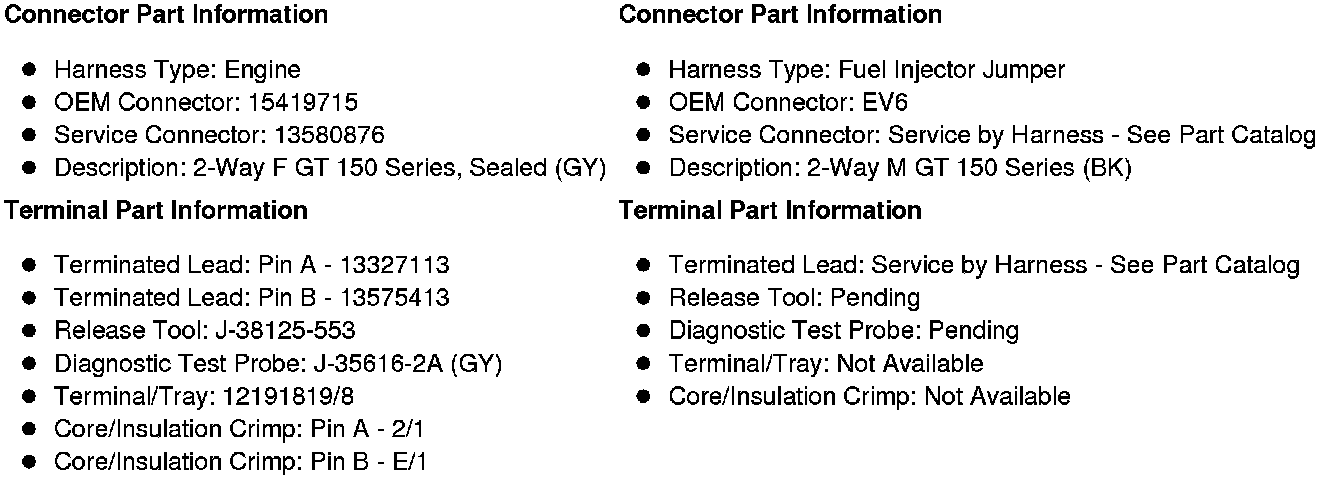

X165 Engine Harness to Fuel Injector 5 Harness (KO7 and UFM)
