X164

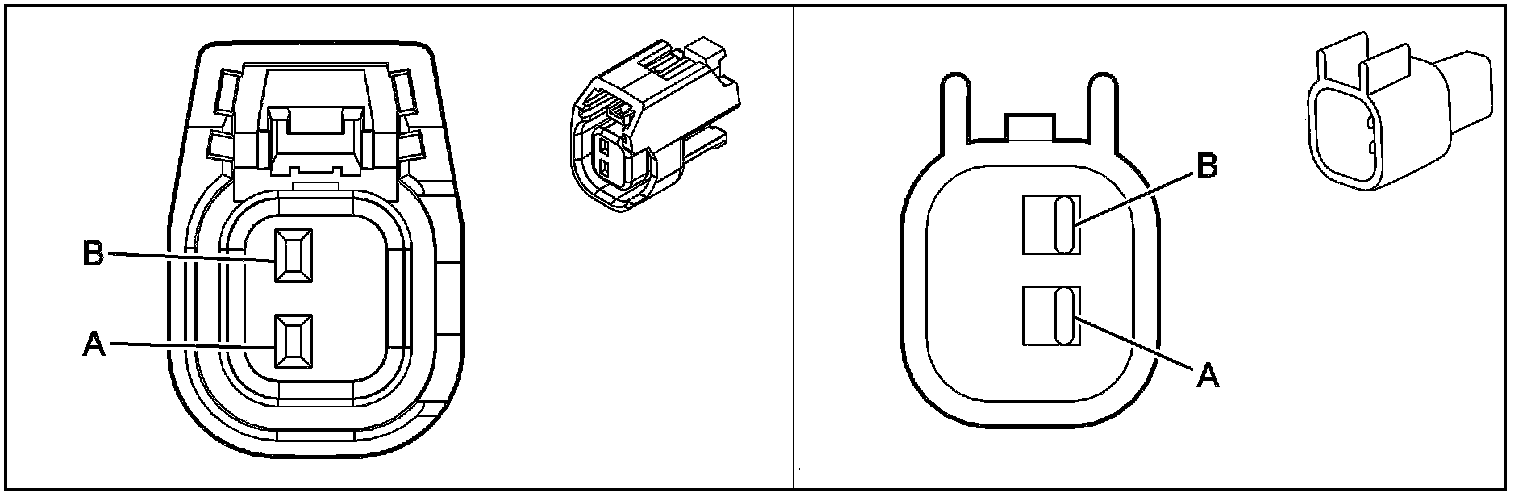

Inline Harness Connector End Views

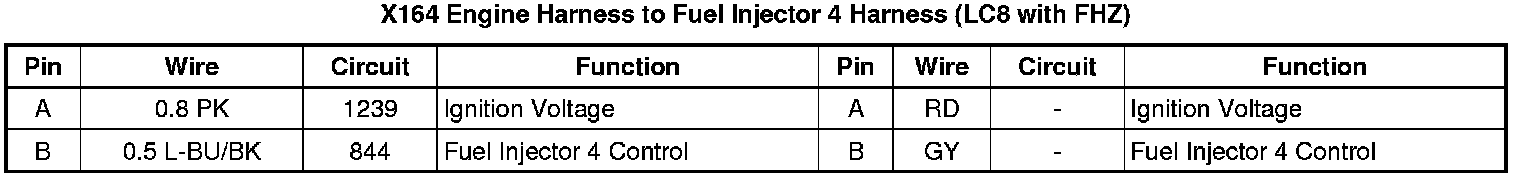

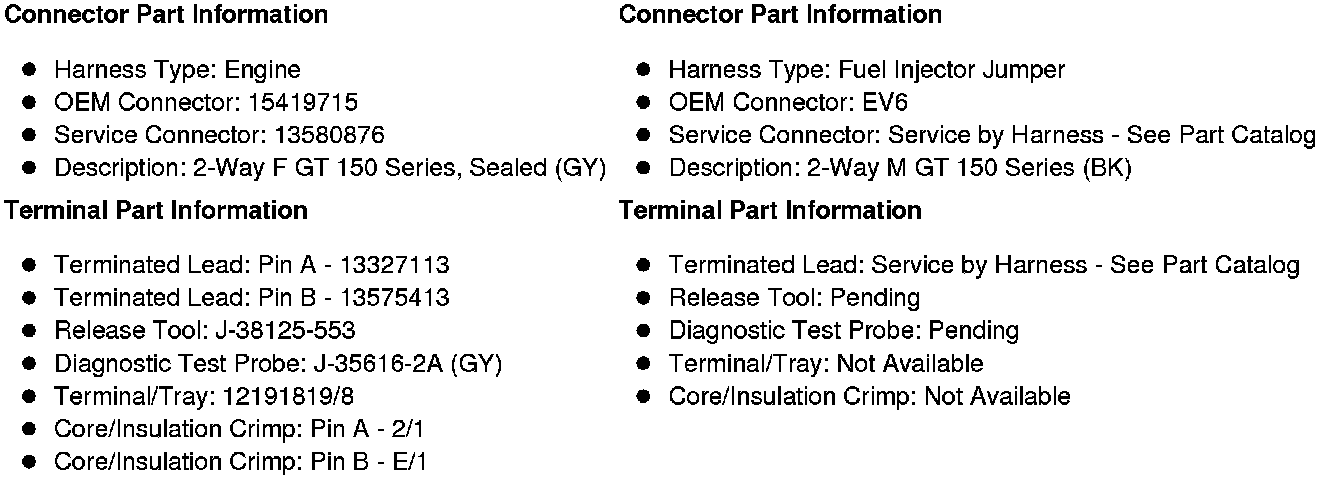

X164 Engine Harness to Fuel Injector 4 Harness (LC8 with FHZ)
















Inline Harness Connector End Views

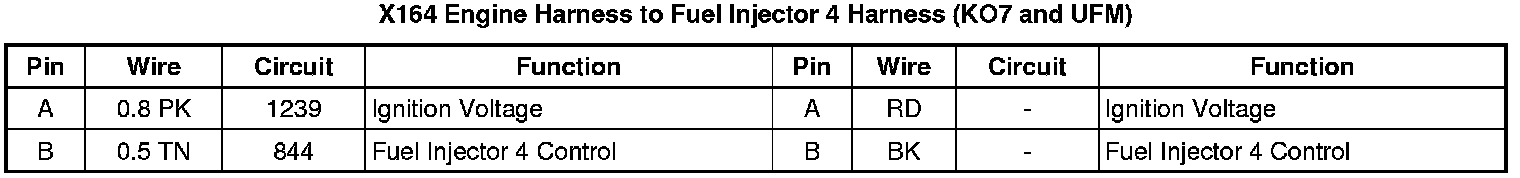

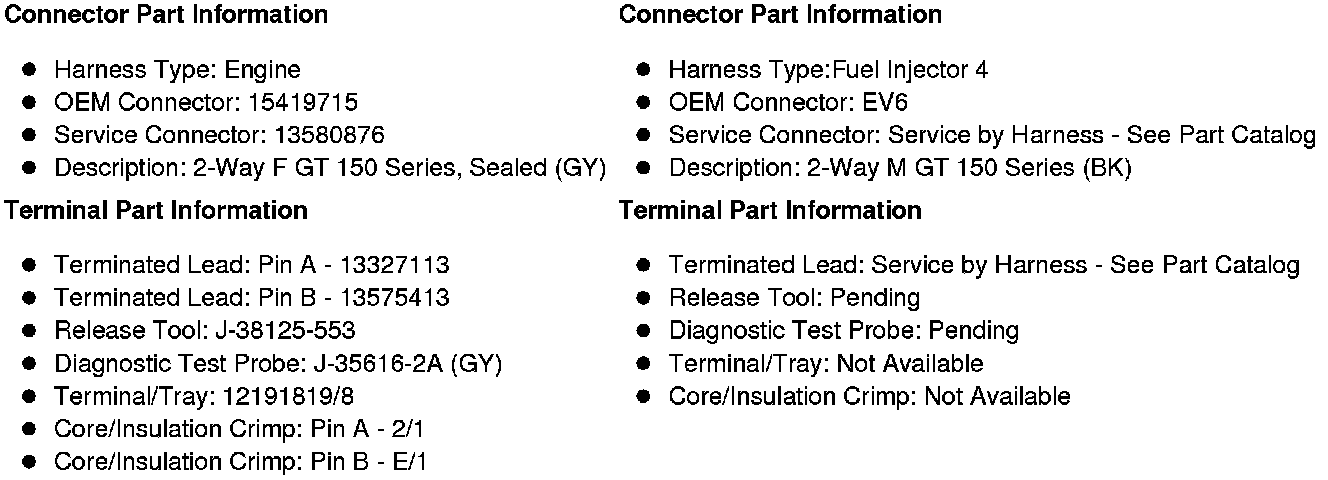

X164 Engine Harness to Fuel Injector 4 Harness (KO7 and UFM)
