Fuel Injector 5




Component Connector End Views

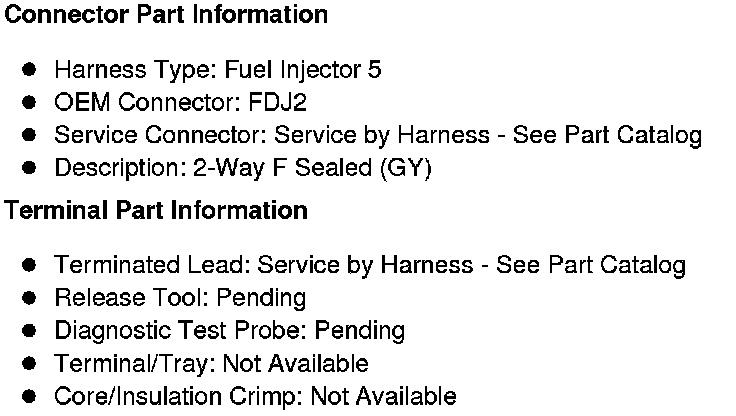

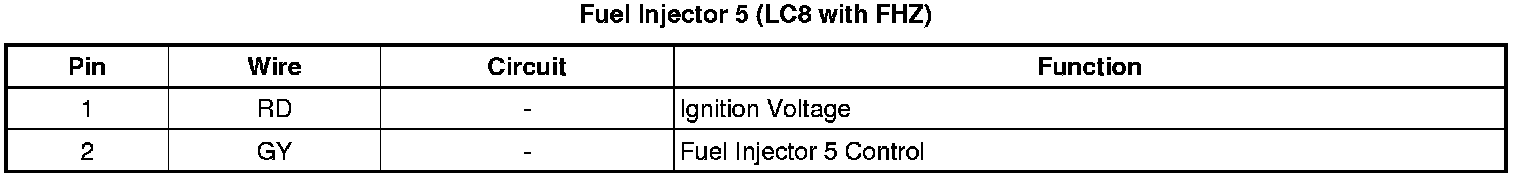

Fuel Injector 5 (LC8 with FHZ)
















Component Connector End Views

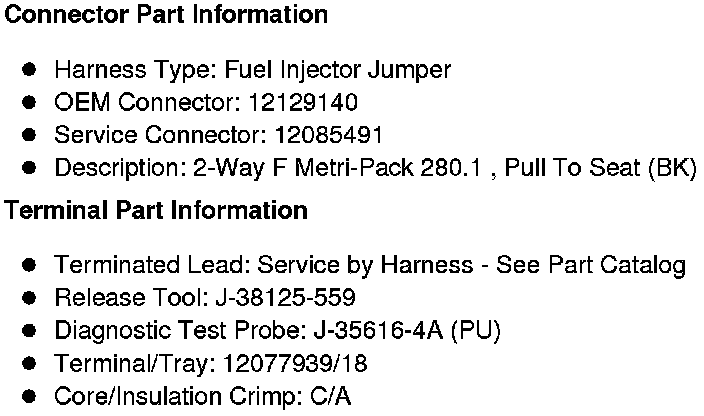

Fuel Injector 5 (LC8 with KO7 and UFM)
