LPG Bypass Solenoid Relay (KO7 with UFM)
LPG Bypass Solenoid Relay (KO7 with UFM)

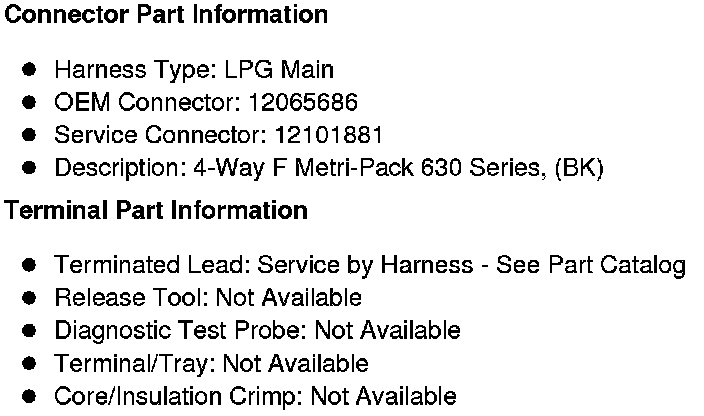

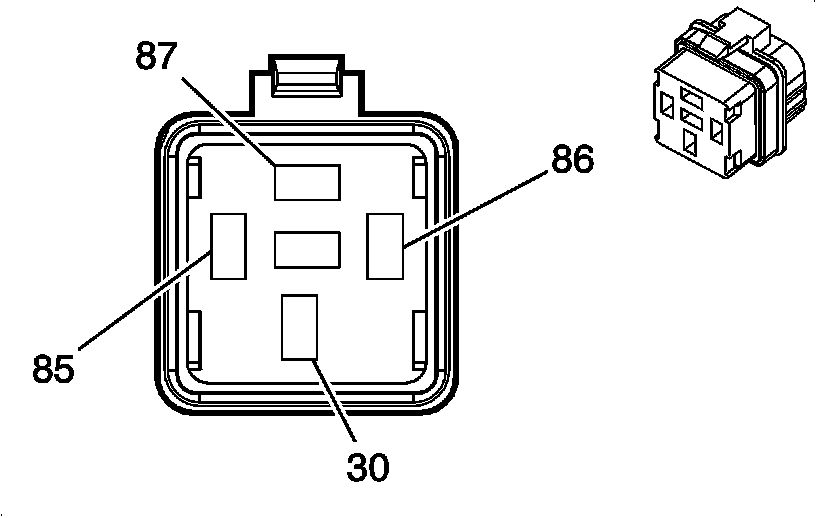

Component Connector End Views

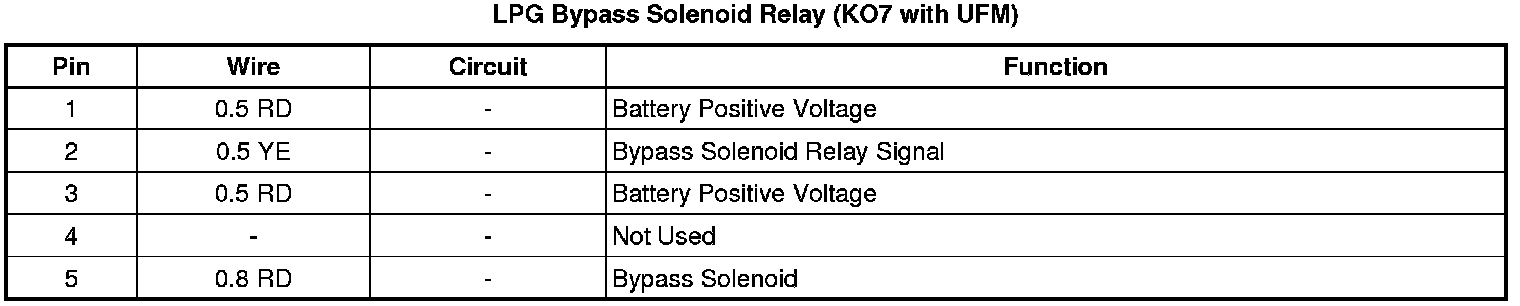

LPG Bypass Solenoid Relay (KO7 with UFM)
