Alternative Fuel Control Module
>>
LPG Control Module - Secondary (KO7 with UFP)
LPG Control Module - Secondary (KO7 with UFP)

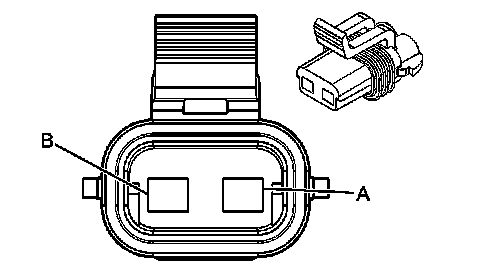

Component Connector End Views

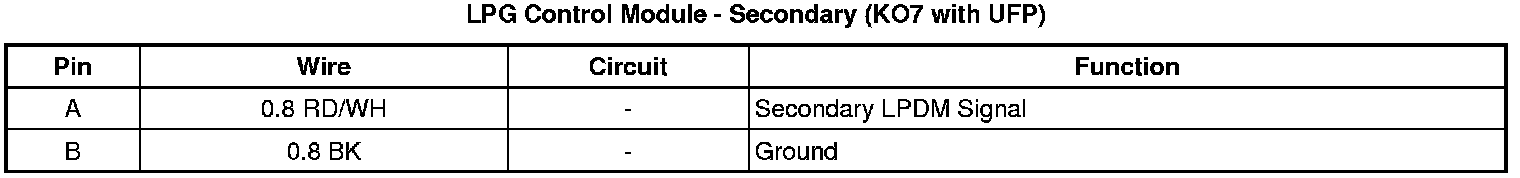

LPG Control Module - Secondary (KO7 with UFP)
