Front Differential Drive Pinion Gear Bearing Cup and Lubricant Dam Replacement




Front Differential Drive Pinion Gear Bearing Cup and Lubricant Dam Replacement

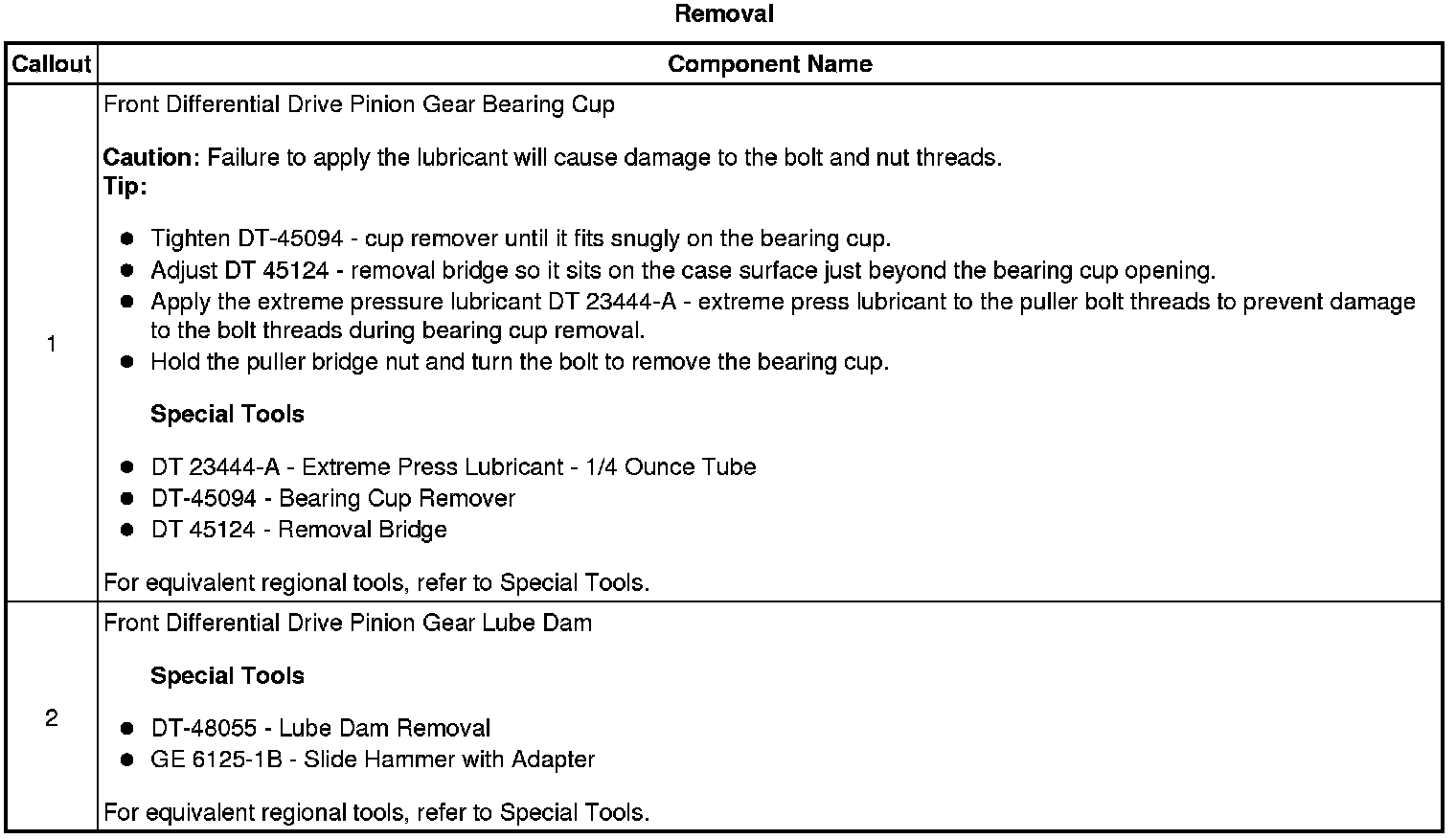

Removal

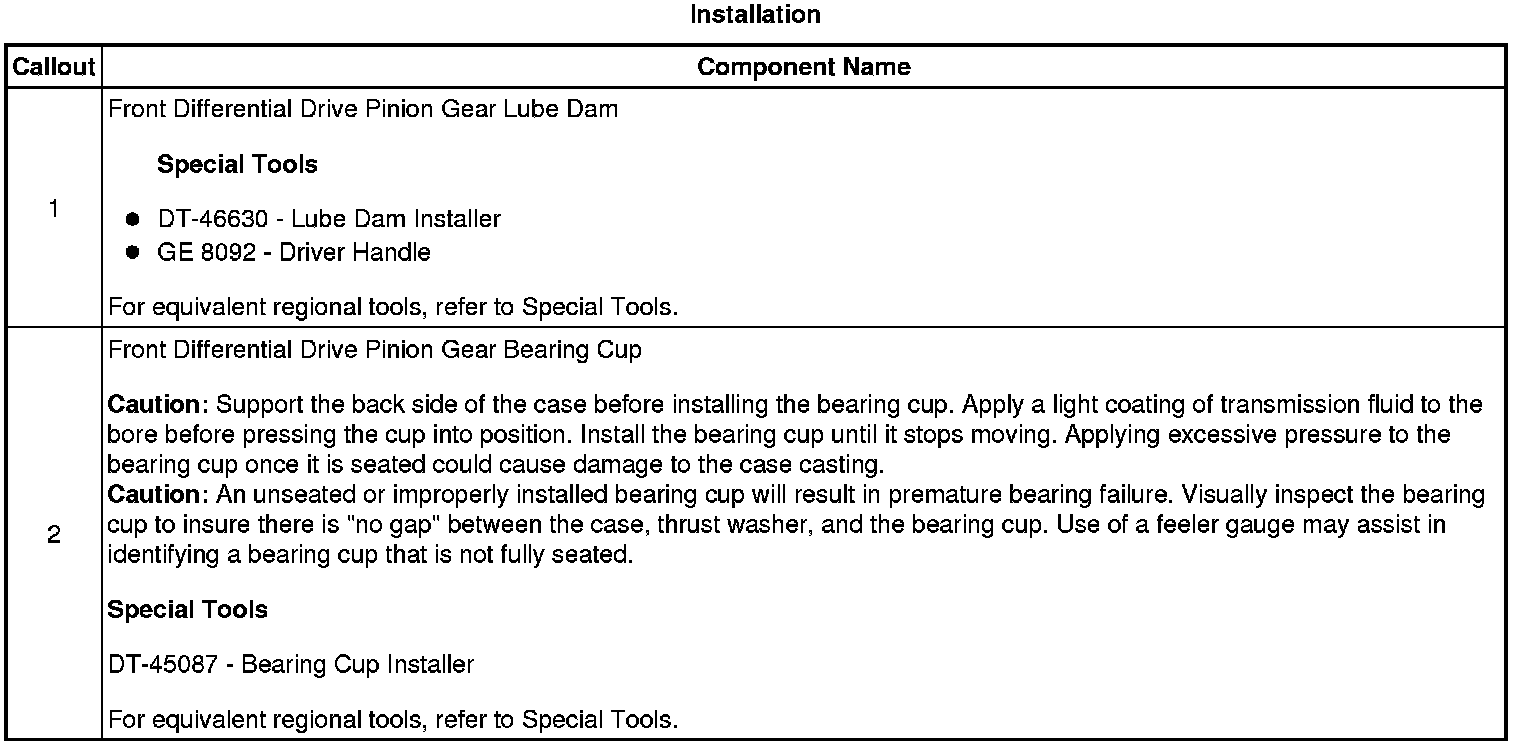

Installation
