6T30/6T40/6T45/6T50 - Automatic Transmission
>>
Repair Instructions
>>

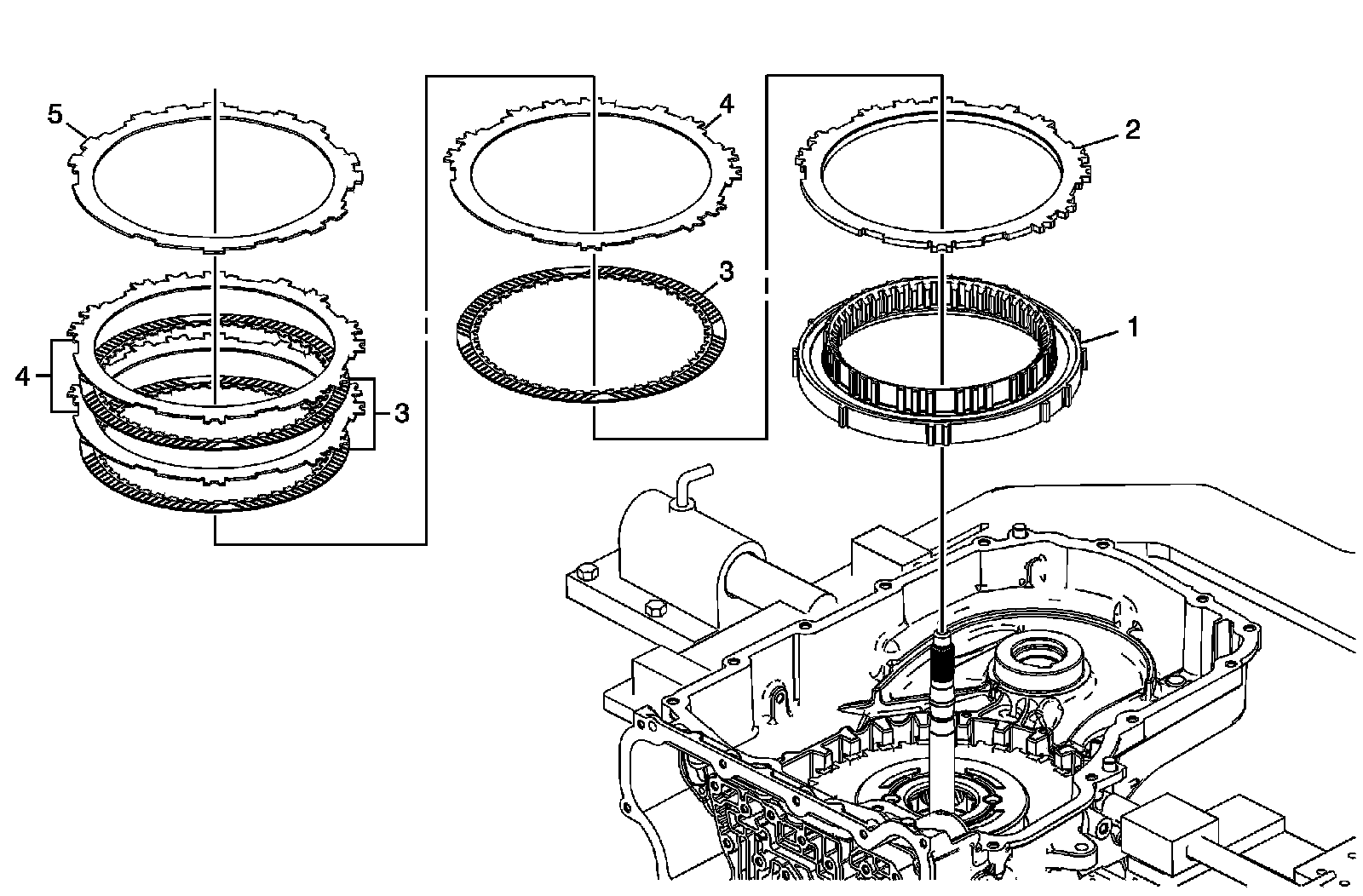

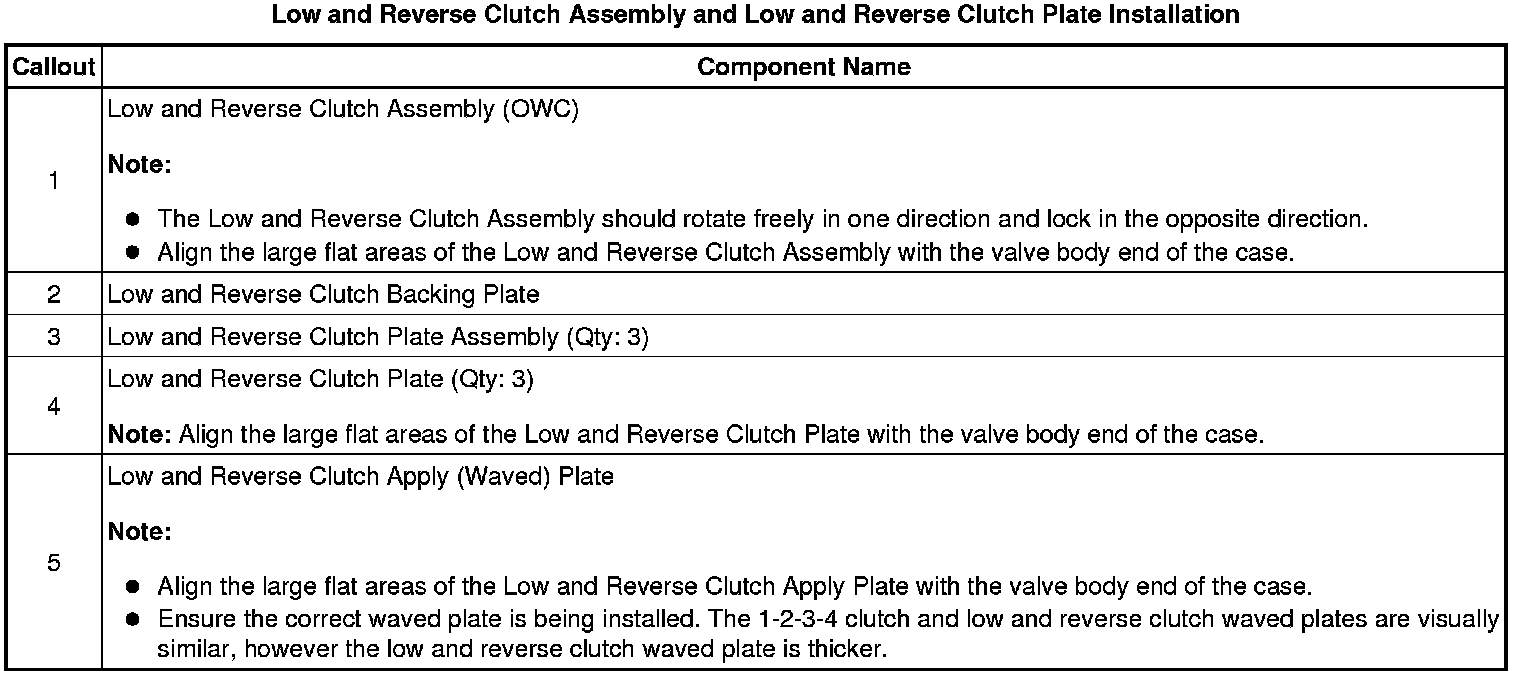

Low and Reverse Clutch Assembly and Low and Reverse Clutch Plate Installation
Low and Reverse Clutch Assembly and Low and Reverse Clutch Plate Installation
Low and Reverse Clutch Assembly and Low and Reverse Clutch Plate Installation
