Manual Shift Shaft and Seal Replacement

Manual Shift Shaft and Seal Replacement

Special Tools

* J 45201 - Cooler Line Seal Remover

* J-46626 - Seal Installer

Removal Procedure

1. Remove the battery tray. Refer to Battery Tray Replacement Battery Tray Replacement.

2. Remove the manual shaft and position switch assembly. Refer to Manual Shift Detent Lever with Shaft Position Switch Assembly Replacement 6T30/6T40/6T45/6T50 - Automatic Transmission.

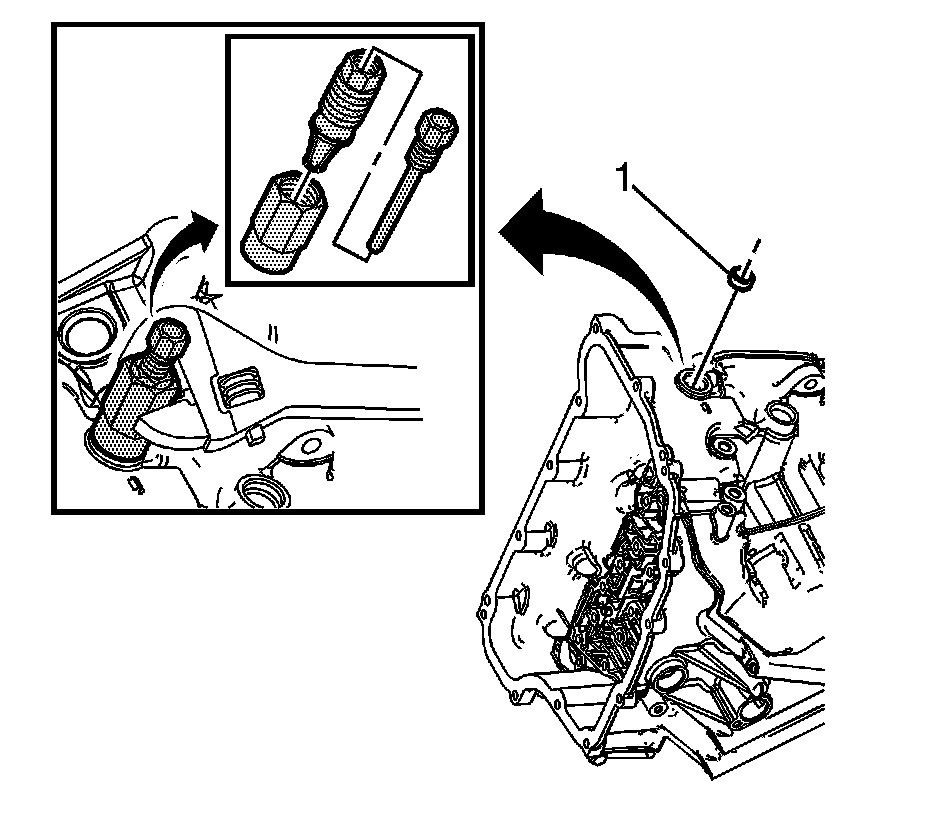

3. Remove the manual shaft seal (1) using J 45201 - Cooler Line Seal Remover.

Installation Procedure

1. Install the manual shaft and position switch assembly. Refer to Manual Shift Detent Lever with Shaft Position Switch Assembly Replacement 6T30/6T40/6T45/6T50 - Automatic Transmission.

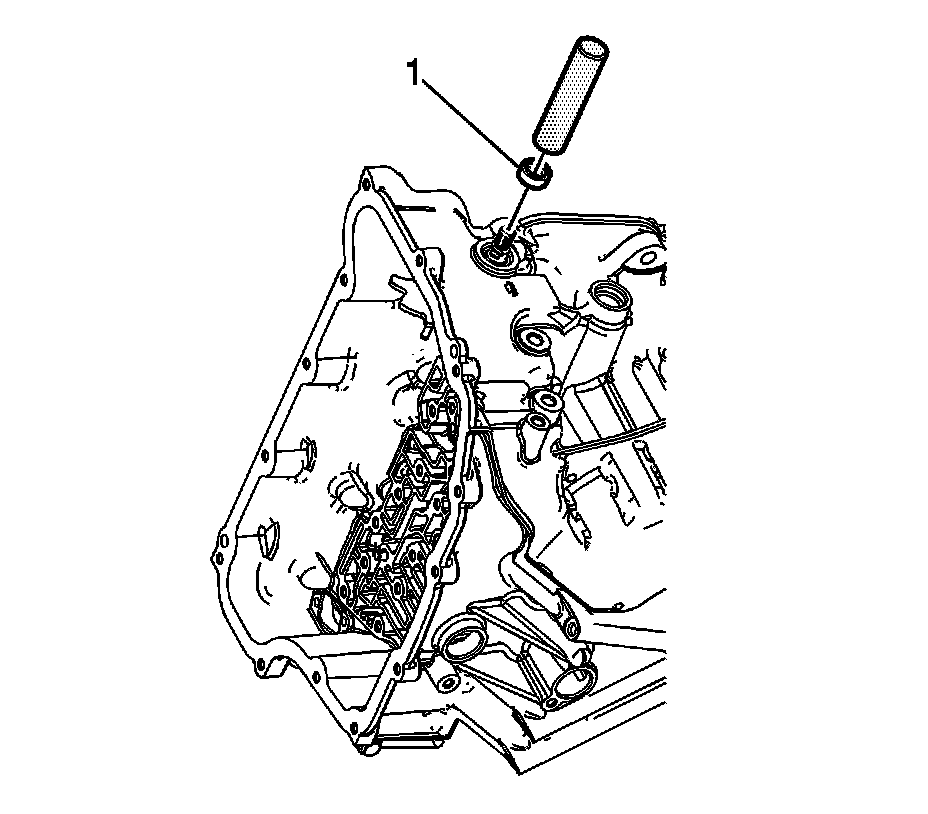

2. Install the manual shaft seal (1) using J-46626 - Seal Installer.

3. Install the battery tray. Refer to Battery Tray Replacement Battery Tray Replacement.
