Wiring Harness: Diagrams

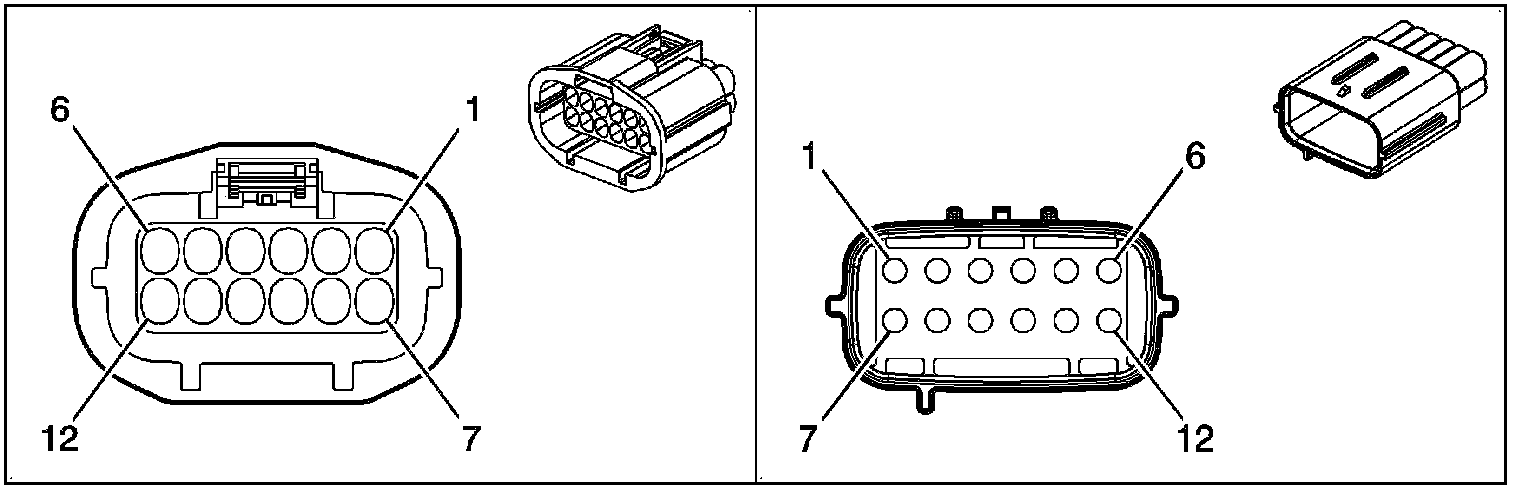

Inline Harness Connector End Views

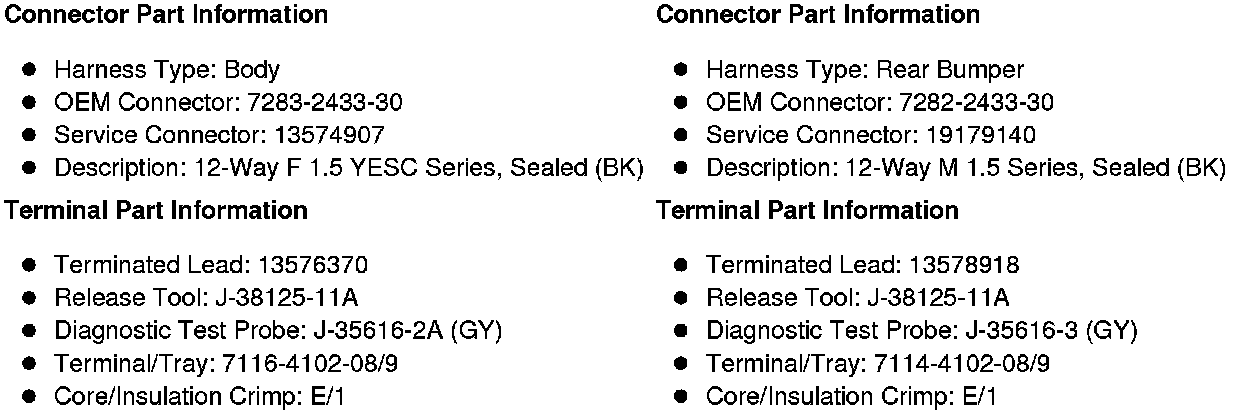

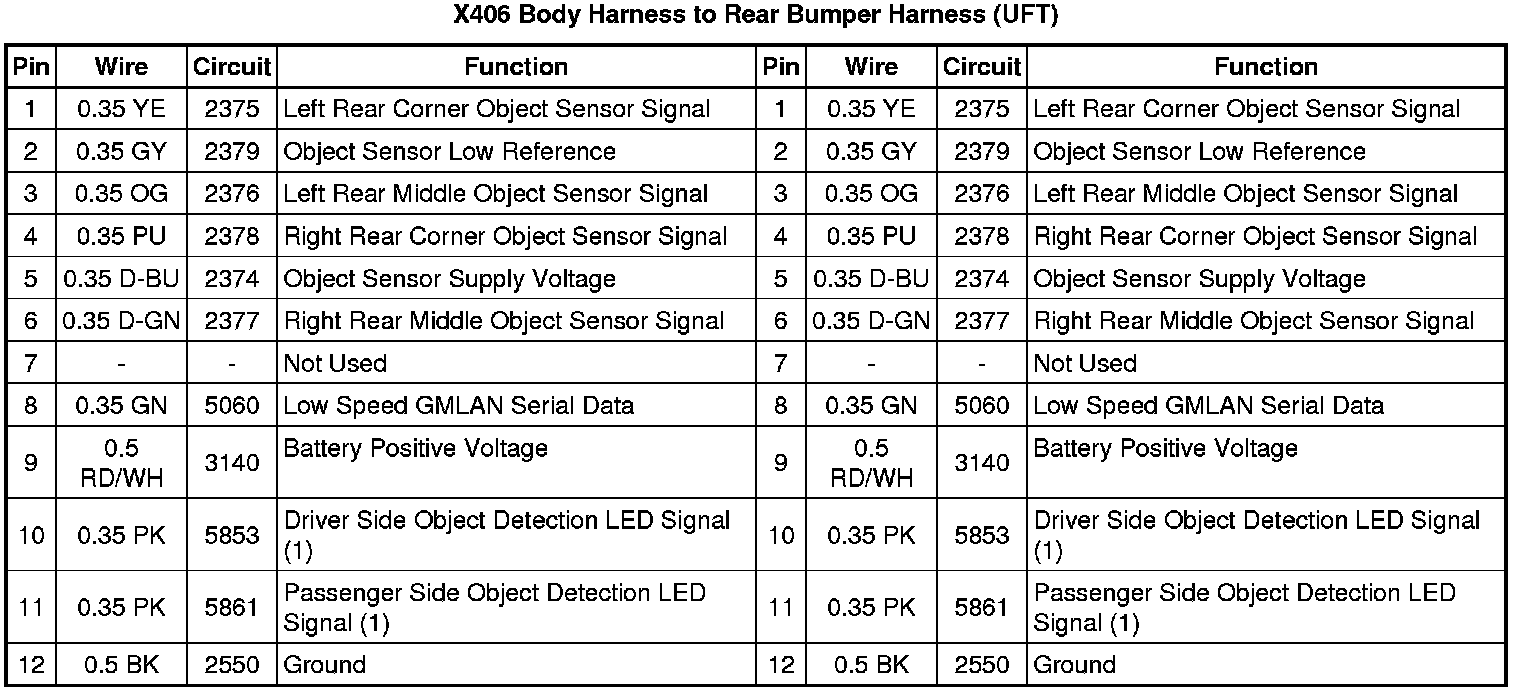

X406 Body Harness to Rear Bumper Harness (UFT)
