Ambient Light/Sunload Sensor (C68)

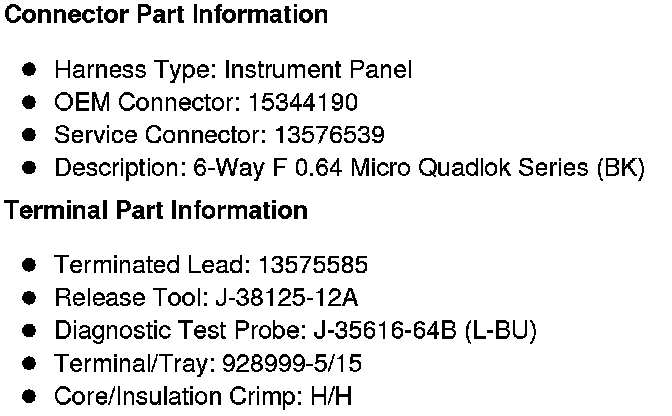

Component Connector End Views

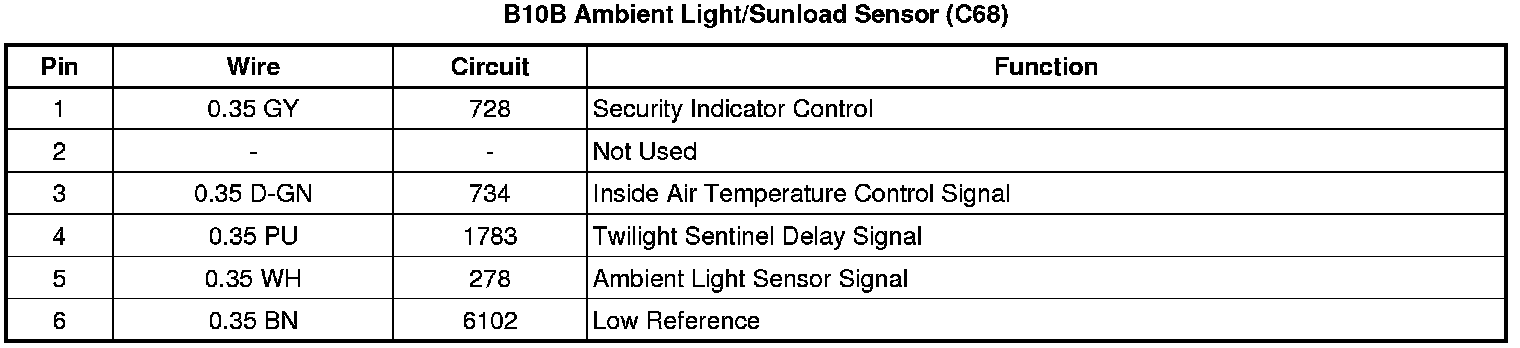

B10B Ambient Light/Sunload Sensor (C68)
