Home >> Chevy Truck >> 2013 >> Equinox AWD L4-2.4L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Refrigerant Pressure Sensor / Switch >> Service and Repair

Refrigerant Pressure Sensor / Switch: Service and Repair

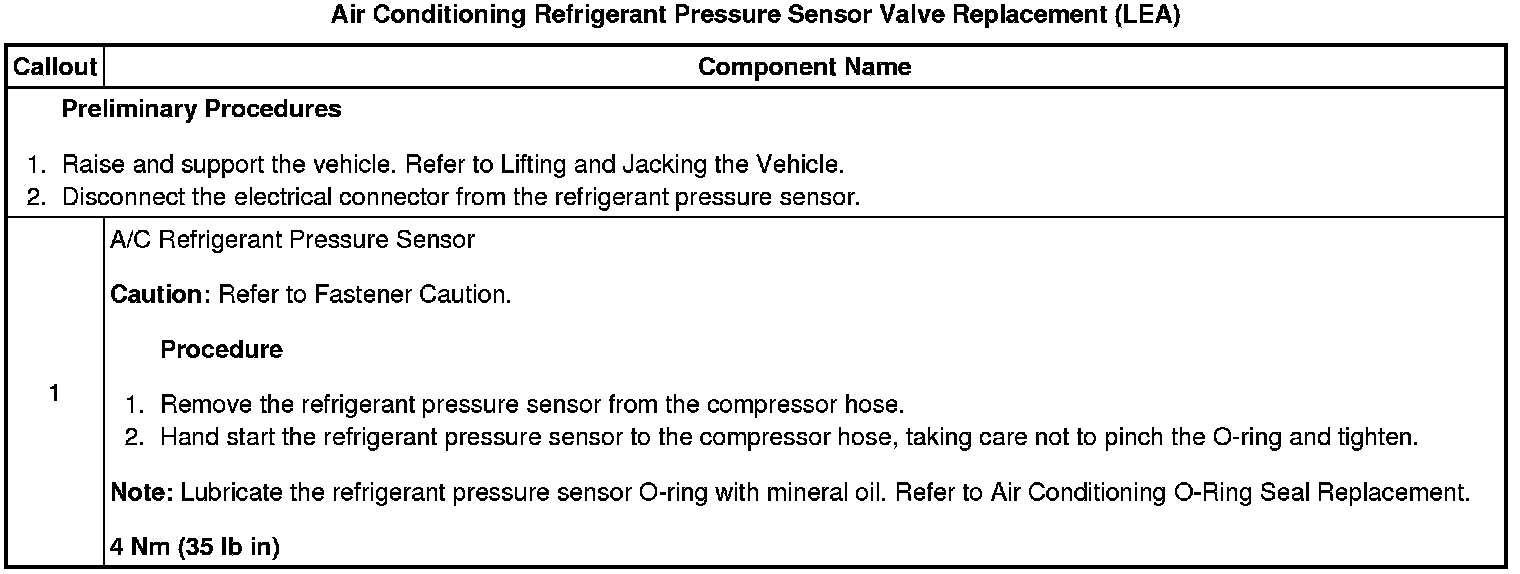

Air Conditioning Refrigerant Pressure Sensor Valve Replacement (LEA)
