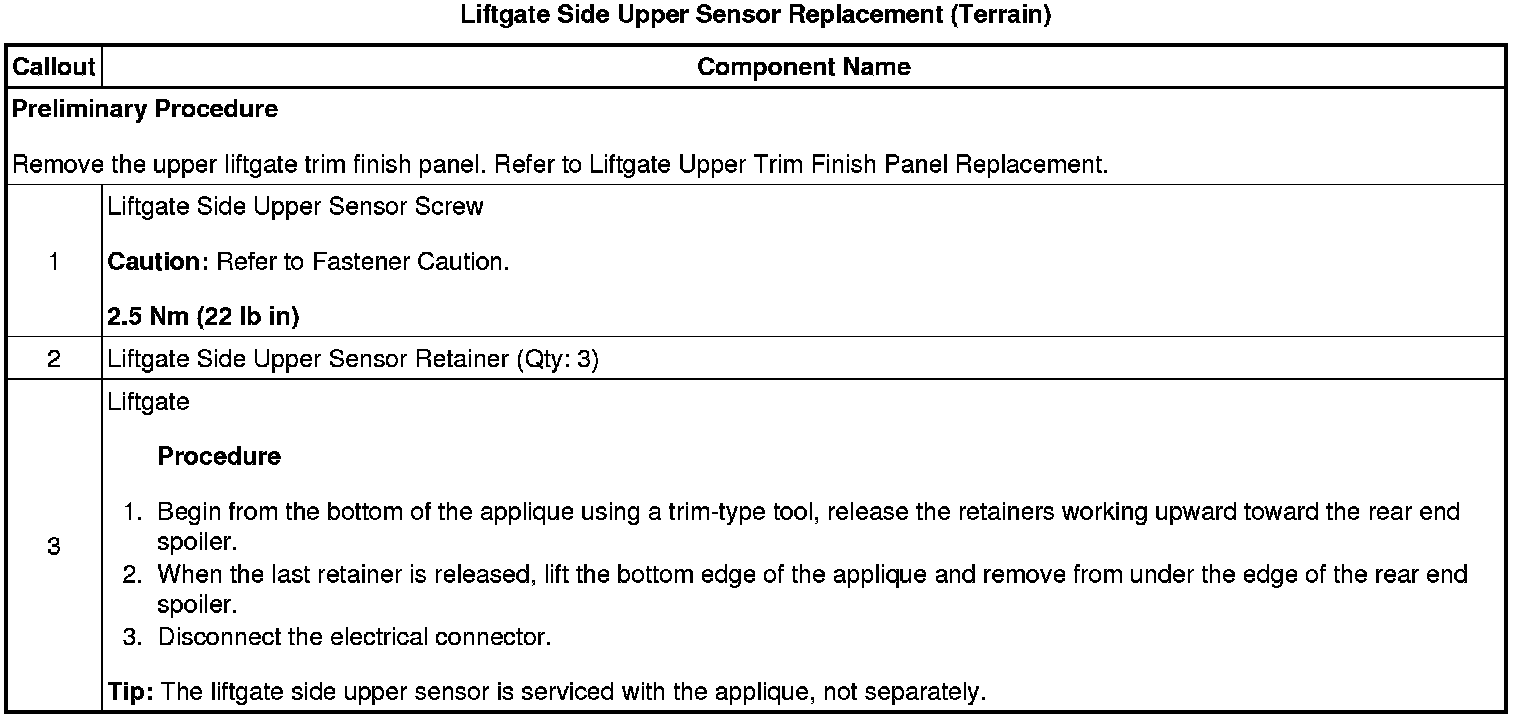

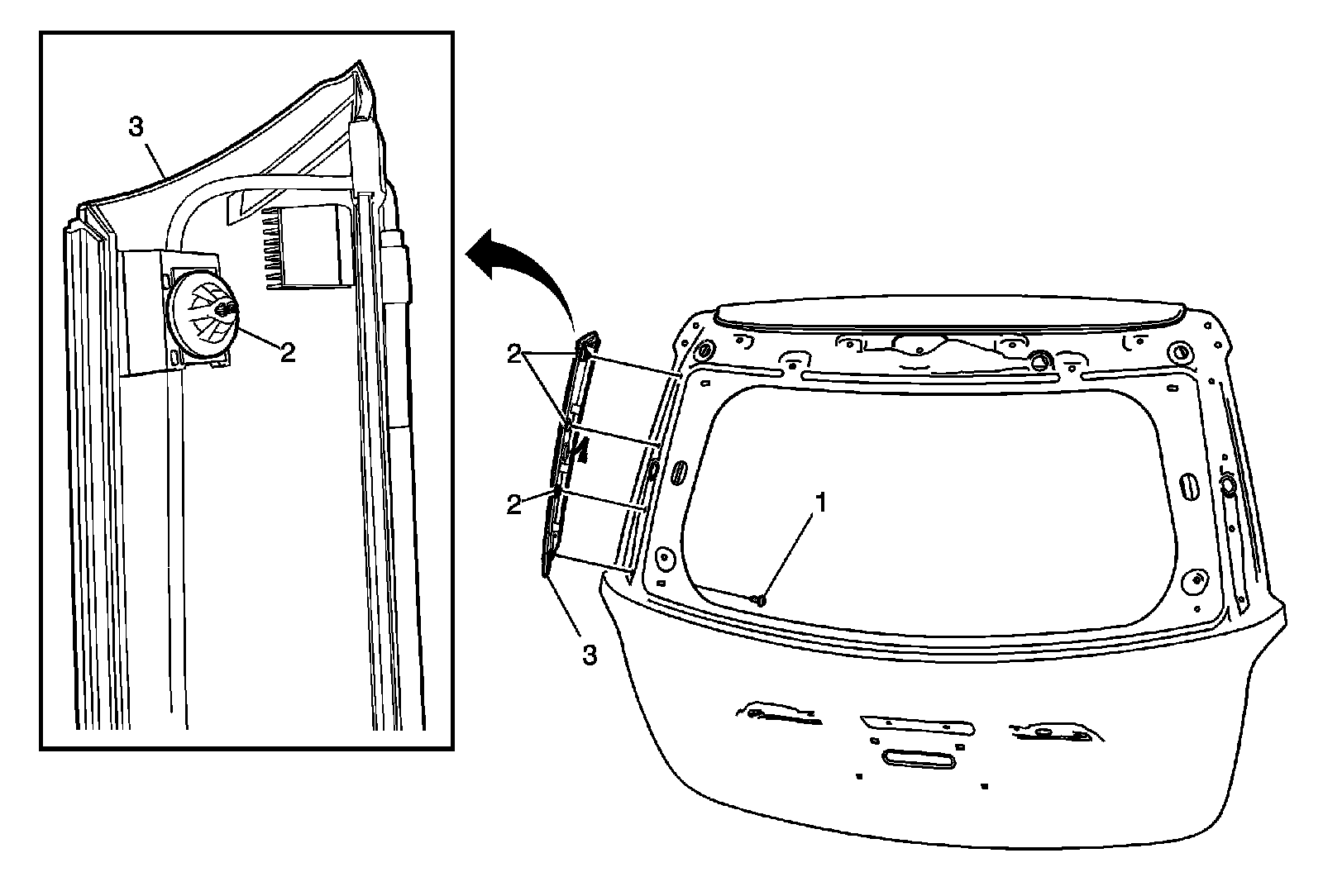

Liftgate Side Upper Sensor Replacement (Terrain)
Liftgate Side Upper Sensor Replacement (Terrain)
Liftgate Side Upper Sensor Replacement (Terrain)
