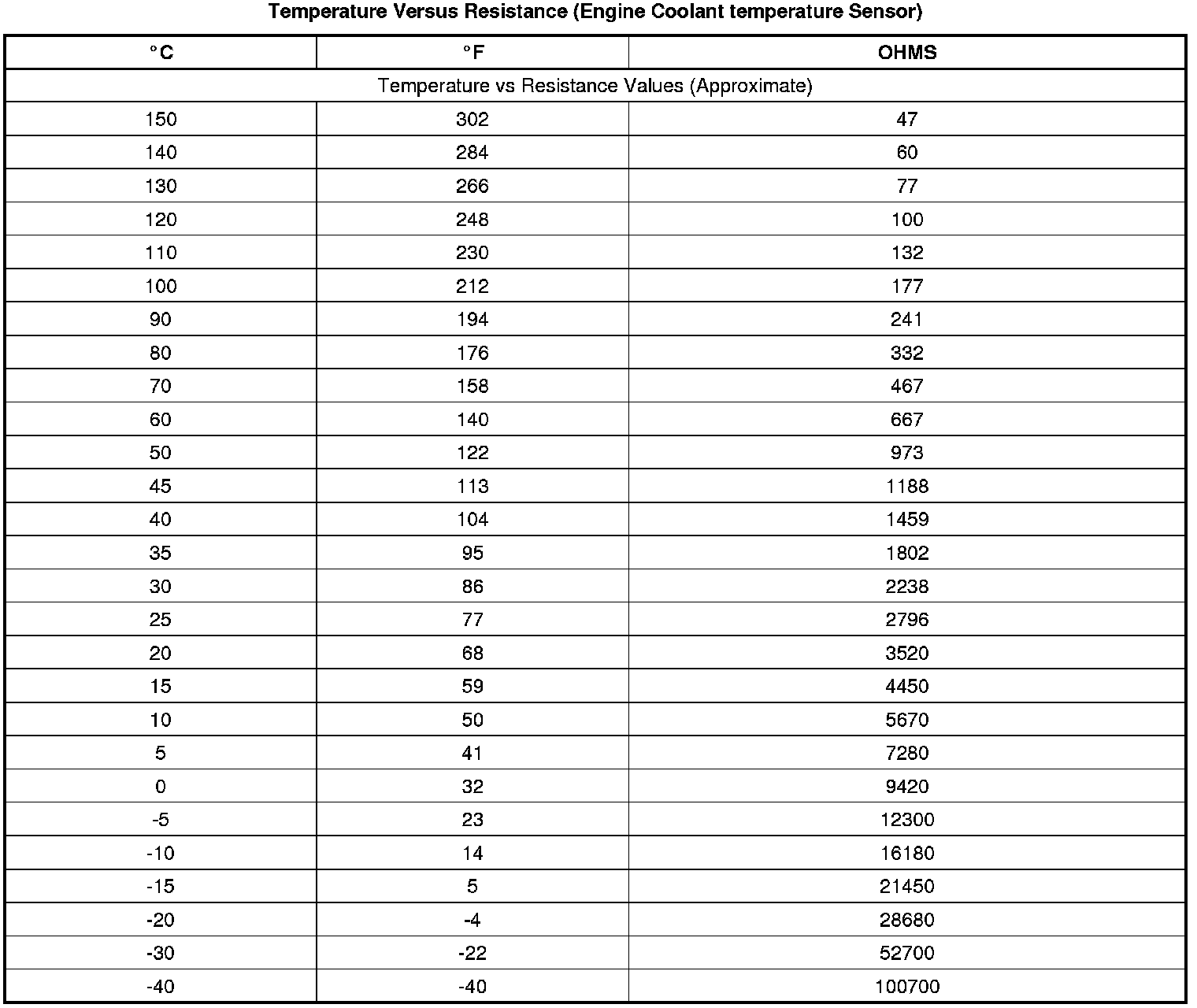

Temperature Versus Resistance (Engine Coolant temperature Sensor)
Temperature Versus Resistance (Engine Coolant temperature Sensor)
Temperature Versus Resistance (Engine Coolant temperature Sensor)
