Instrument Panel Harness Routing- Rear

Harness Routing Views

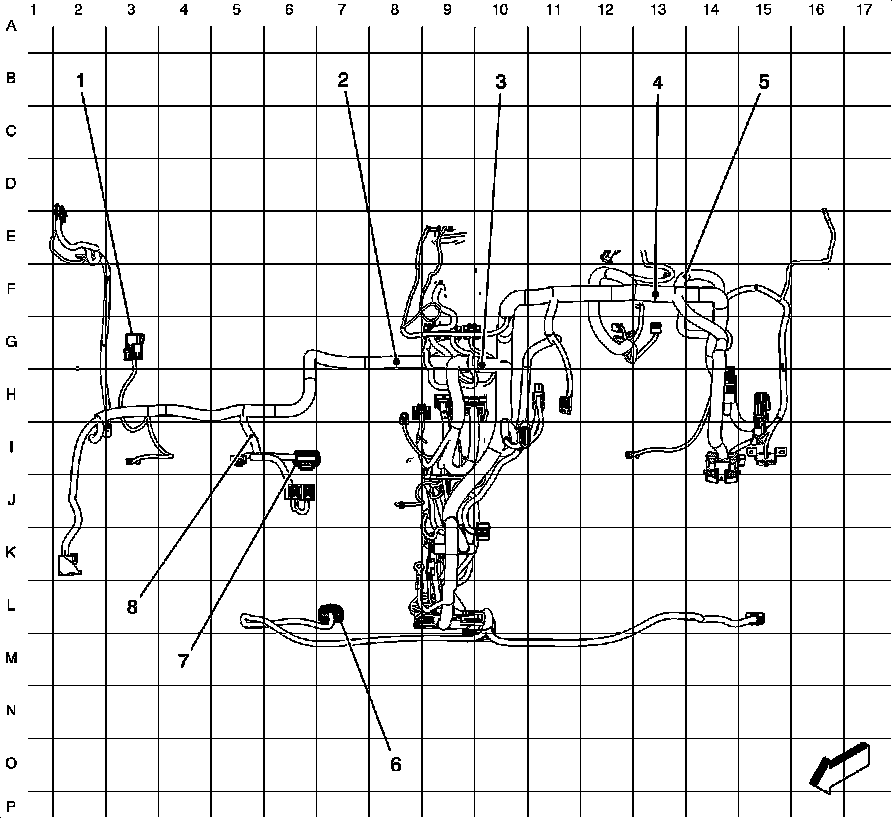

Instrument Panel Harness Routing- Rear





1 - X203

2 - J203

3 - J206

4 - J201 (LTZ or SLT)

5 - J205

6 - X309 (UWG)

7 - X213

8 - J202 (C68)
