Home >> Chevy Truck >> 2013 >> Equinox AWD L4-2.4L >> Repair and Diagnosis >> Lighting and Horns >> Tail Lamp >> Service and Repair >> Tail Lamp Applique Replacement (Terrain)

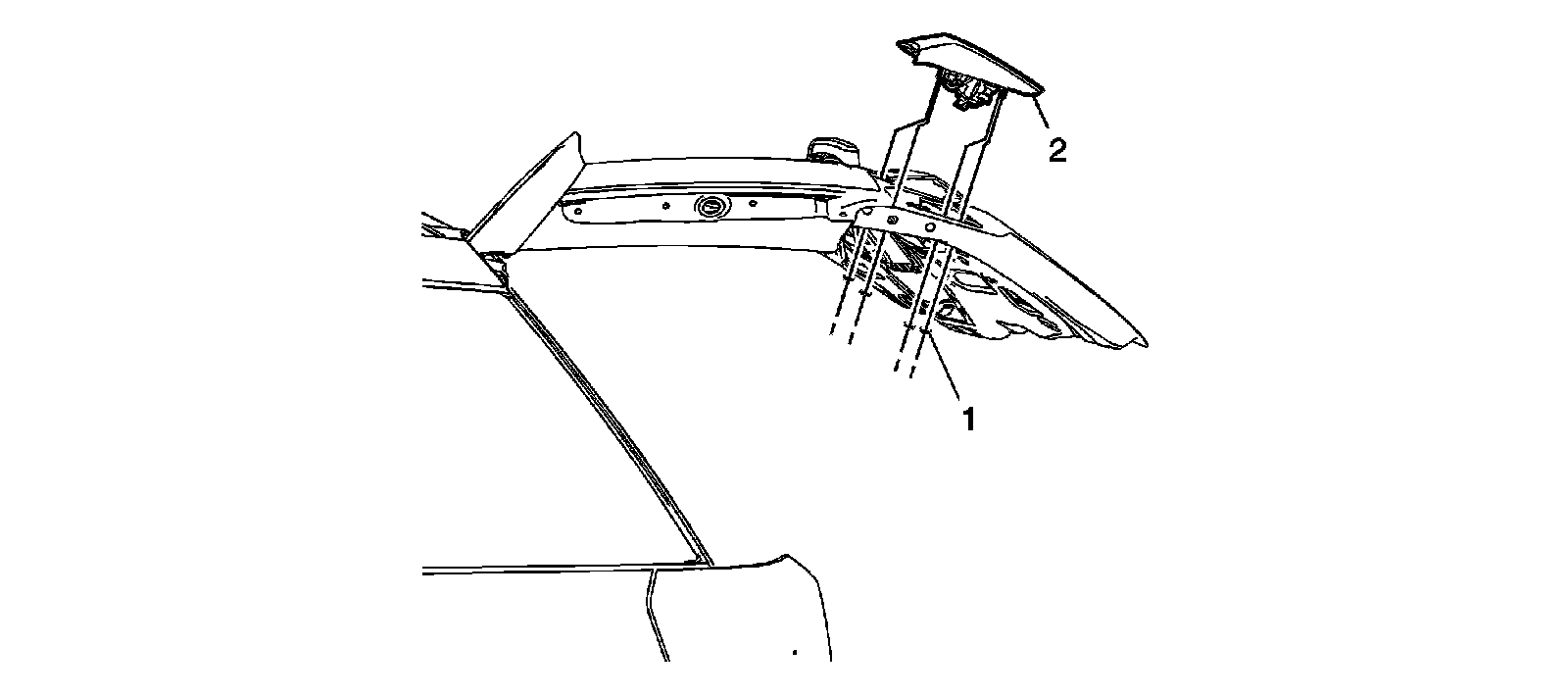

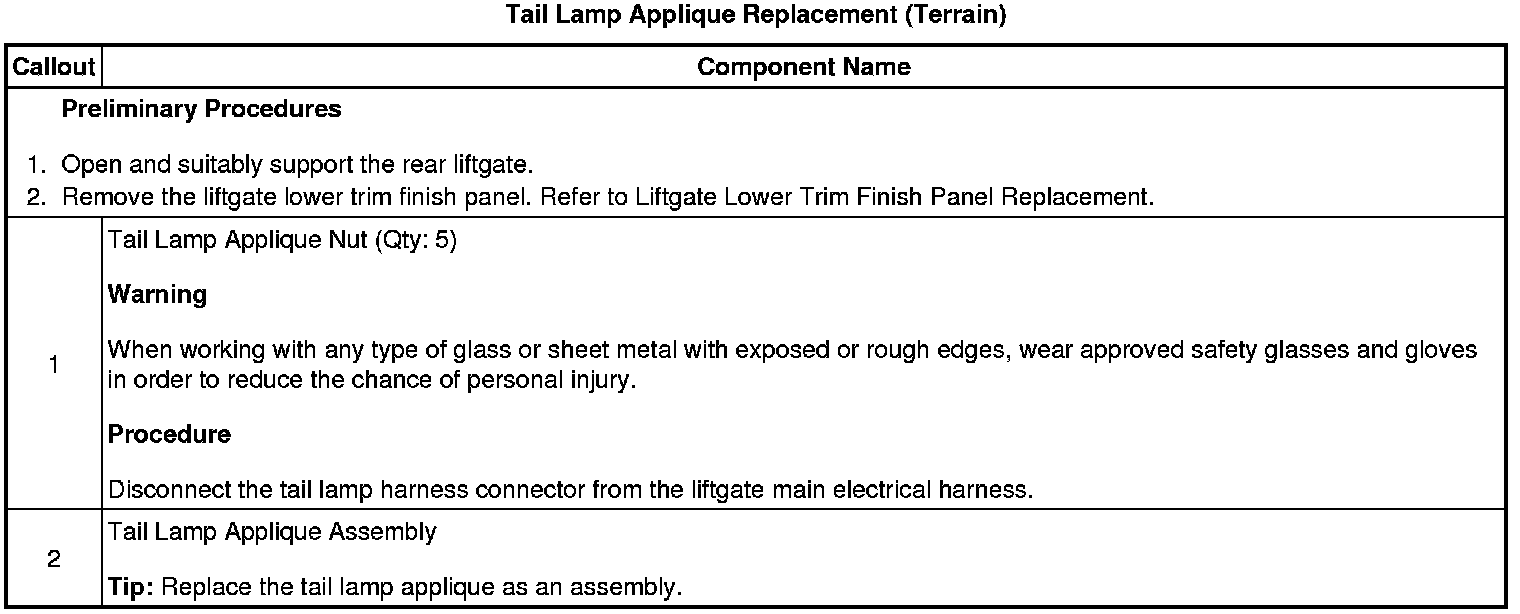

Tail Lamp Applique Replacement (Terrain)




Tail Lamp Applique Replacement (Terrain)
