Tail/Stop and Turn Signal Lamp - Left

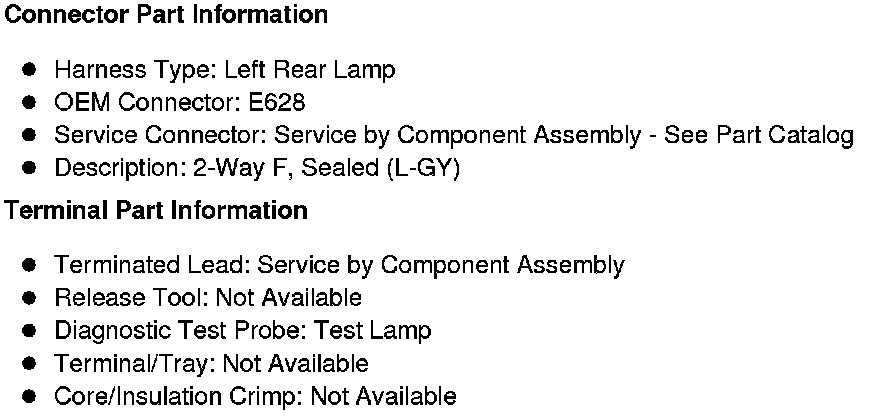

Component Connector End Views

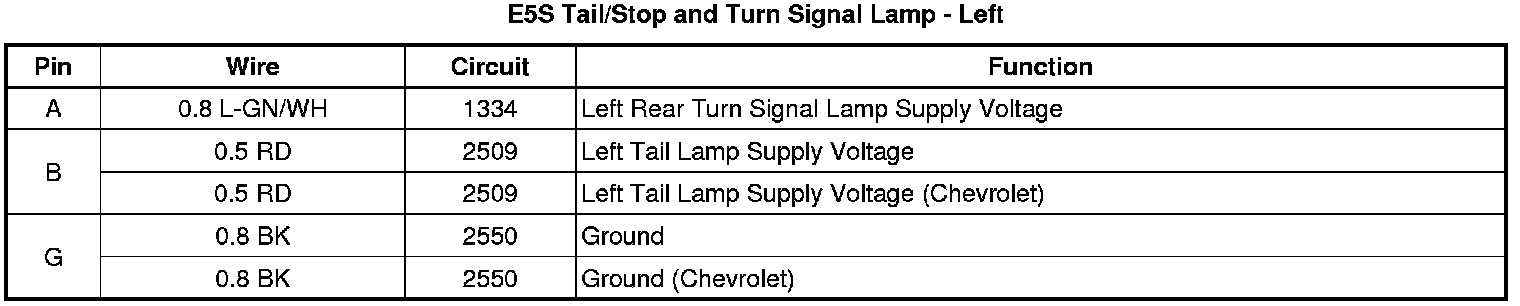

E5S Tail/Stop and Turn Signal Lamp - Left
