Timing Cover: Specifications

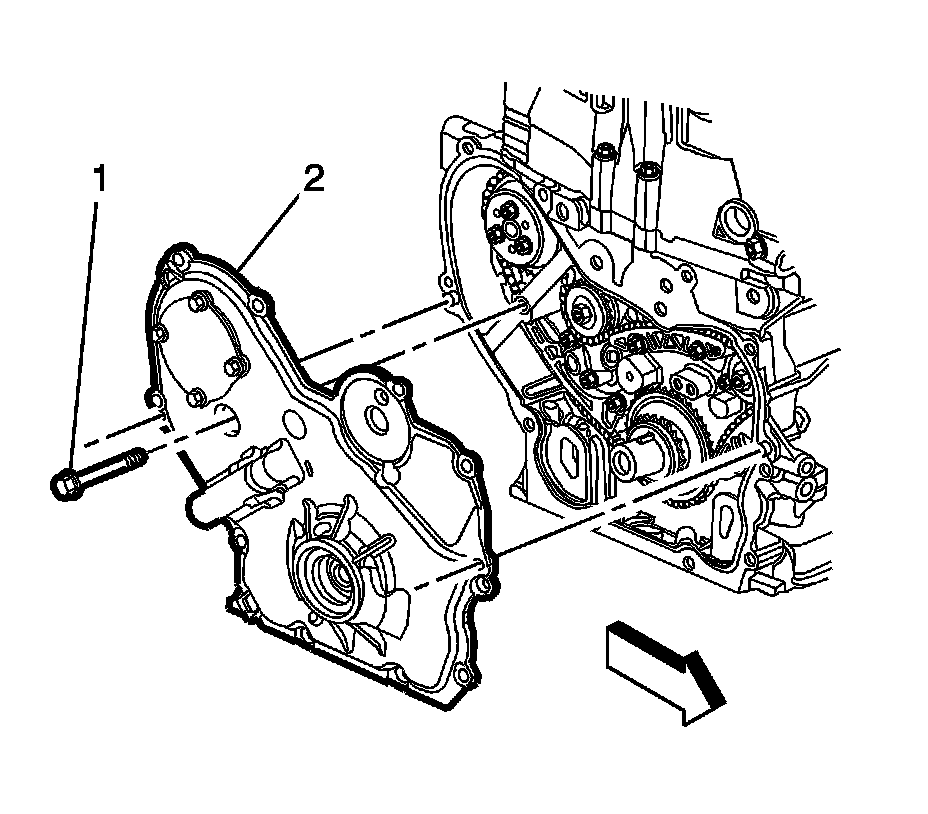

Install the engine front cover bolts (1) and tighten to 25 Nm (18 lb ft).

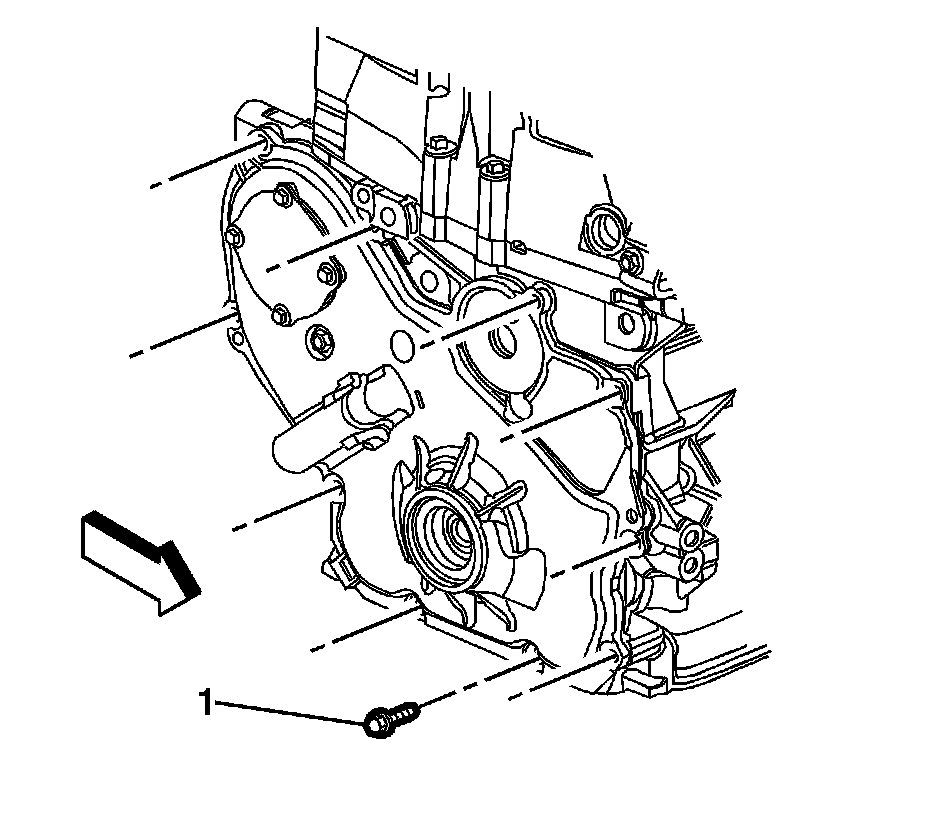

Install the engine front cover to water pump bolt (1) and tighten to 25 Nm (18 lb ft).
