Interior Lights Dimming Schematics




Interior Lights Dimming Schematics

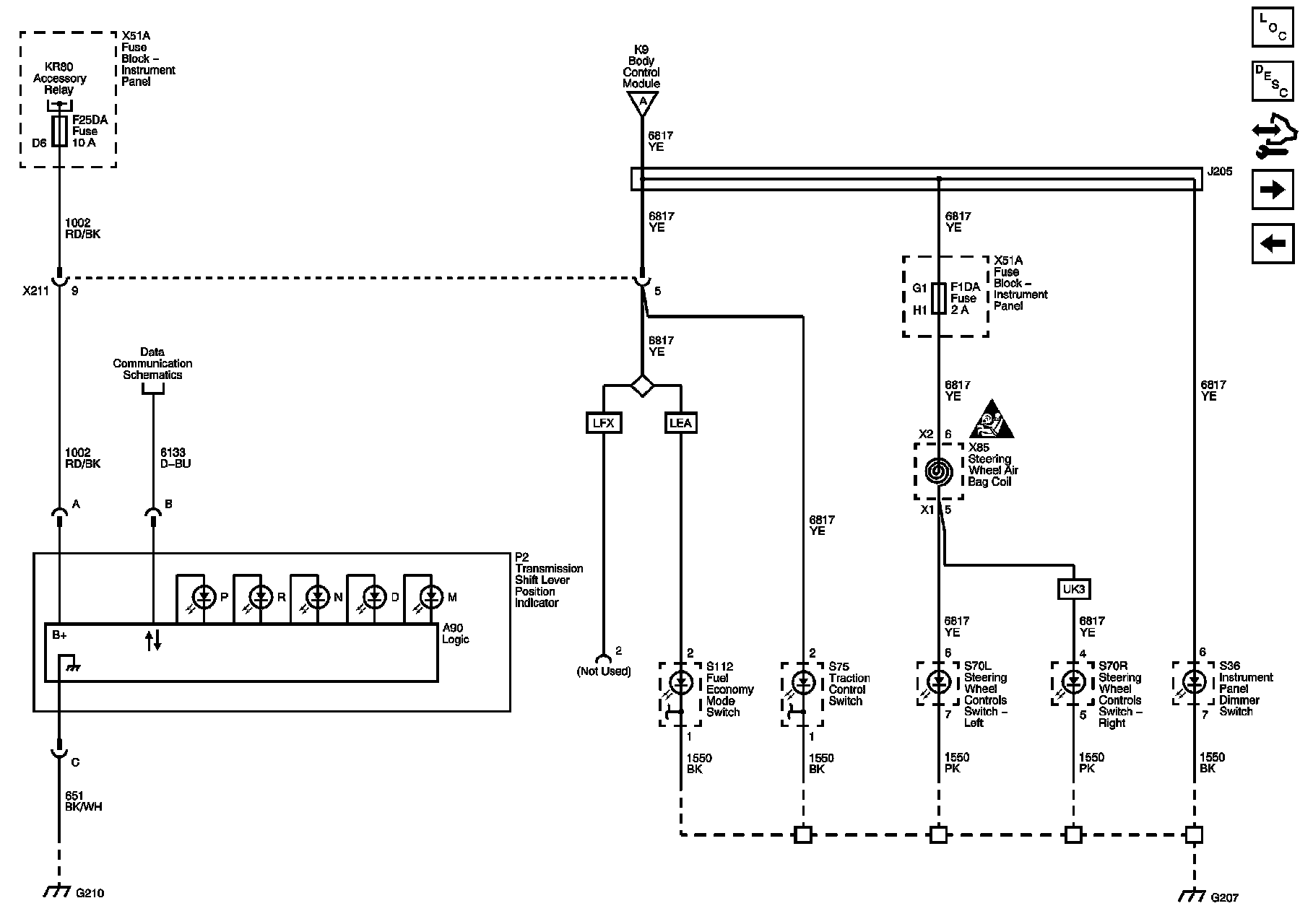

Dimming Controls, and Switch Illumination (1 of 2)






Shift Lever Position Indicator, and Switch Illumination (2 of 2)

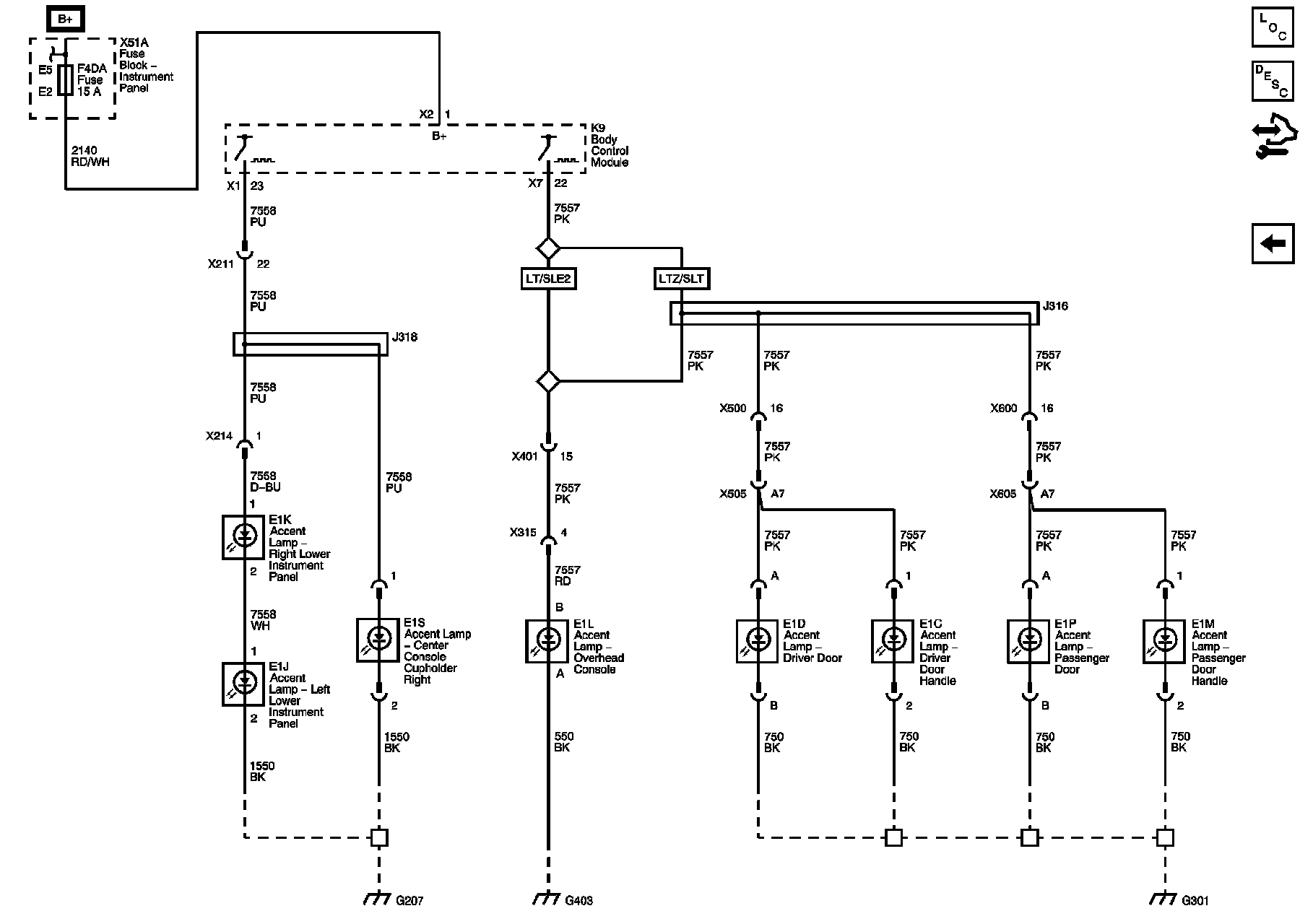

Accent Lighting
