Home >> Chevy Truck >> 2013 >> Equinox AWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Exterior Lights Schematics

Exterior Lights Schematics




Exterior Lights Schematics

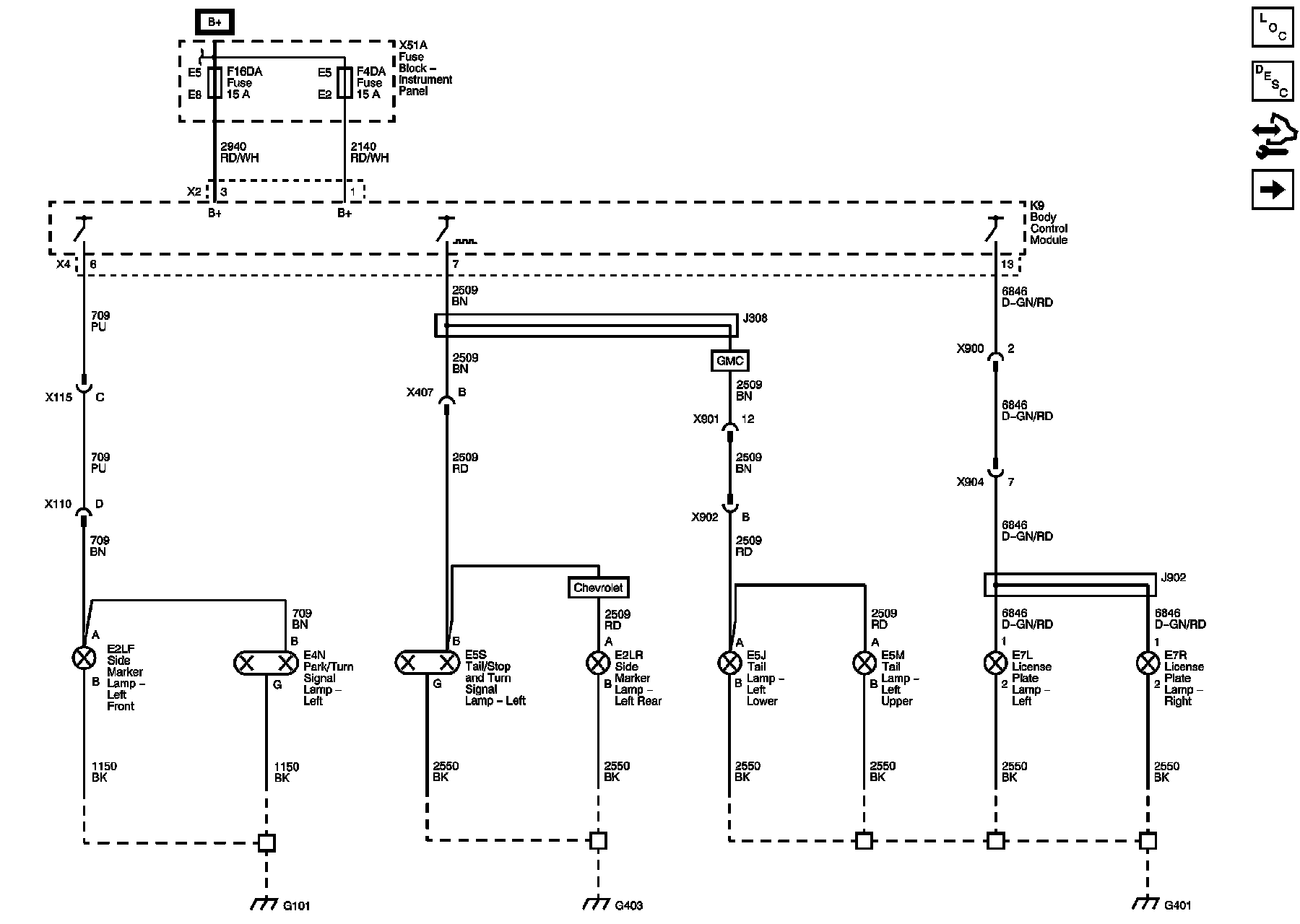

Left Park and License Lamps






Right Park Lamps

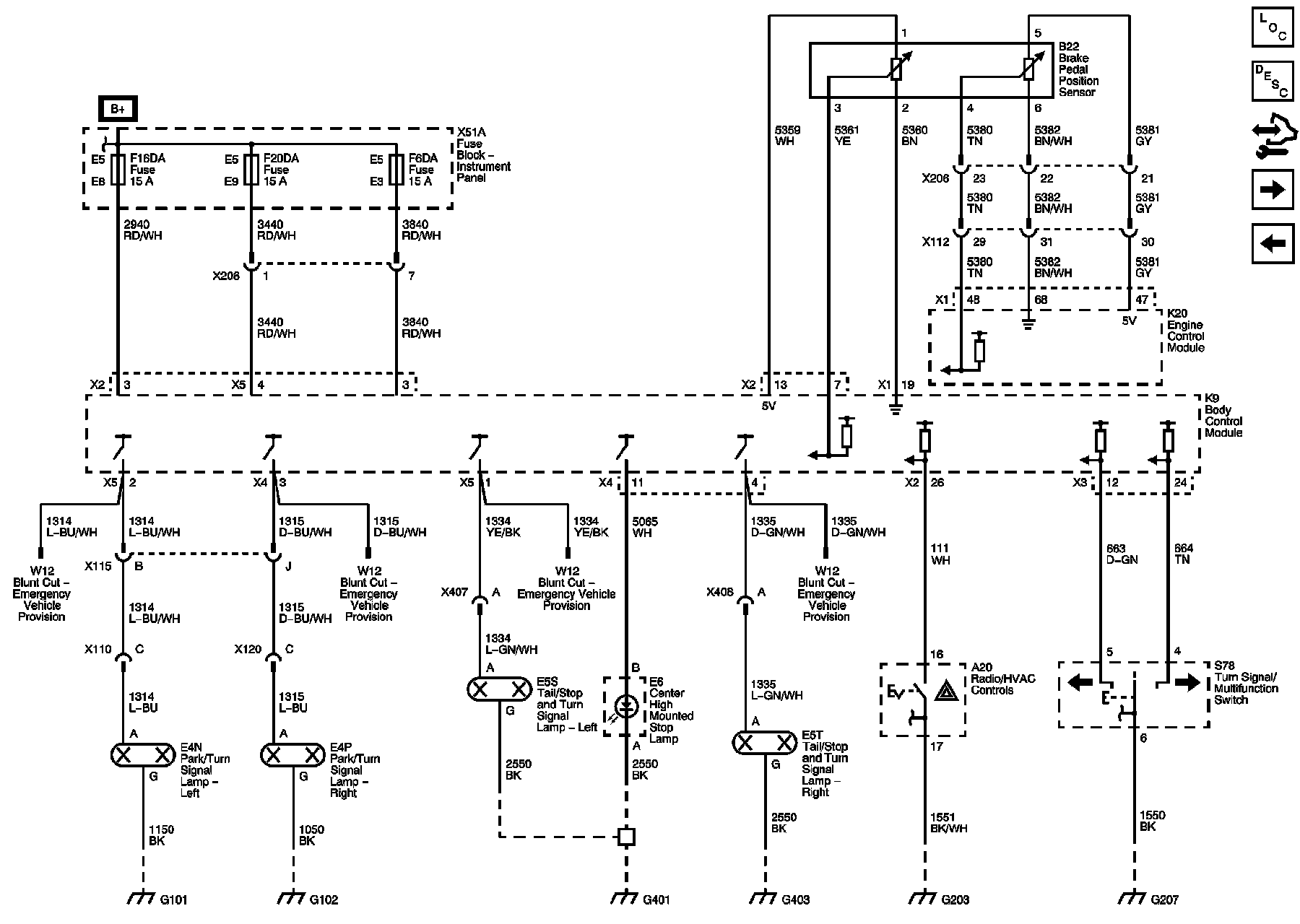

Turn Signals and Stop Lamps

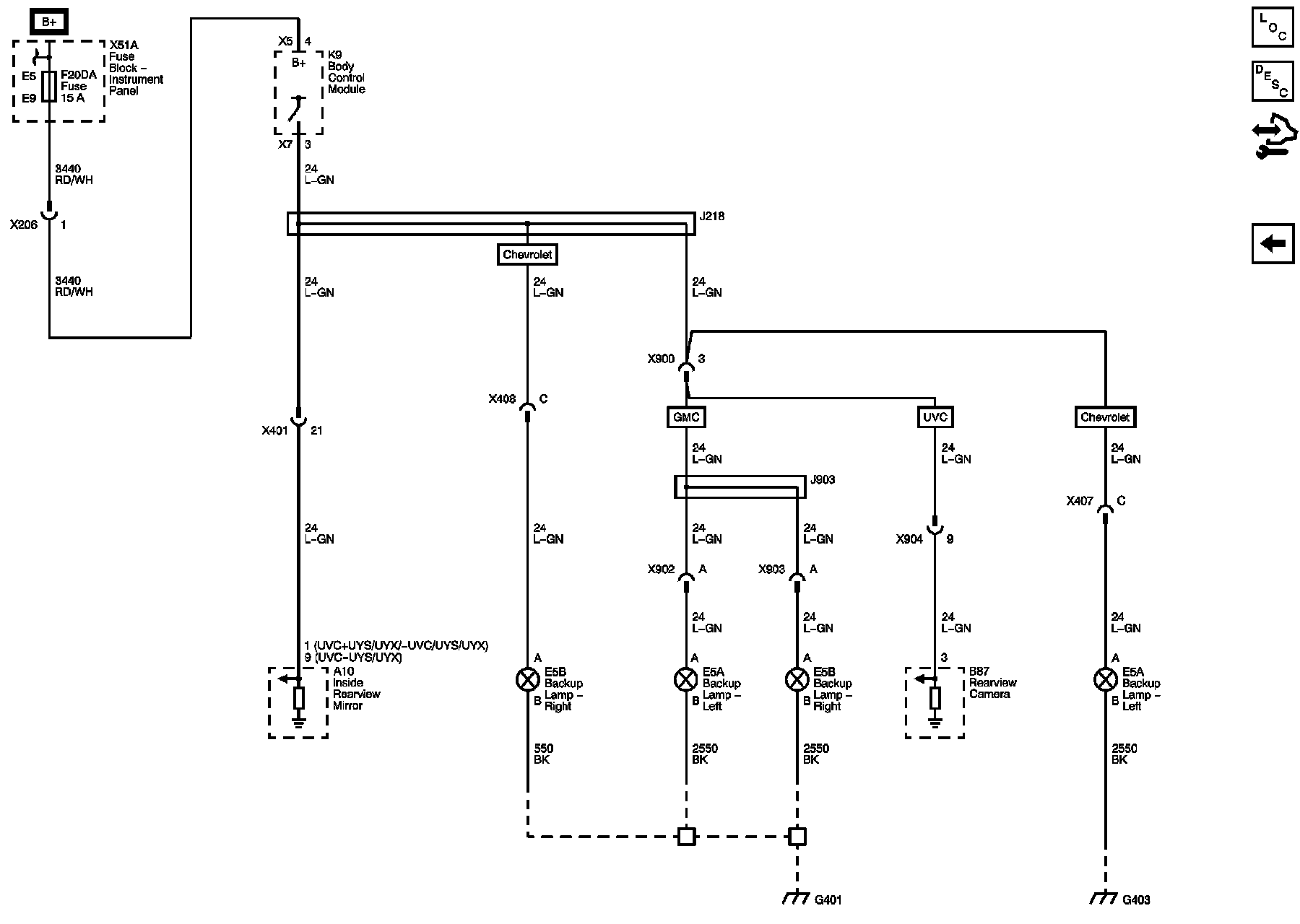

Backup Lamps
