HVAC - Automatic




HVAC Schematics

A/C Compressor Controls (C68)

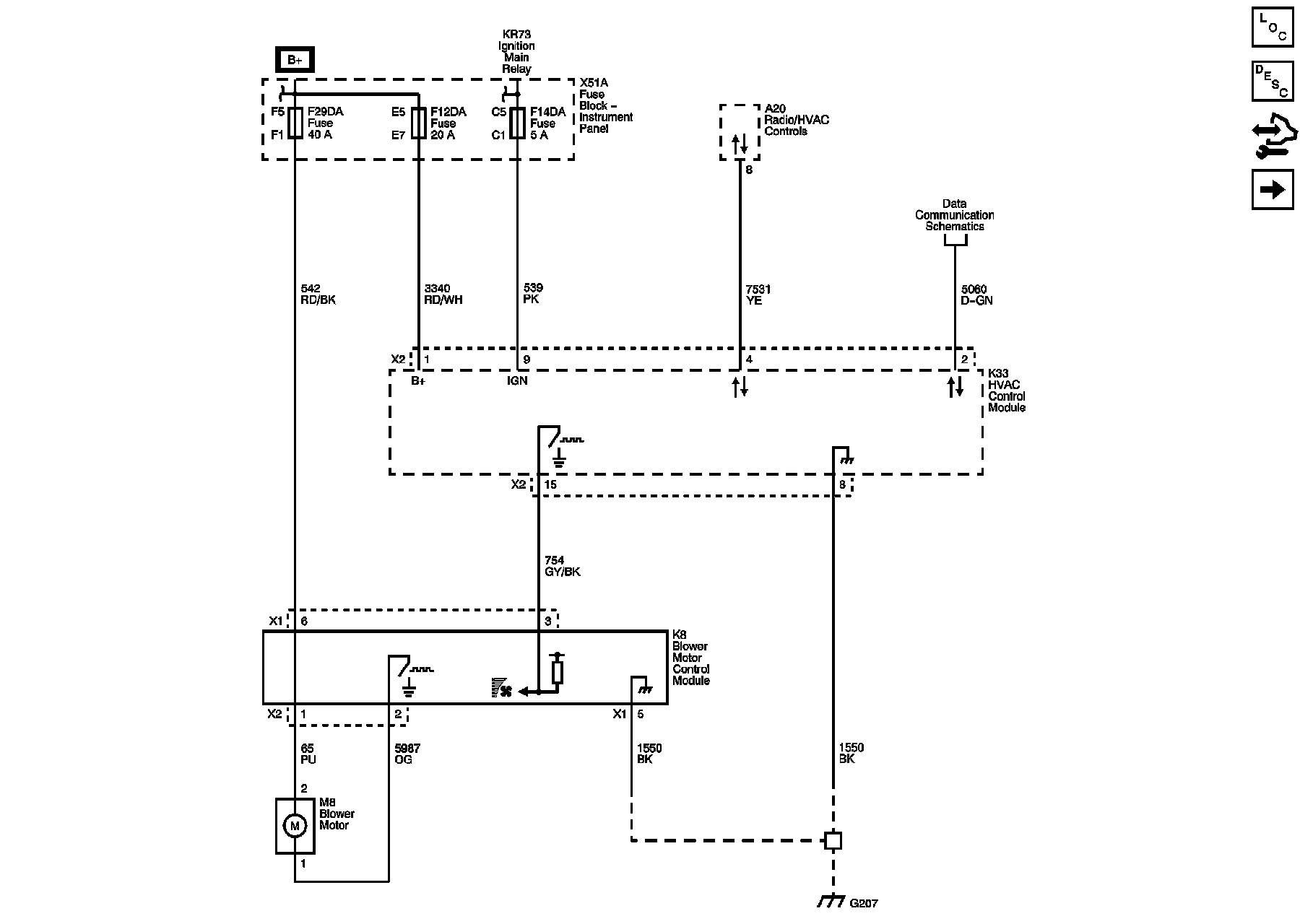

Sensors and Blower Motor (C68)

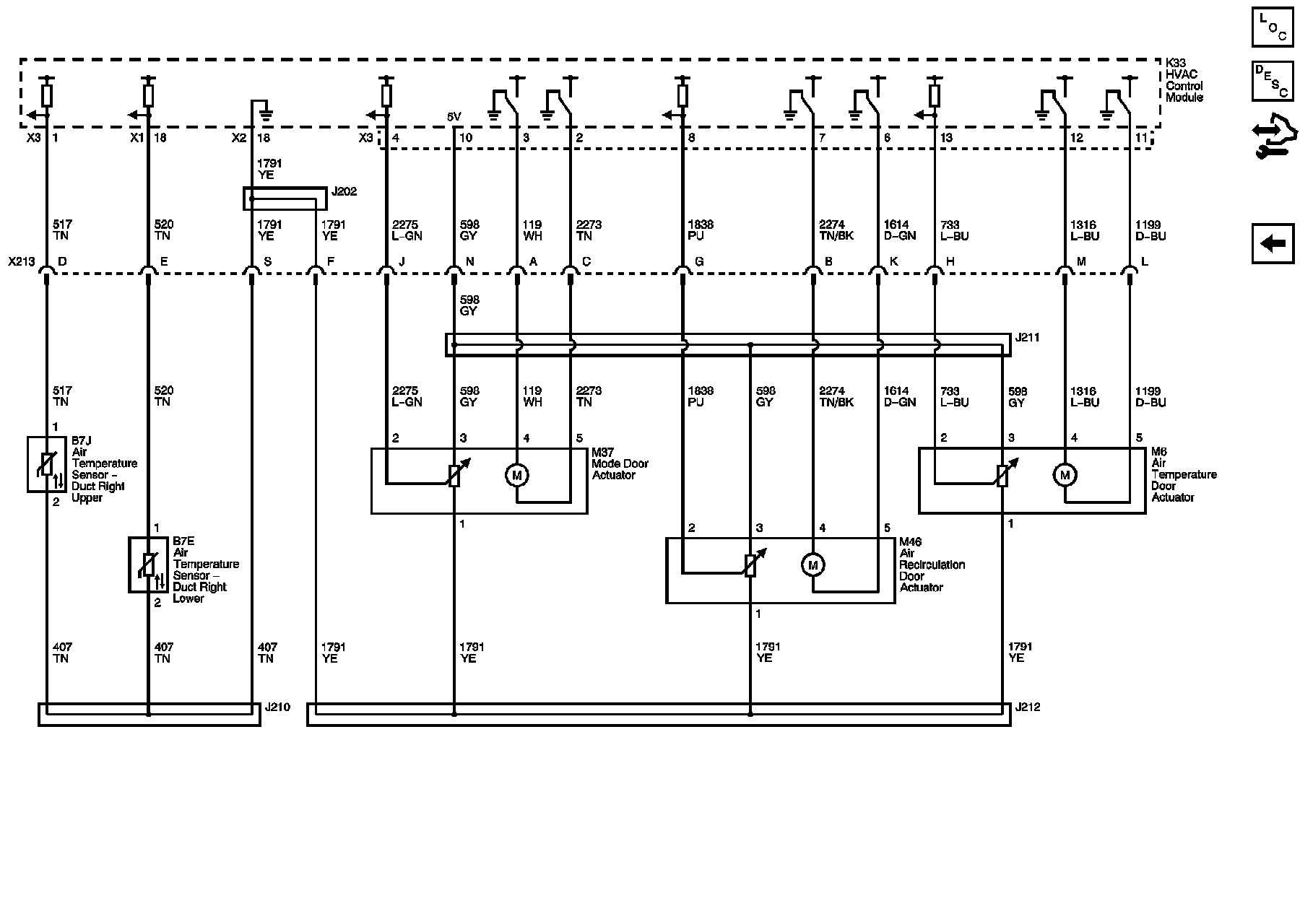

Actuators (C68)
