Wheel Speed Sensor - Right Front

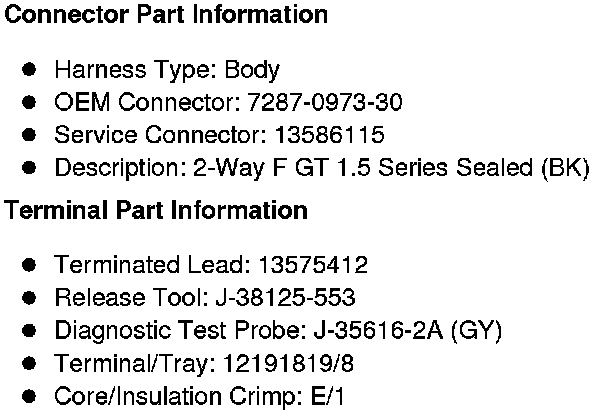

Component Connector End Views

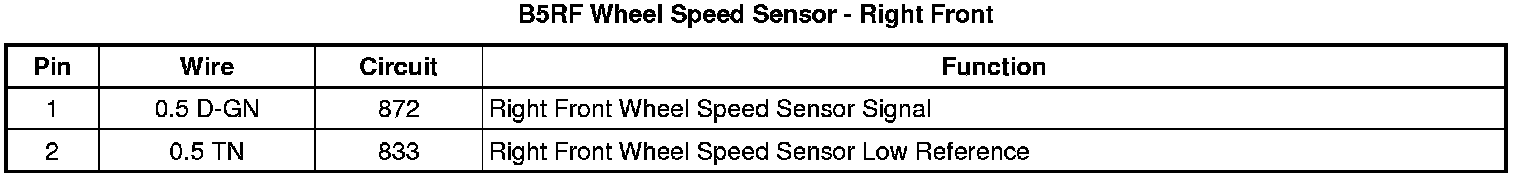

B5RF Wheel Speed Sensor - Right Front
