Side Object Sensor Module - Right (UFT)
Side Object Sensor Module - Right (UFT)
Component Connector End Views

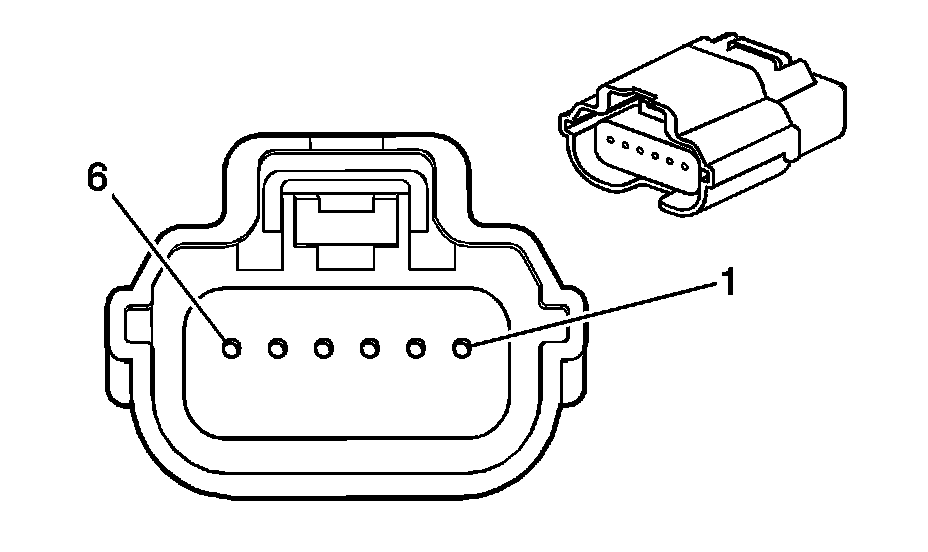

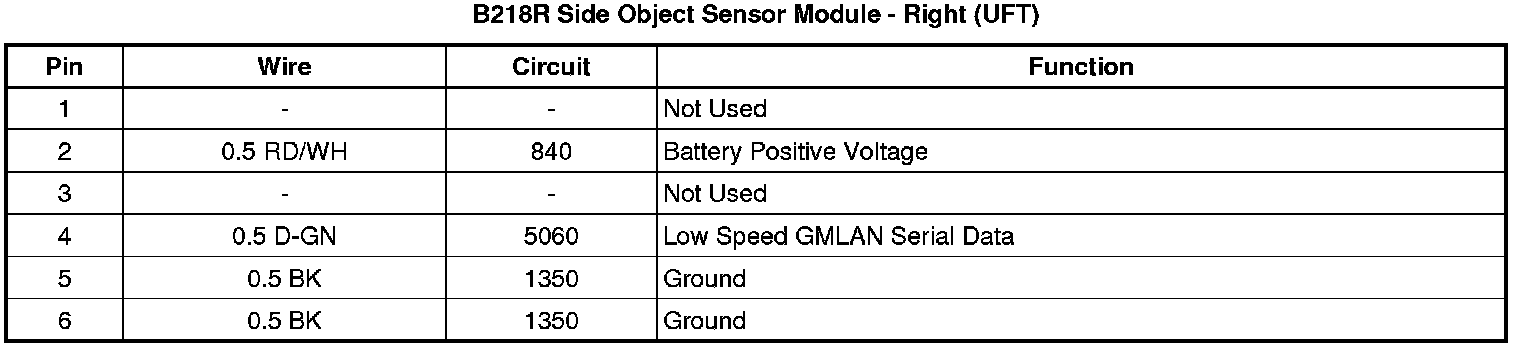

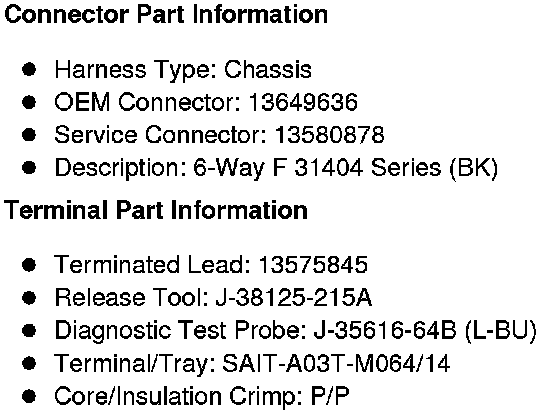

B218R Side Object Sensor Module - Right (UFT)
