Inside Rearview Mirror (UVC without UHQ or UFU)
Inside Rearview Mirror (UVC without UHQ or UFU)
Component Connector End Views

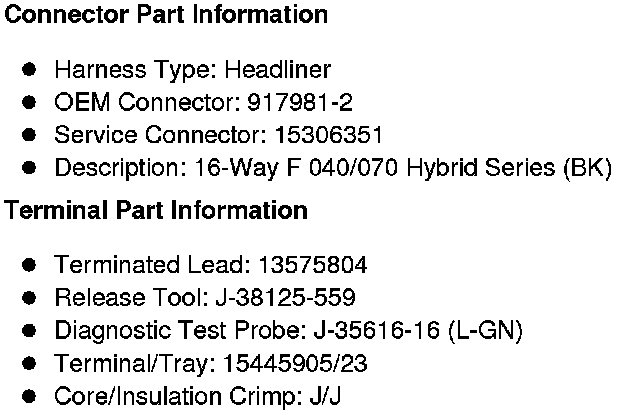

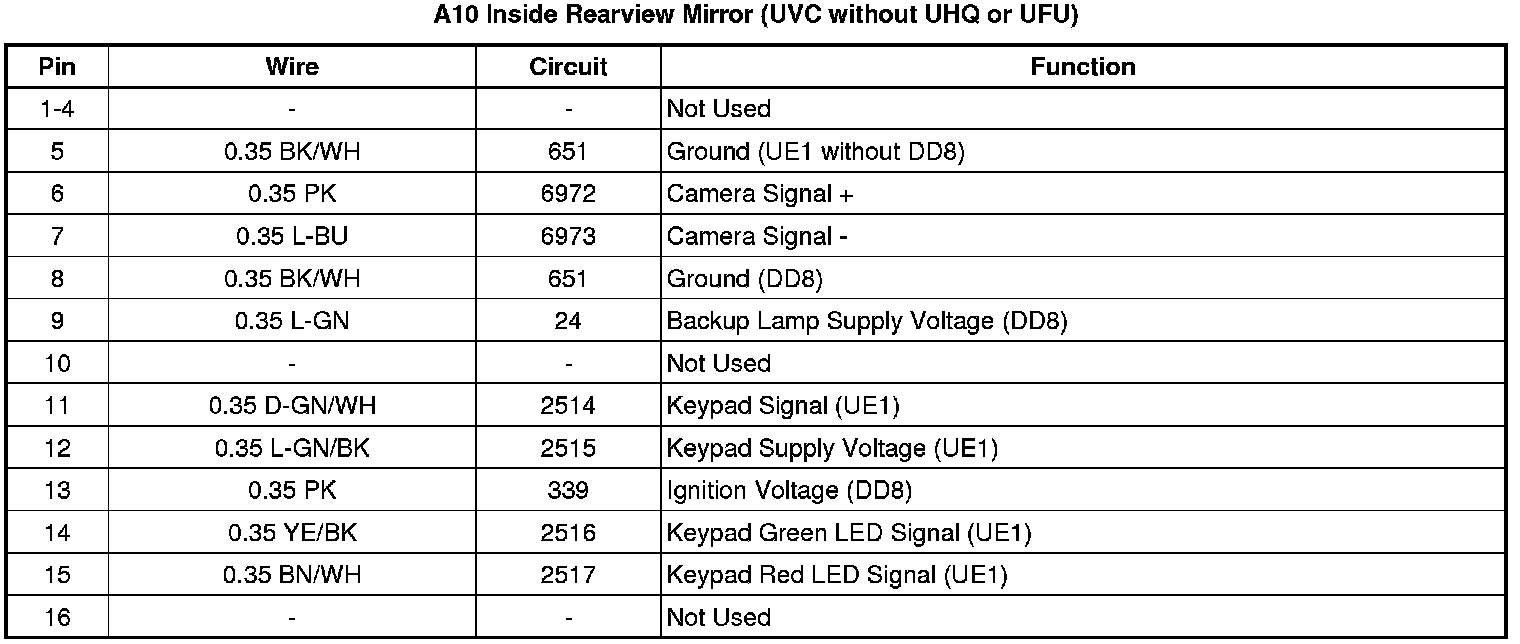

A10 Inside Rearview Mirror (UVC without UHQ or UFU)
