C0394

DTC C0394

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC C0394 02

-
Rear Differential Clutch Temperature Sensor Circuit Short to Ground

DTC C0394 04

-
Rear Differential Clutch Temperature Sensor Circuit Open

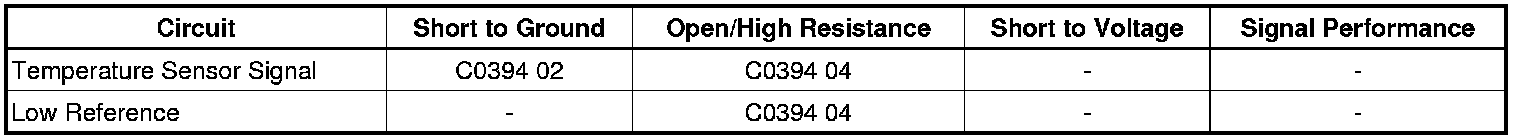

Diagnostic Fault Information






Circuit/System Description

The rear differential clutch control module provides a power and ground circuits to the temperature sensor. When the temperature of the module is determined to be beyond its limits, the rear differential clutch control module will temporarily disable the rear drive system.

Conditions for Running the DTC

The ignition is ON.

Conditions for Setting the DTC

An open or short to ground is detected on the temperature sensor circuits.

Action Taken When the DTC Sets

One or more of the following actions may occur:

* All Wheel Drive Off (AWD Disabled).

* Service All Wheel Drive (Service AWD).

Conditions for Clearing the DTC

* The condition for the DTC is no longer present.

* The DTC is not detected in 40 consecutive drive cycles.

Reference Information

Schematic Reference

Rear Axle Schematics Electrical Diagrams

Connector End View Reference

Component Connector End Views Sunshade - Left Front

Description and Operation

Rear Drive Axle Description and Operation Description and Operation

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Control Module References for scan tool information

Circuit/System Testing

1. Ignition OFF, disconnect the X2 harness connector at the K47 rear differential clutch control module.

2. Ignition ON.

3. Verify a test lamp does not illuminate between the following circuits and ground:

* Low reference terminal 2

* Voltage terminal 4

• If the test lamp illuminates

Repair the short to voltage on the appropriate circuit.

• If the test lamp does not illuminate

4. Ignition OFF.

5. Test for infinite resistance between the following circuit terminals and ground:

* Low reference terminal 2

* Voltage terminal 4

• If less than infinite resistance

Repair the short to ground on the appropriate circuit.

• If infinite resistance

6. Test for 310-113 k ohms between the low reference circuit terminal 2 and the voltage supply terminal 4.

• If greater than 113 k ohms

Test the circuits for an open/high resistance. If the circuits test normal, replace the Q28 rear drive clutch.

• If less than 310 ohms

Test for a short between the circuits. If the circuits test normal, replace the Q28 rear drive clutch.

• If 310-113 k ohms

7. Replace the K47 rear differential clutch control module.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the repair.

* Rear Wheel Drive Module Clutch Housing Replacement Rear Wheel Drive Module Clutch Housing Replacement.

* Control Module References Control Module References for rear differential clutch control module replacement, programming, and setup.
