Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Service and Repair >> Overhaul >> 7. Input Shaft and Rear Output Drive Shaft Cleaning and Inspection

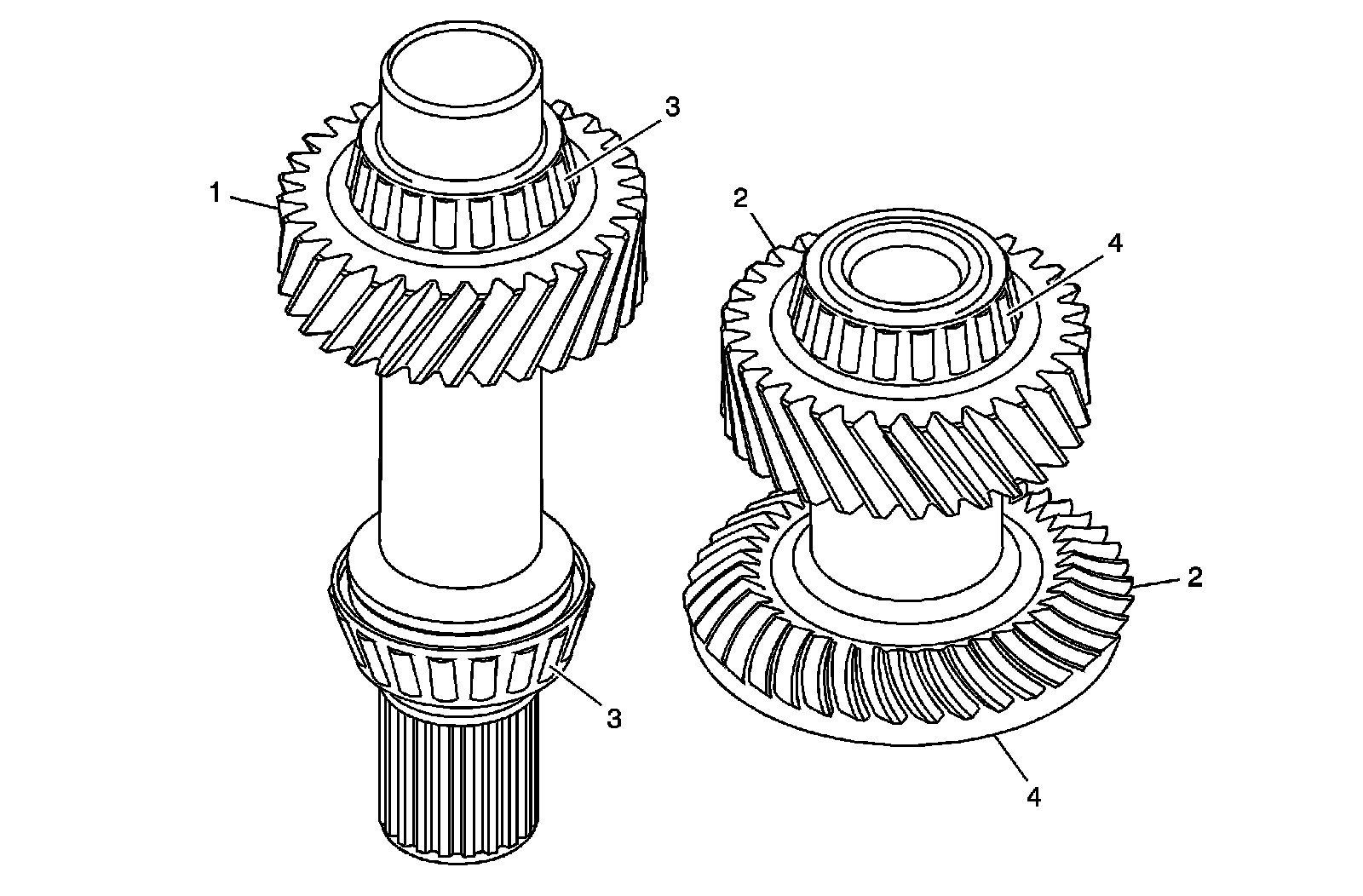

7. Input Shaft and Rear Output Drive Shaft Cleaning and Inspection

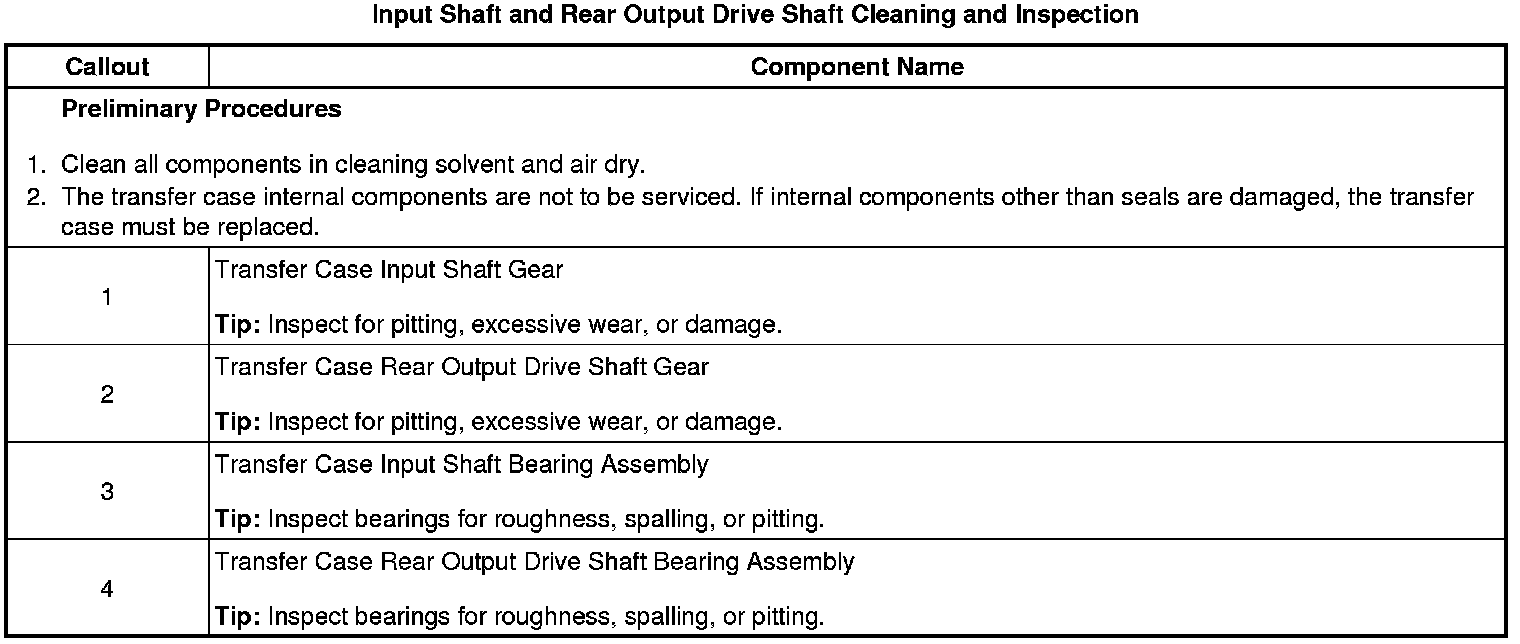

Input Shaft and Rear Output Drive Shaft Cleaning and Inspection
