Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Service and Repair >> Overhaul >> 3. Rear Output Drive Housing Cleaning and Inspection

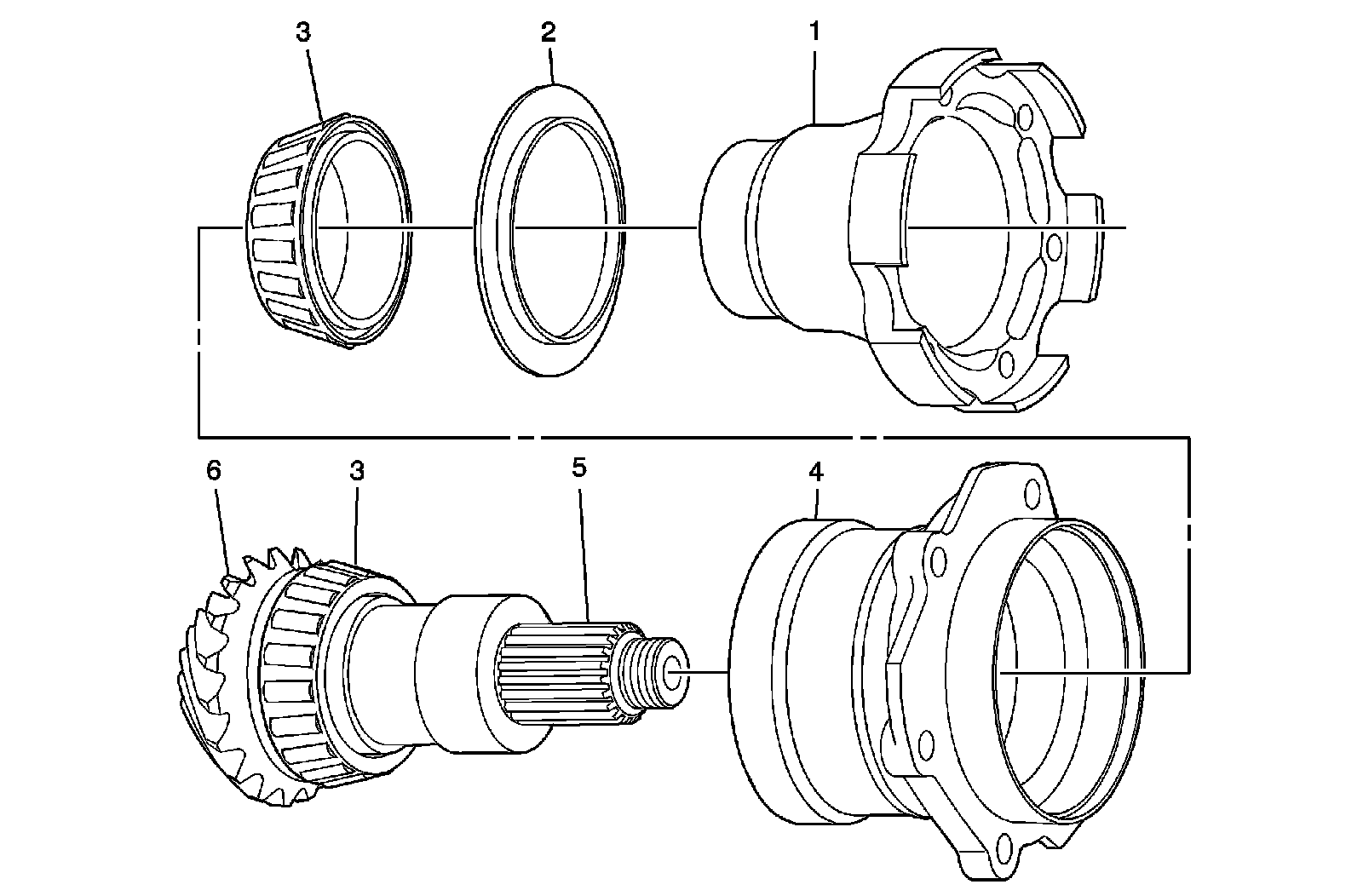

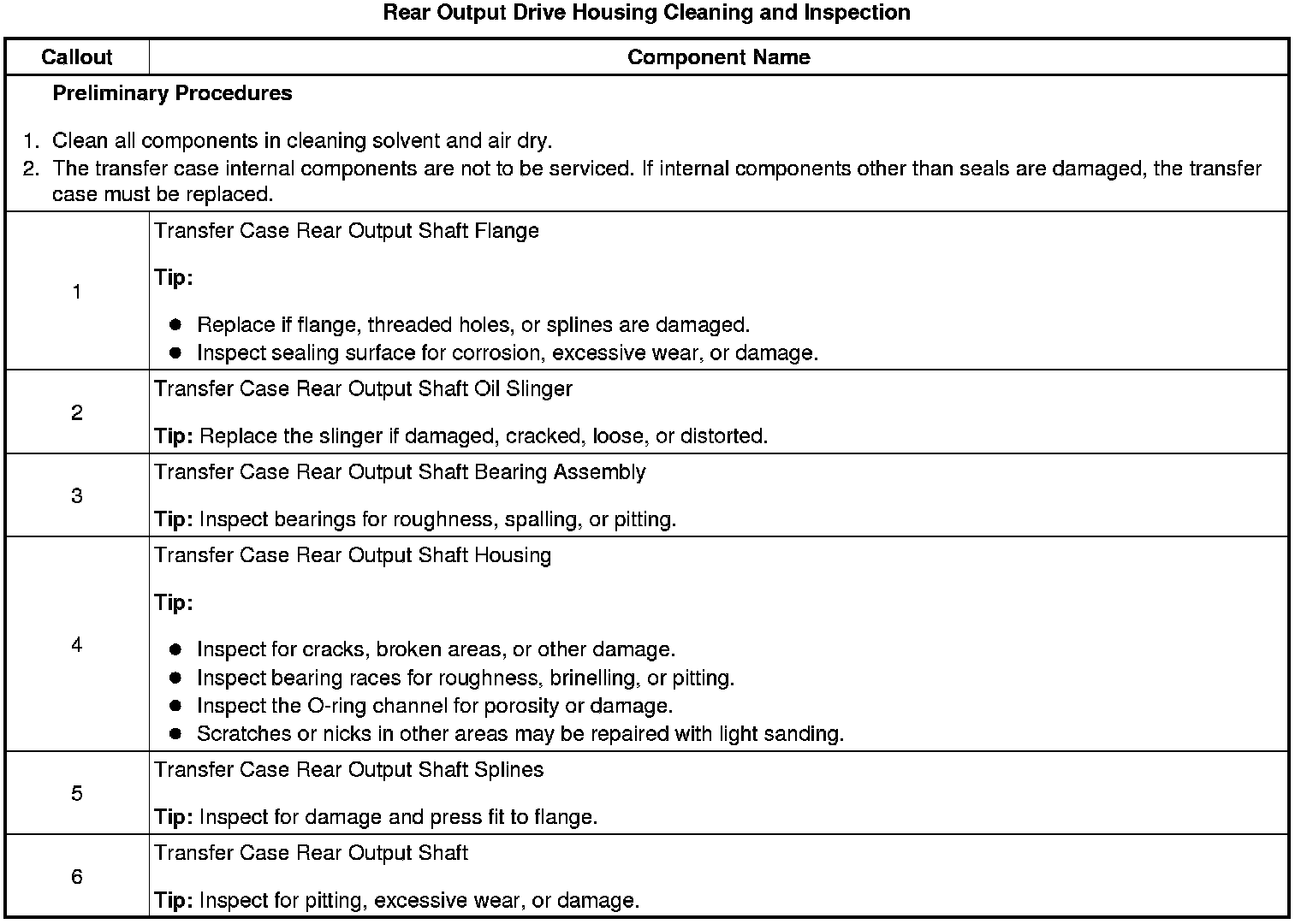

3. Rear Output Drive Housing Cleaning and Inspection




Rear Output Drive Housing Cleaning and Inspection
