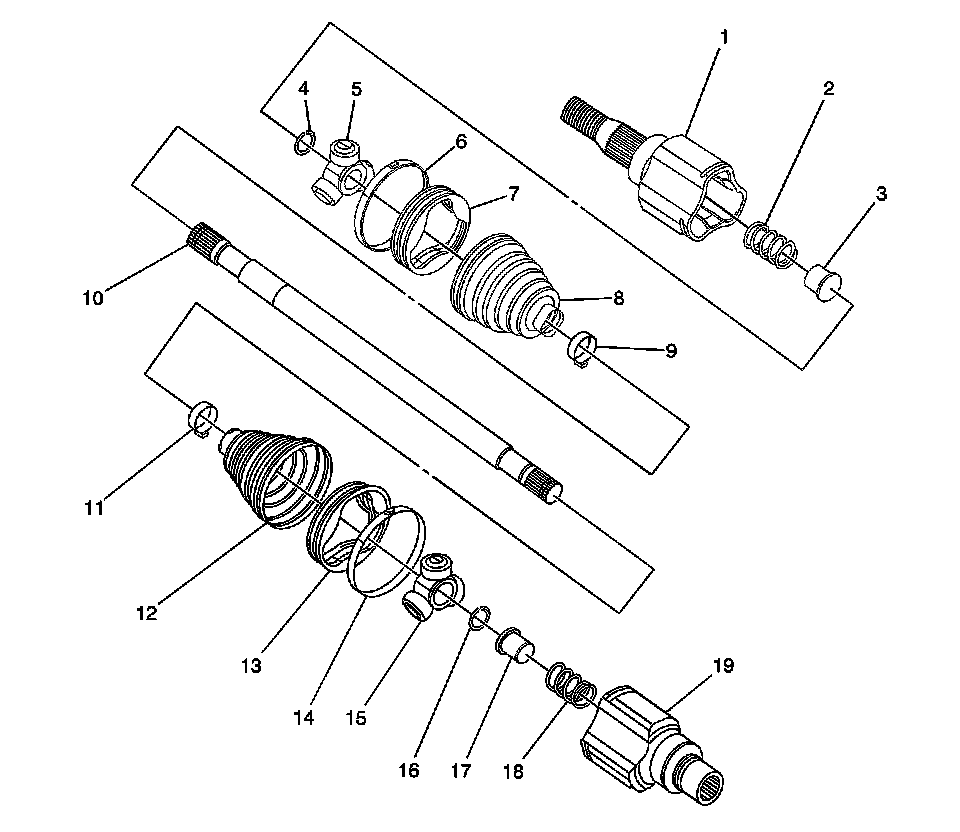

Rear Wheel Drive Shaft Disassembled Views

Rear Wheel Drive Shaft Disassembled Views





1 - Tripot Joint Race - Outboard

2 - Spring

3 - Guide

4 - Retaining Ring, Outboard Tripot Joint Spider

5 - Tripot Joint Spider - Outboard Tripot Joint

6 - Clamp, Outboard Tripot Joint Seal - Outer

7 - Bushing, Tripot Joint Race - Outboard

8 - Tripot Joint Seal, Outboard

9 - Clamp, Outboard Tripot Joint Seal - Inner

10 - Bar, Wheel Drive Shaft

11 - Clamp, Inboard Tripot Joint Seal - Inner

12 - Tripot Joint Seal, Inboard

13 - Bushing, Tripot Joint Race - Inboard

14 - Clamp, Inboard Tripot Joint Seal - Outer

15 - Tripot Joint Spider - Inboard Tripot Joint

16 - Retaining Ring, Inboard Tripot Joint Spider

17 - Guide

18 - Spring

19 - Tripot Joint Race - Inboard
