Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 9. Torque Converter and Differential Housing, Front Differential Transfer Drive Gear, and Front Differential Carrier Removal

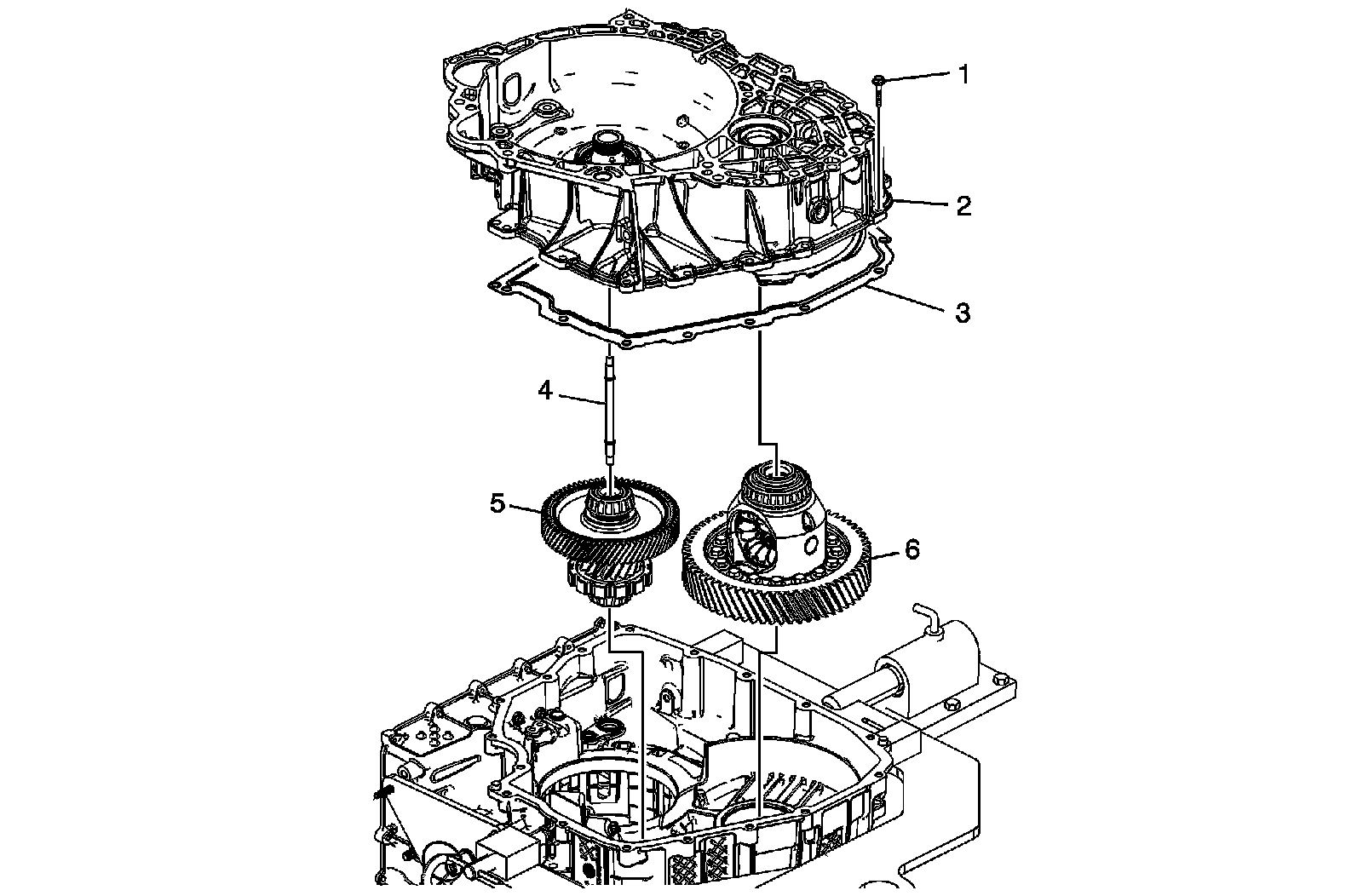

9. Torque Converter and Differential Housing, Front Differential Transfer Drive Gear, and Front Differential Carrier Removal

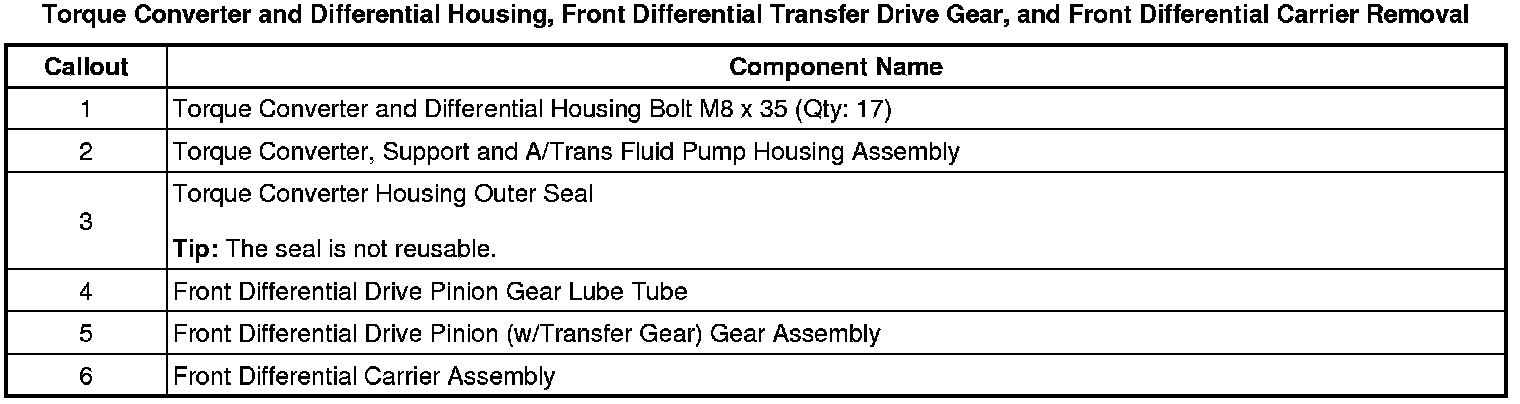

Torque Converter and Differential Housing, Front Differential Transfer Drive Gear, and Front Differential Carrier Removal
