Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 6. Input, Reaction, and Output Carrier Removal

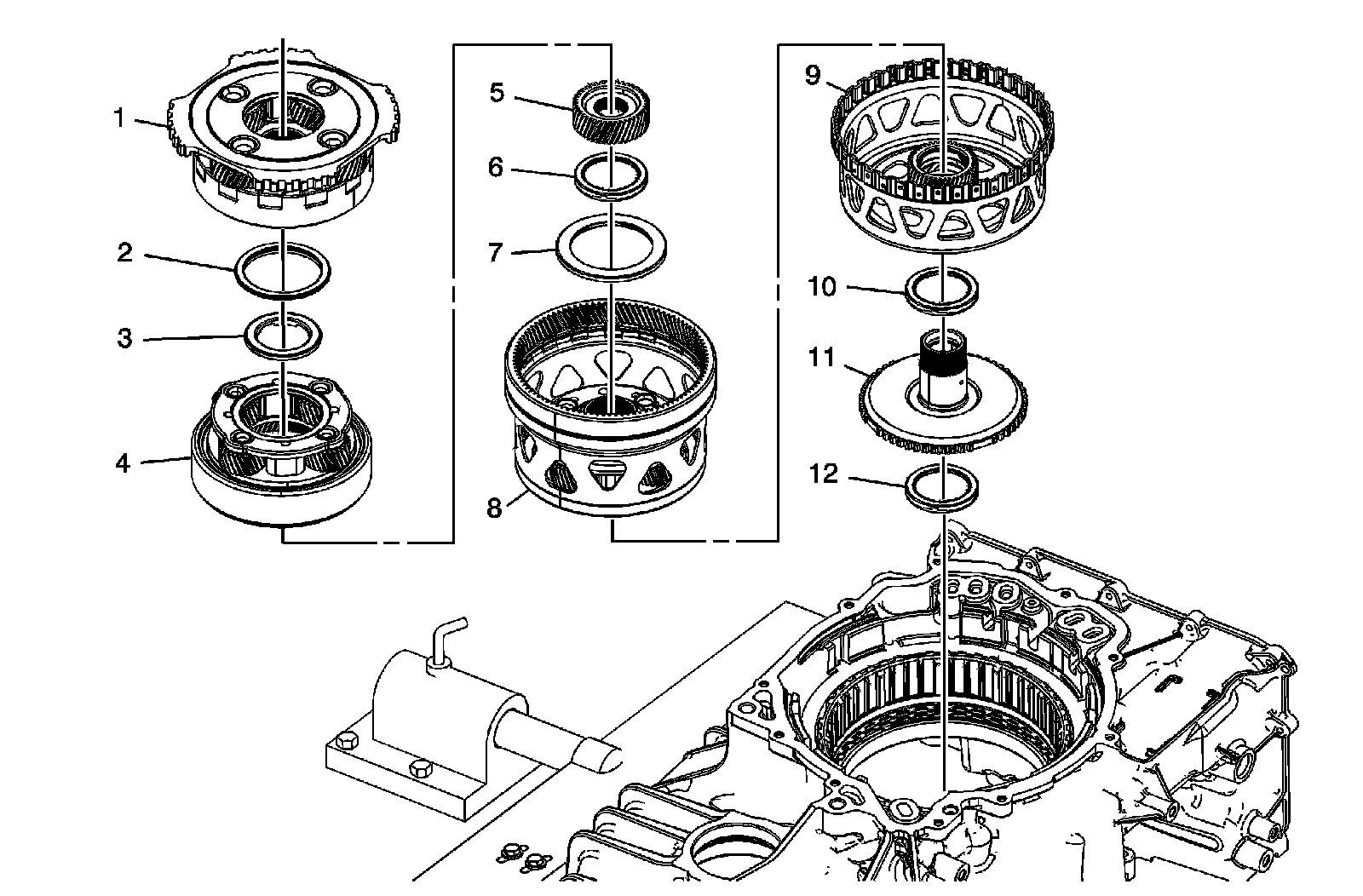

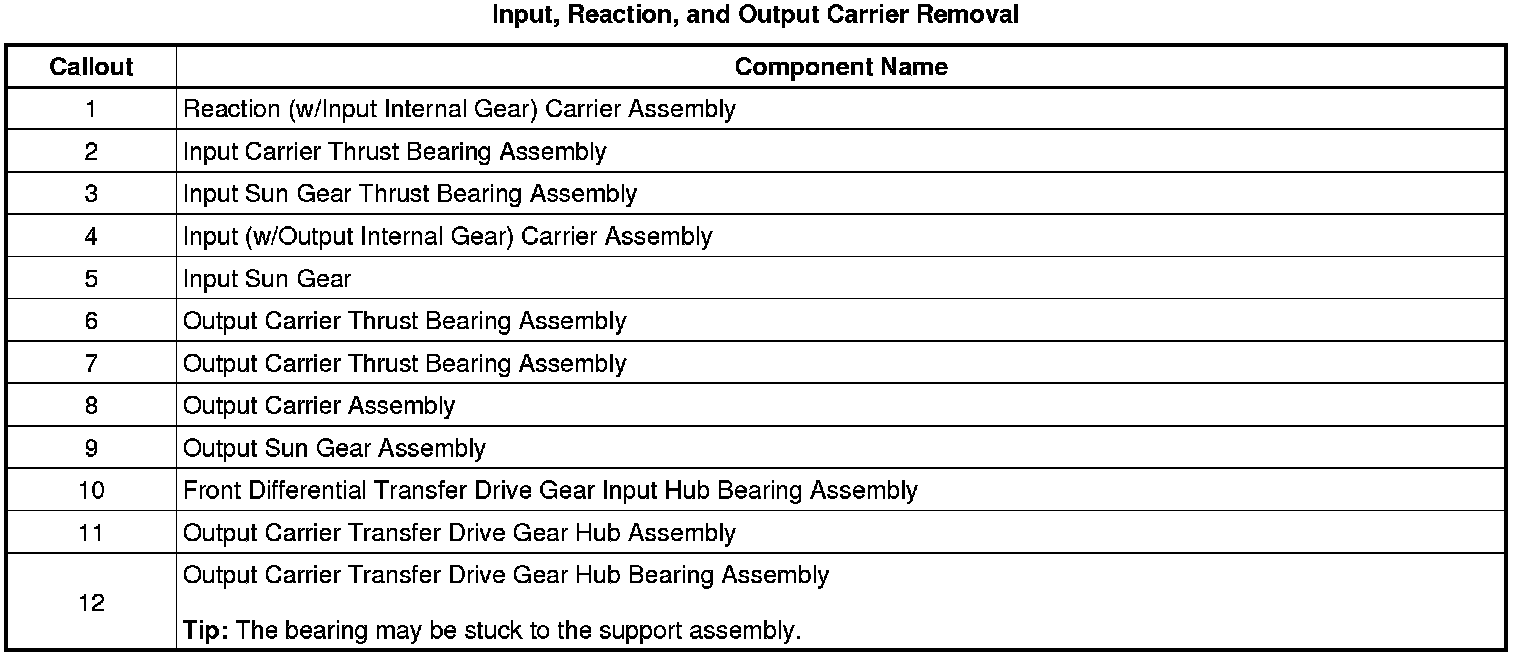

6. Input, Reaction, and Output Carrier Removal




Input, Reaction, and Output Carrier Removal
