50. Control Valve Upper Body Assembly Cleaning and Inspection
50. Control Valve Upper Body Assembly Cleaning and Inspection

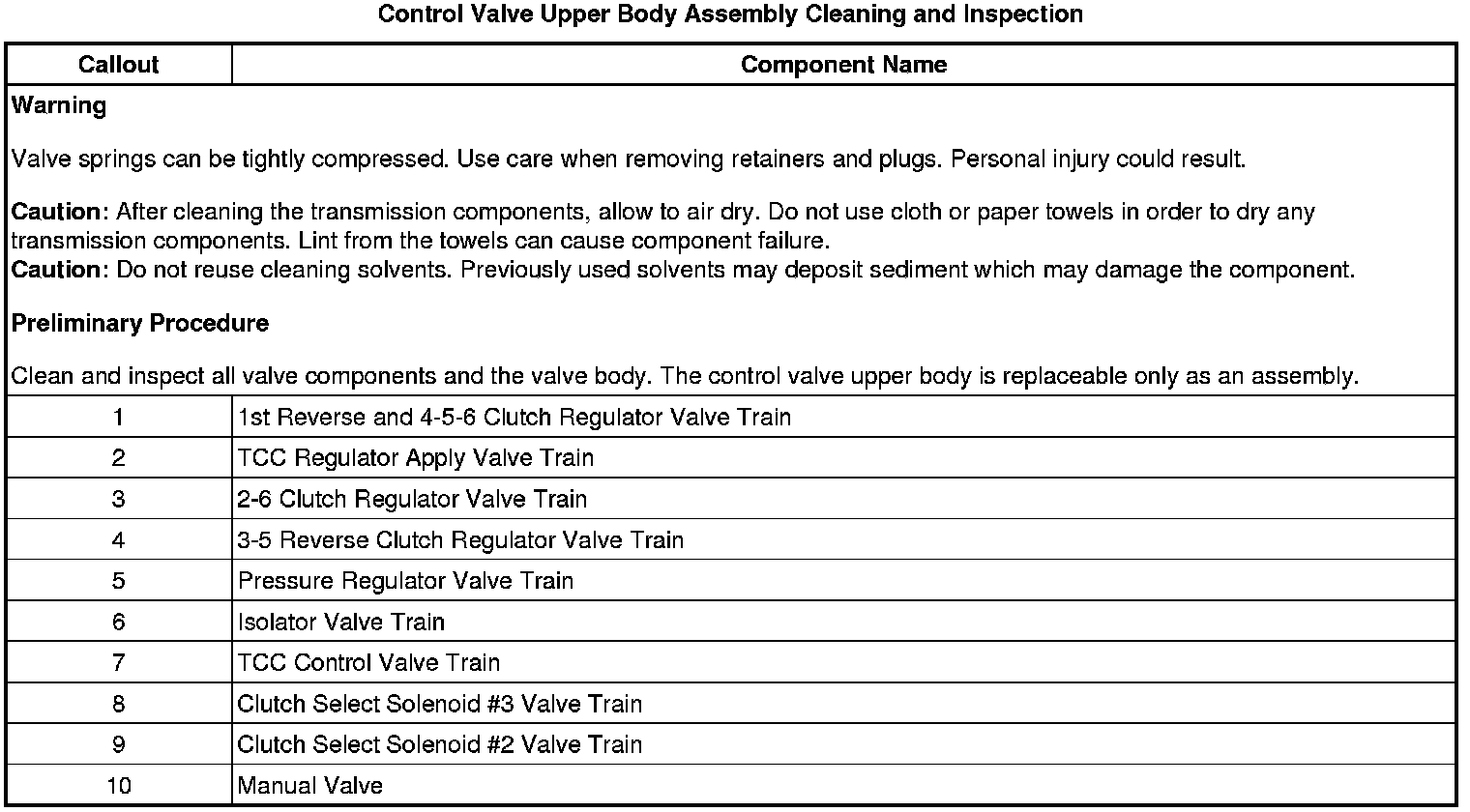

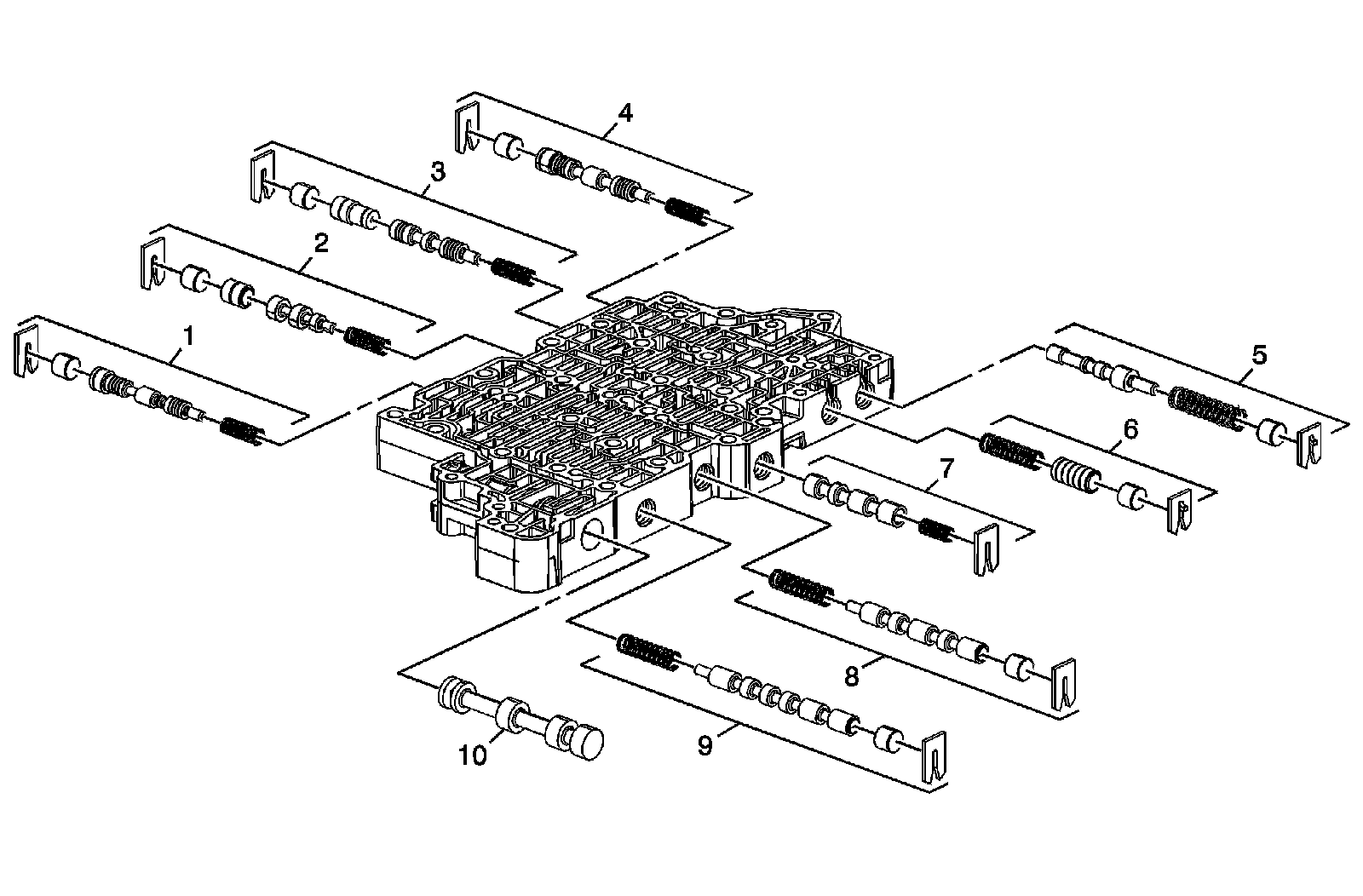

Control Valve Upper Body Assembly Cleaning and Inspection
