Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 5. Reaction Carrier Hub and 2-6 Clutch Plate Removal

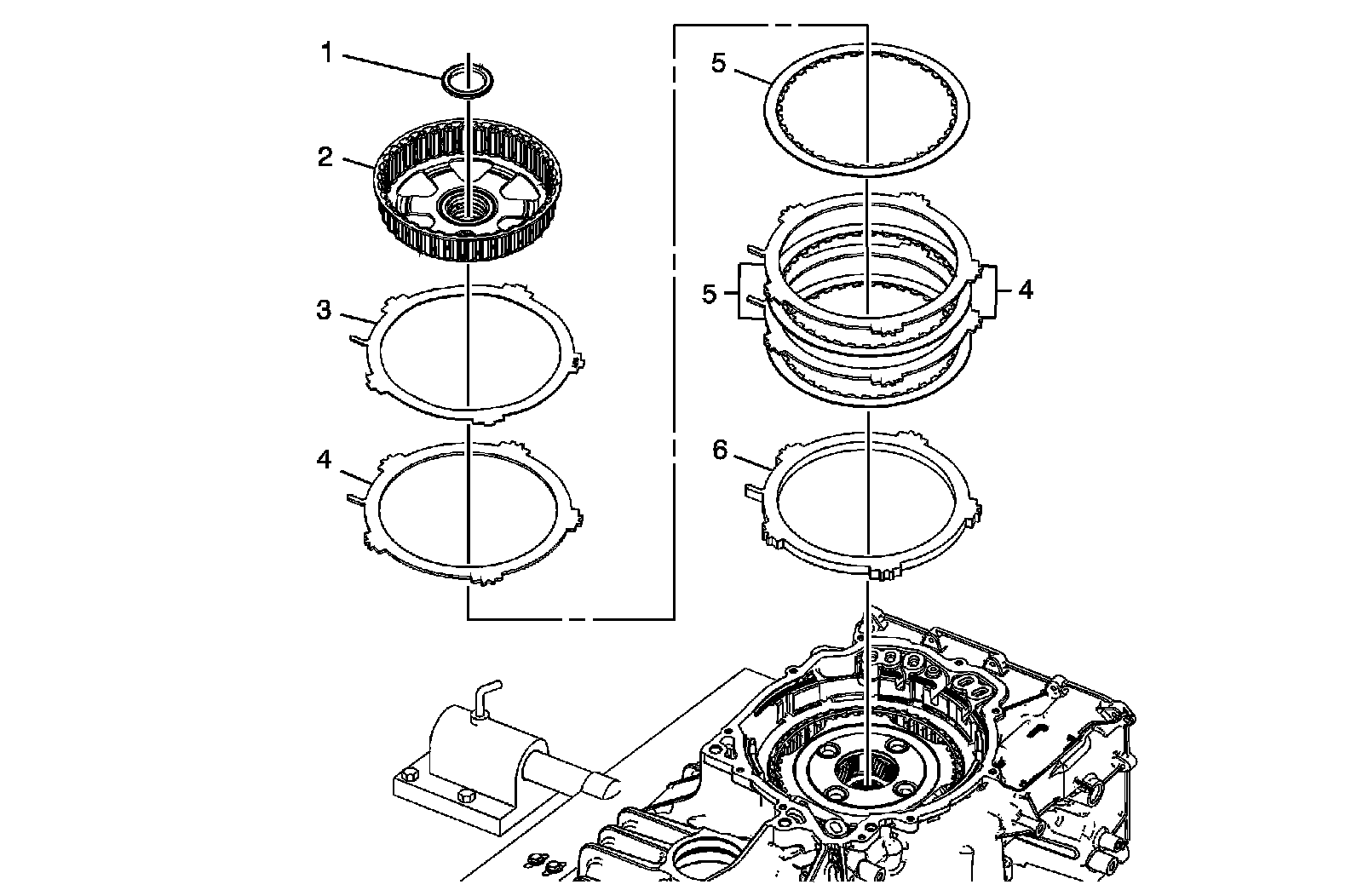

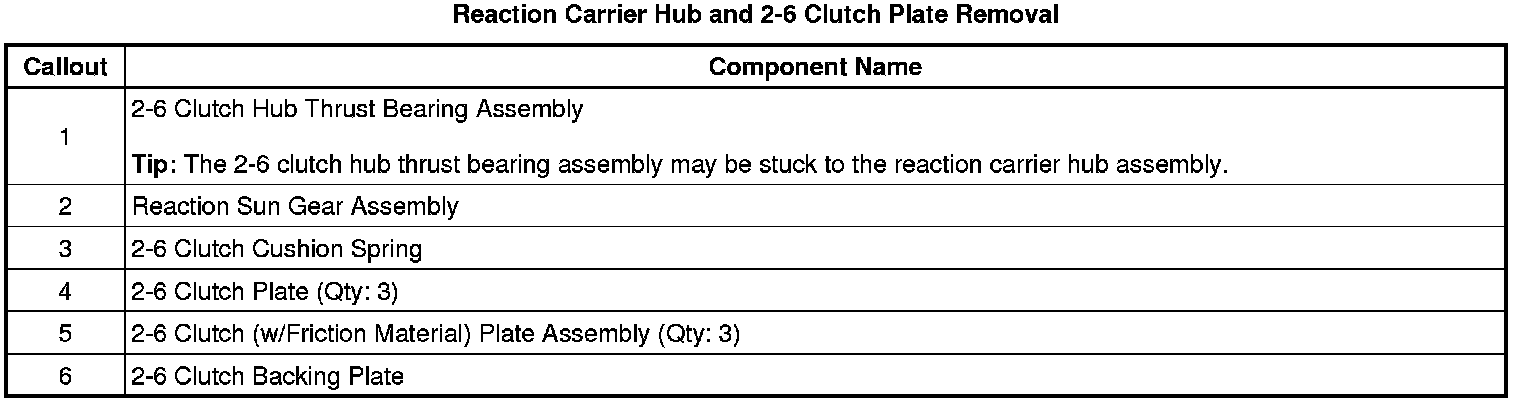

5. Reaction Carrier Hub and 2-6 Clutch Plate Removal




Reaction Carrier Hub and 2-6 Clutch Plate Removal
