Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 48. Control Valve Body Assembly Disassemble

48. Control Valve Body Assembly Disassemble

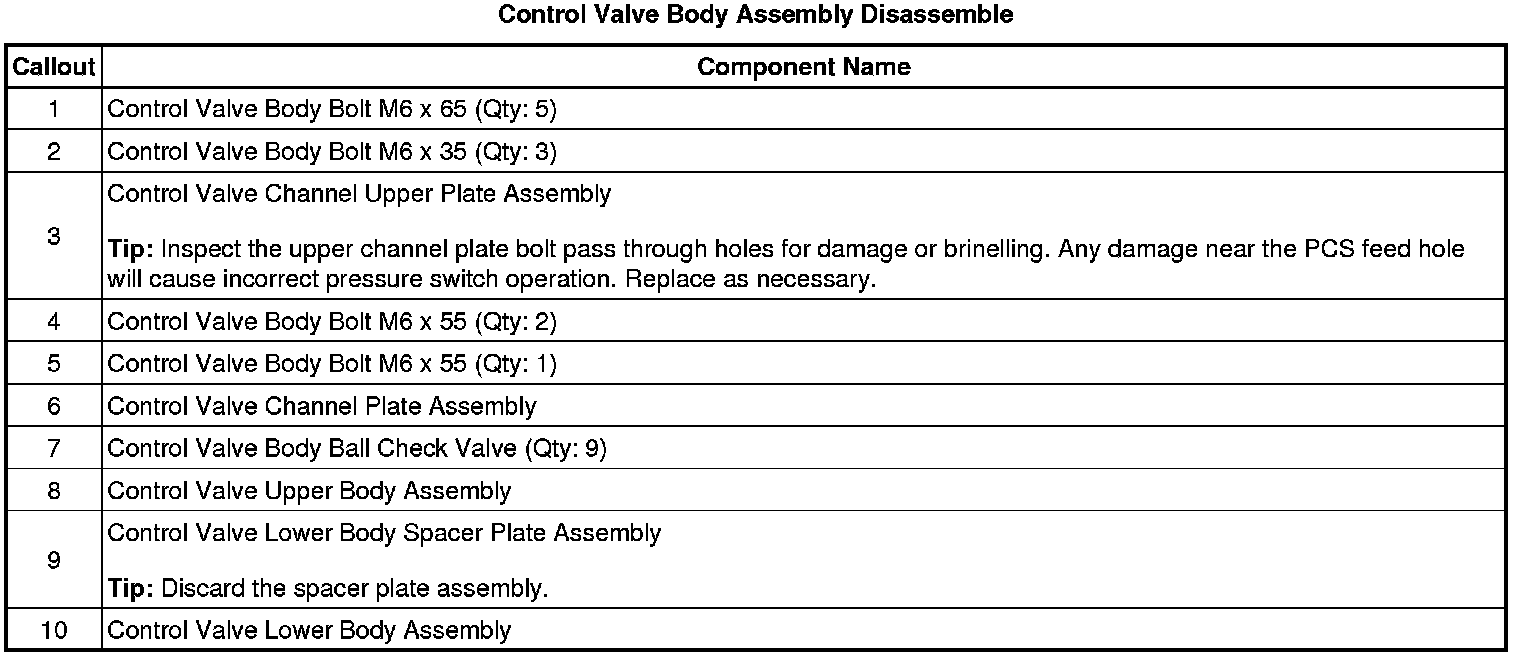

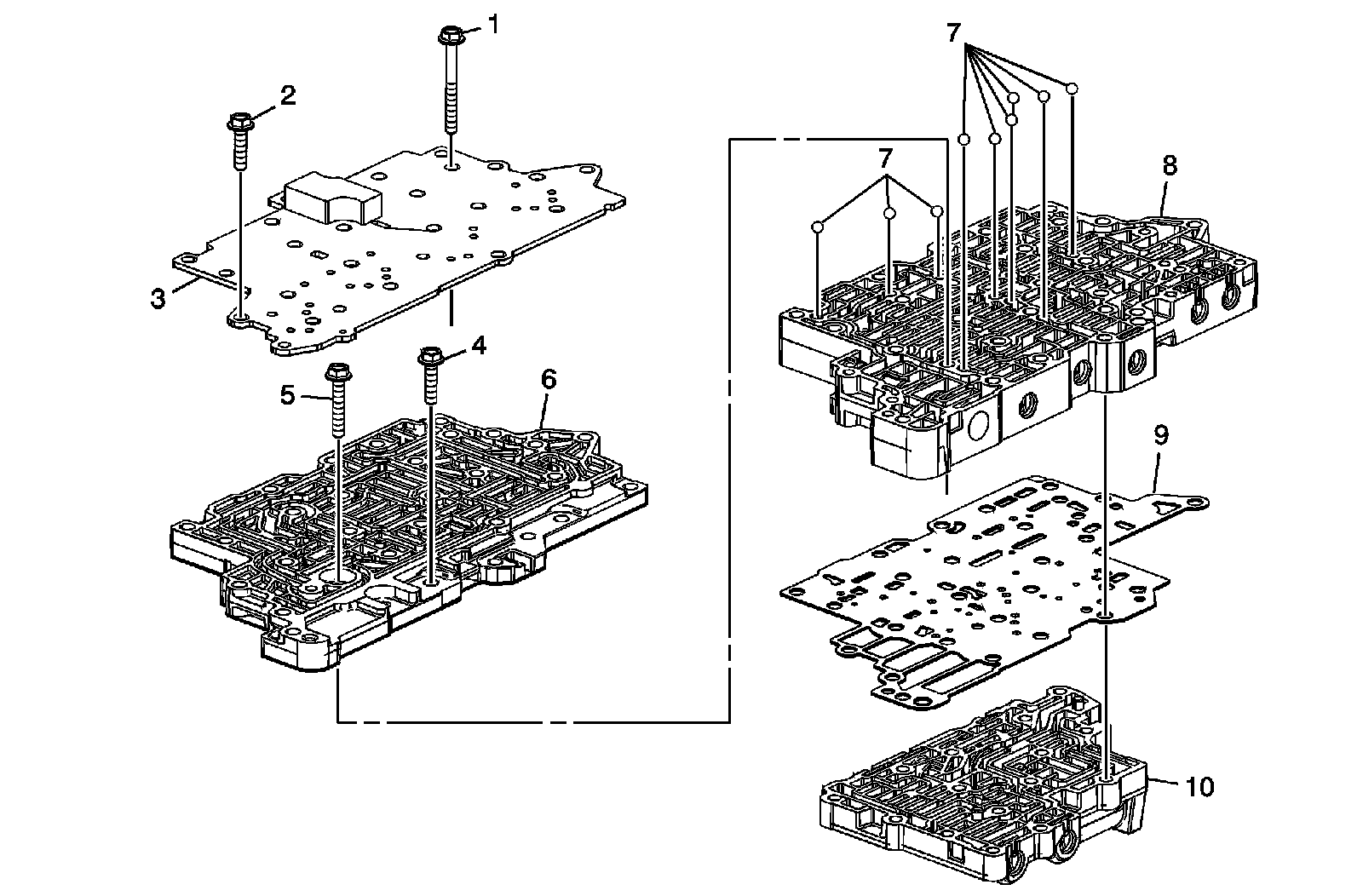

Control Valve Body Assembly Disassemble
