Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 47. Front Differential Carrier Final Rotational Torque Measurement

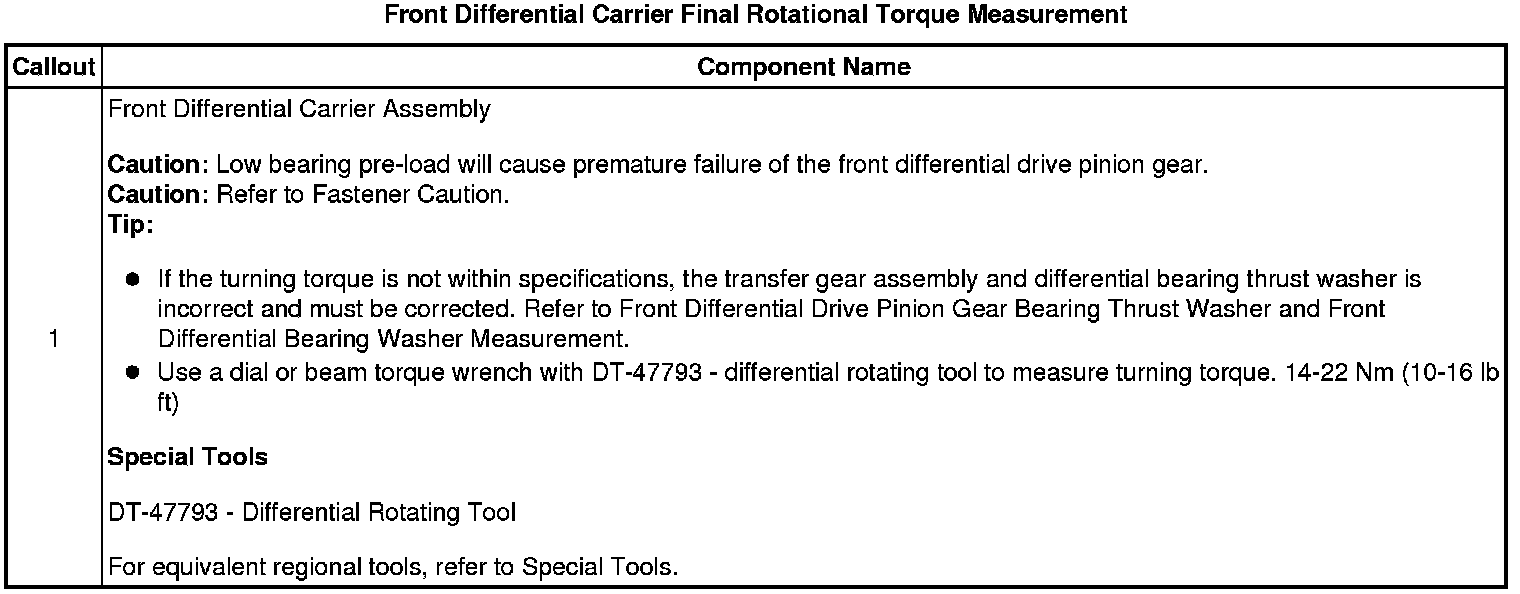

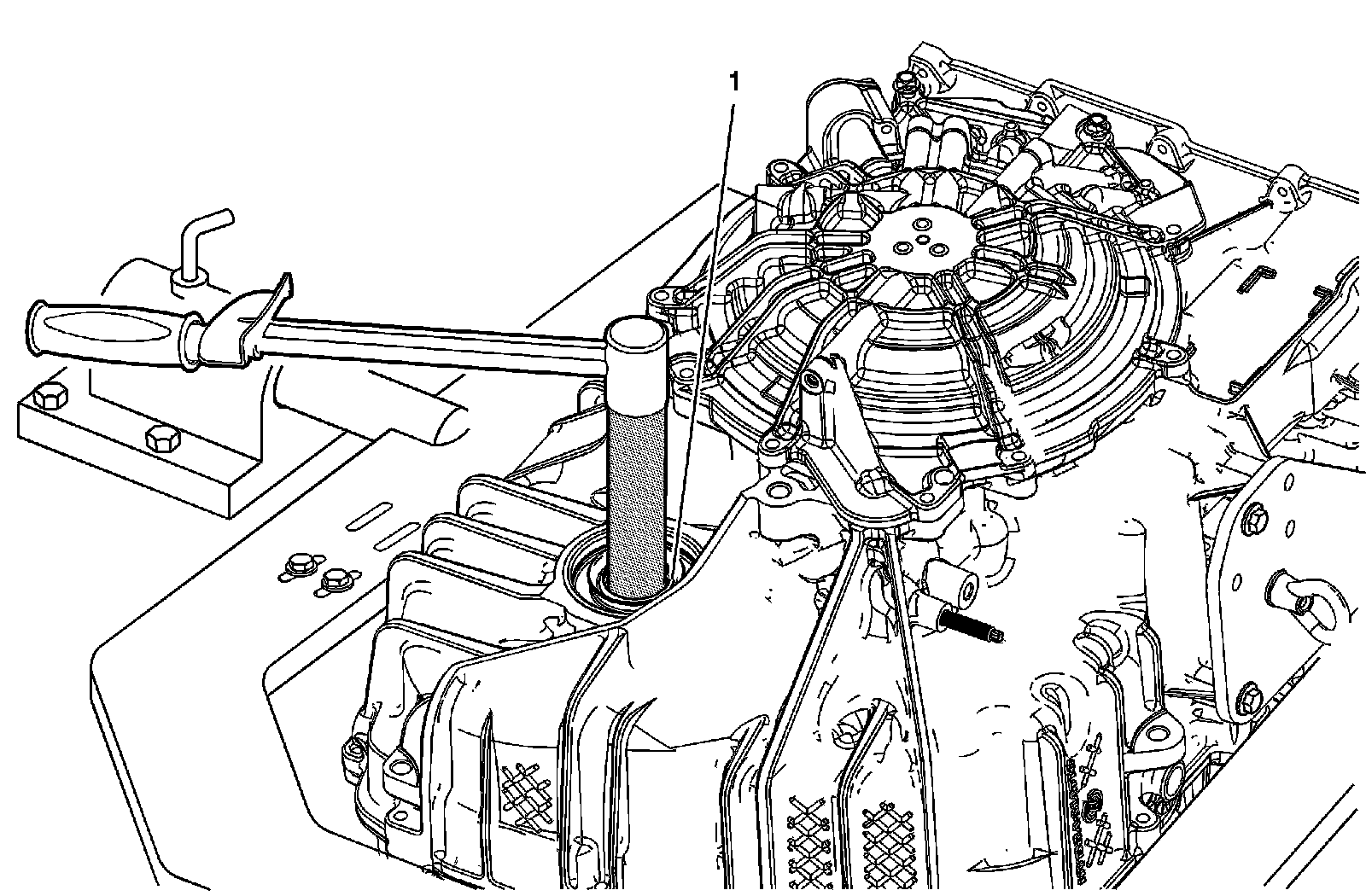

47. Front Differential Carrier Final Rotational Torque Measurement




Front Differential Carrier Final Rotational Torque Measurement
