Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 44. Case Cover Assembly Disassemble

44. Case Cover Assembly Disassemble




Case Cover Assembly Disassemble

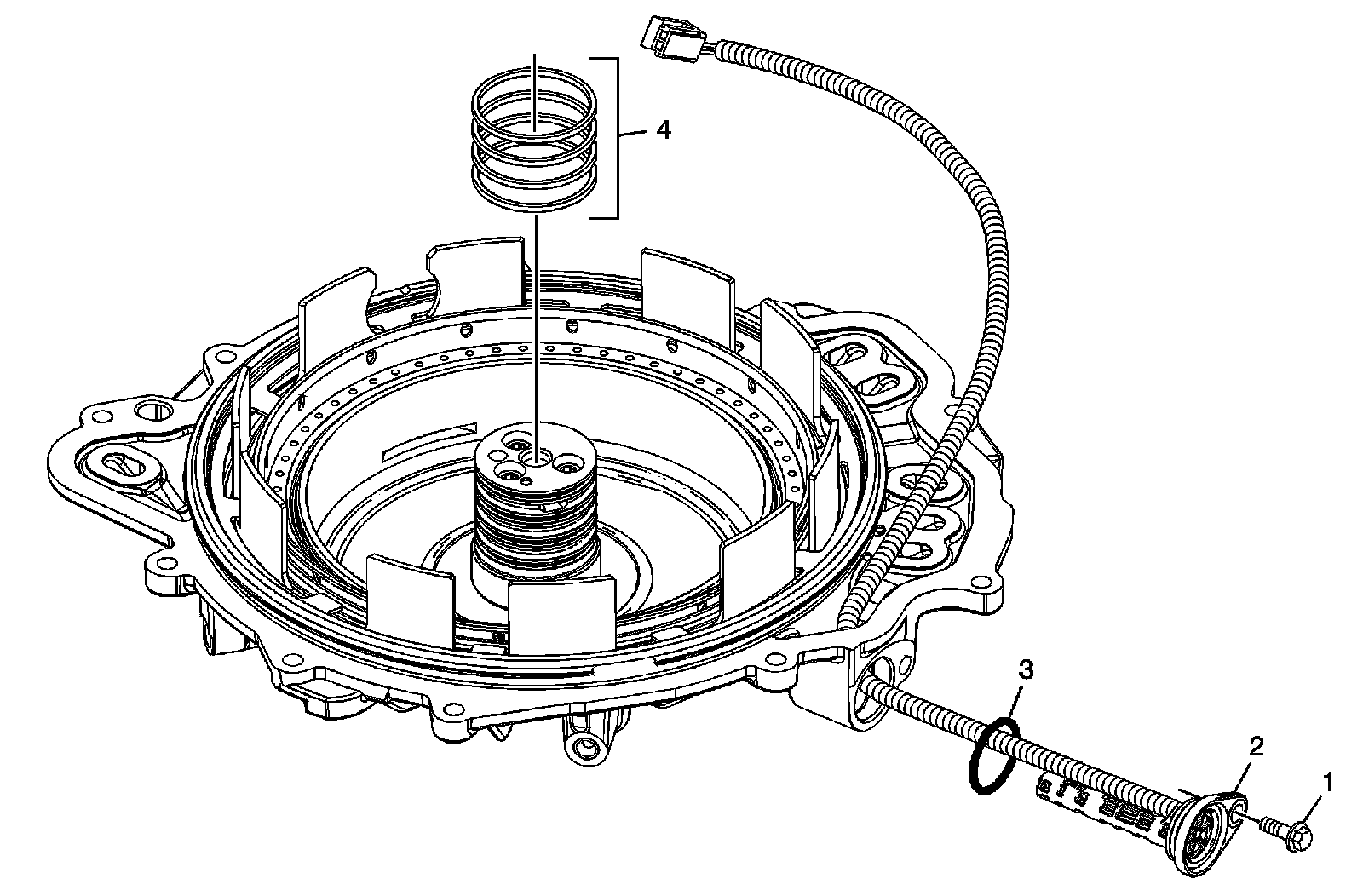

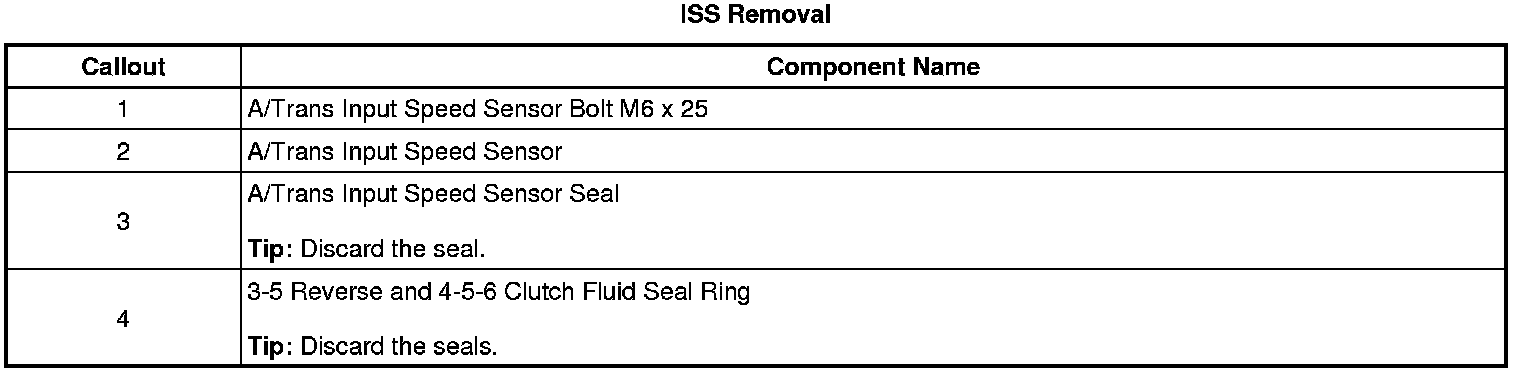

ISS Removal

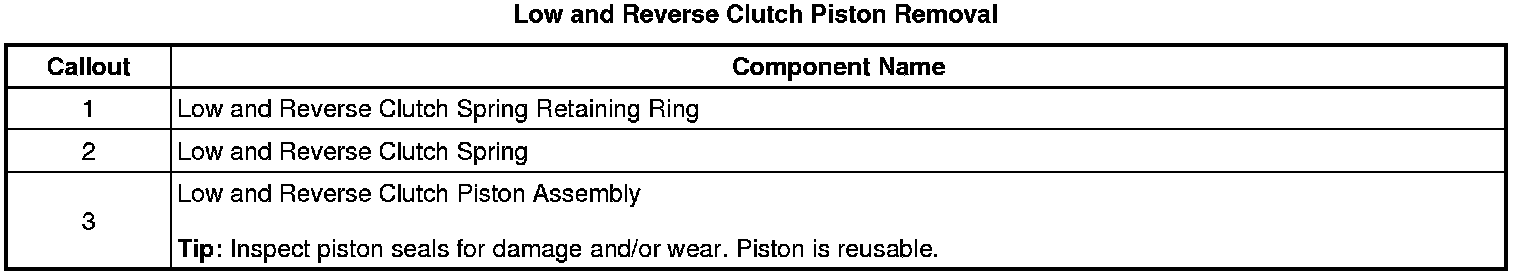

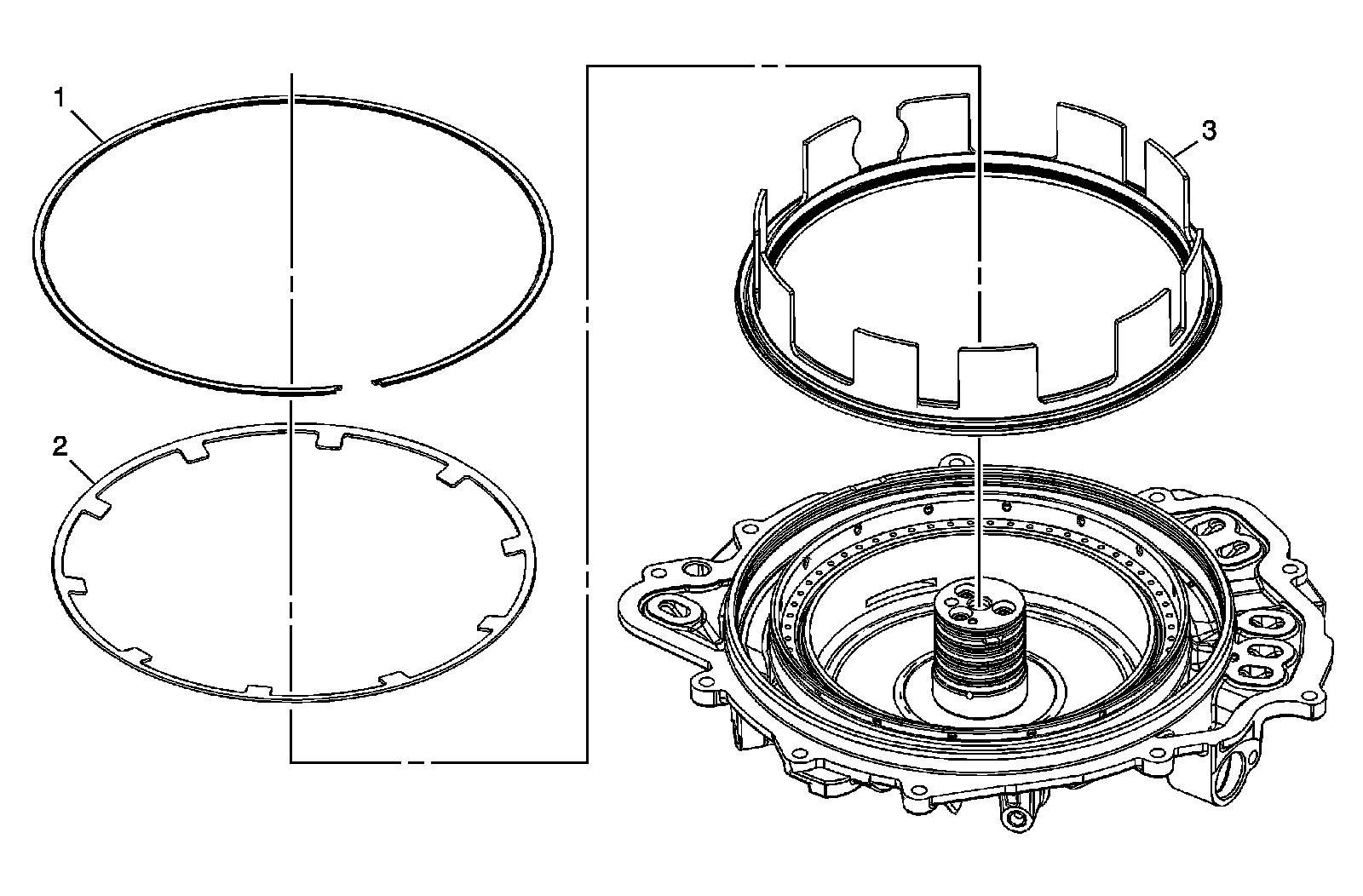

Low and Reverse Clutch Piston Removal

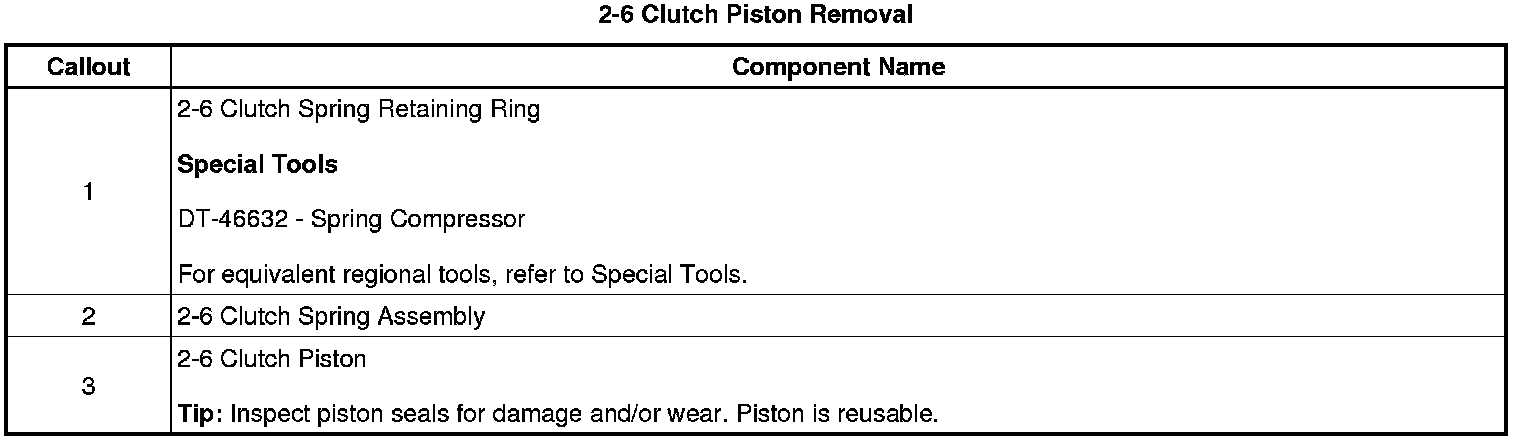

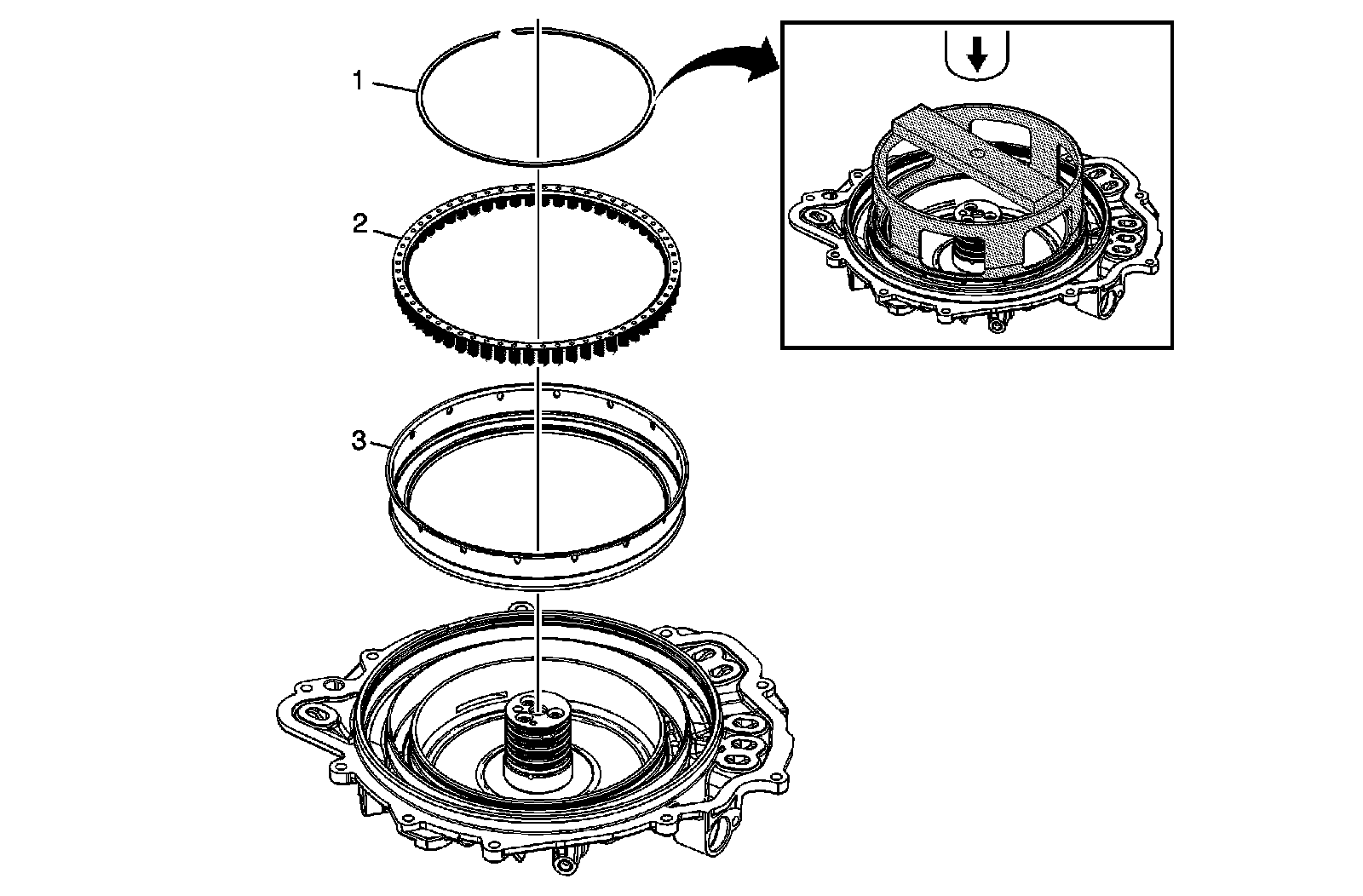

2-6 Clutch Piston Removal

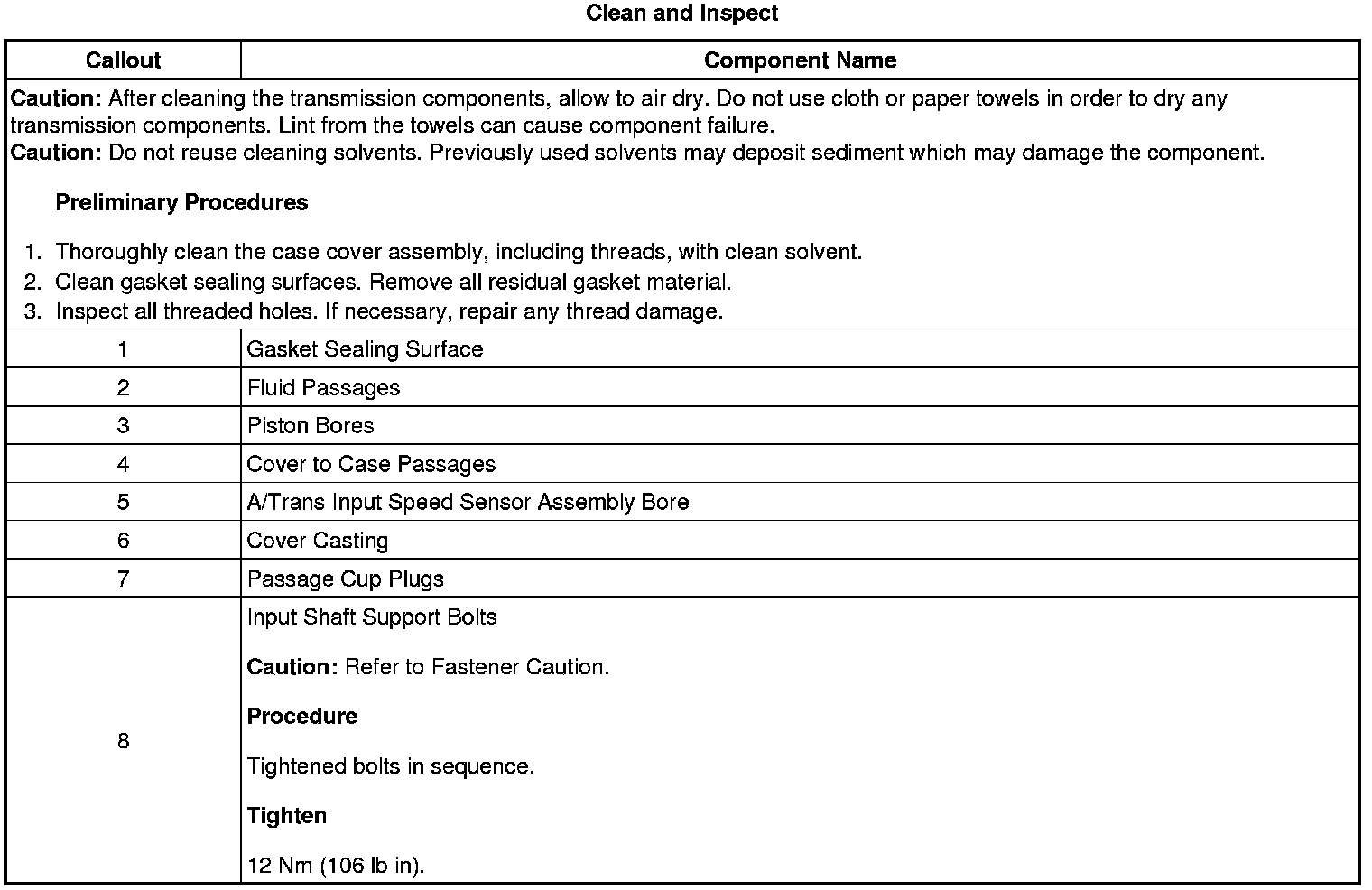

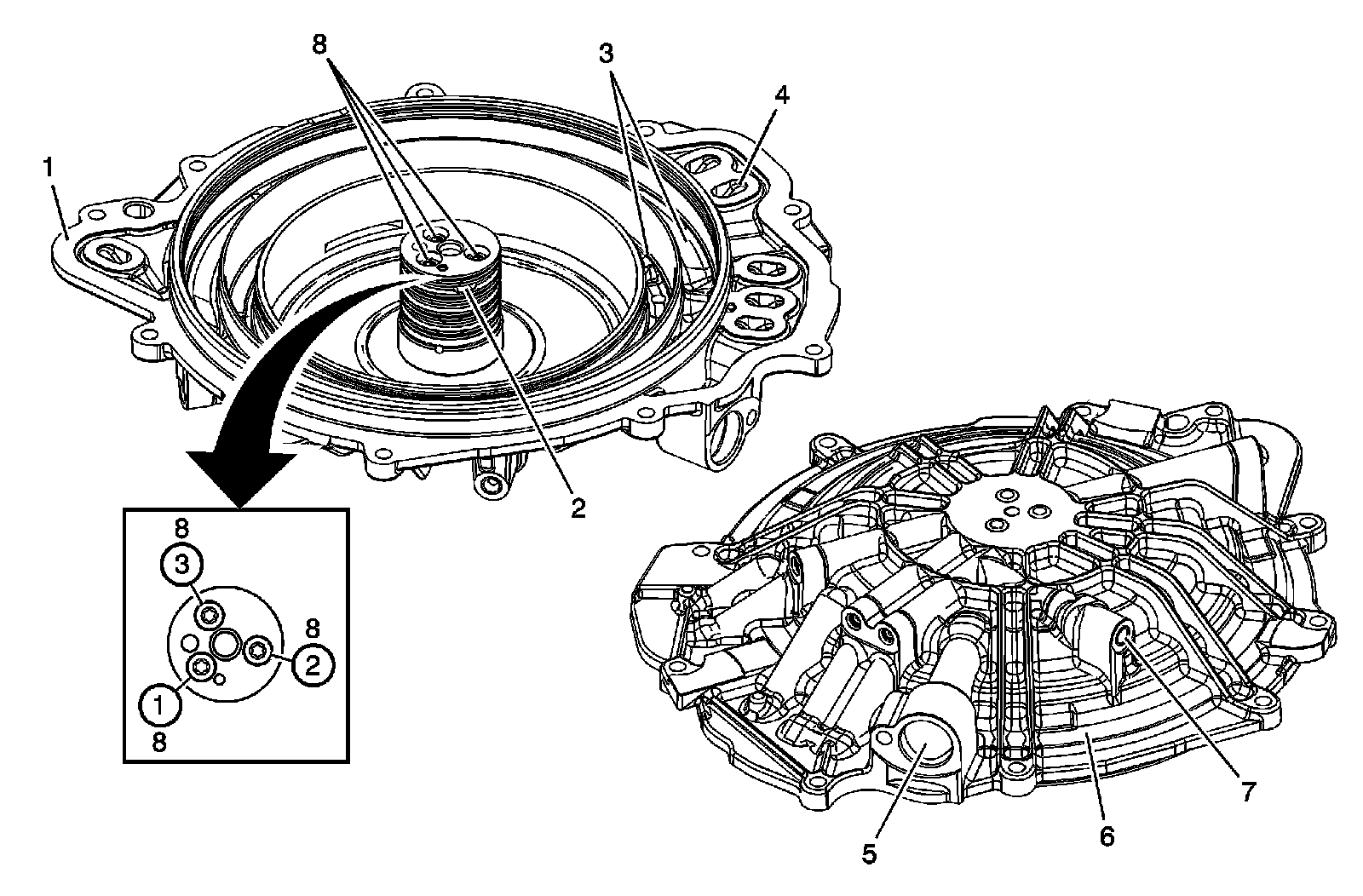

Clean and Inspect
