Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 40. 2-6 Clutch Plate Installation

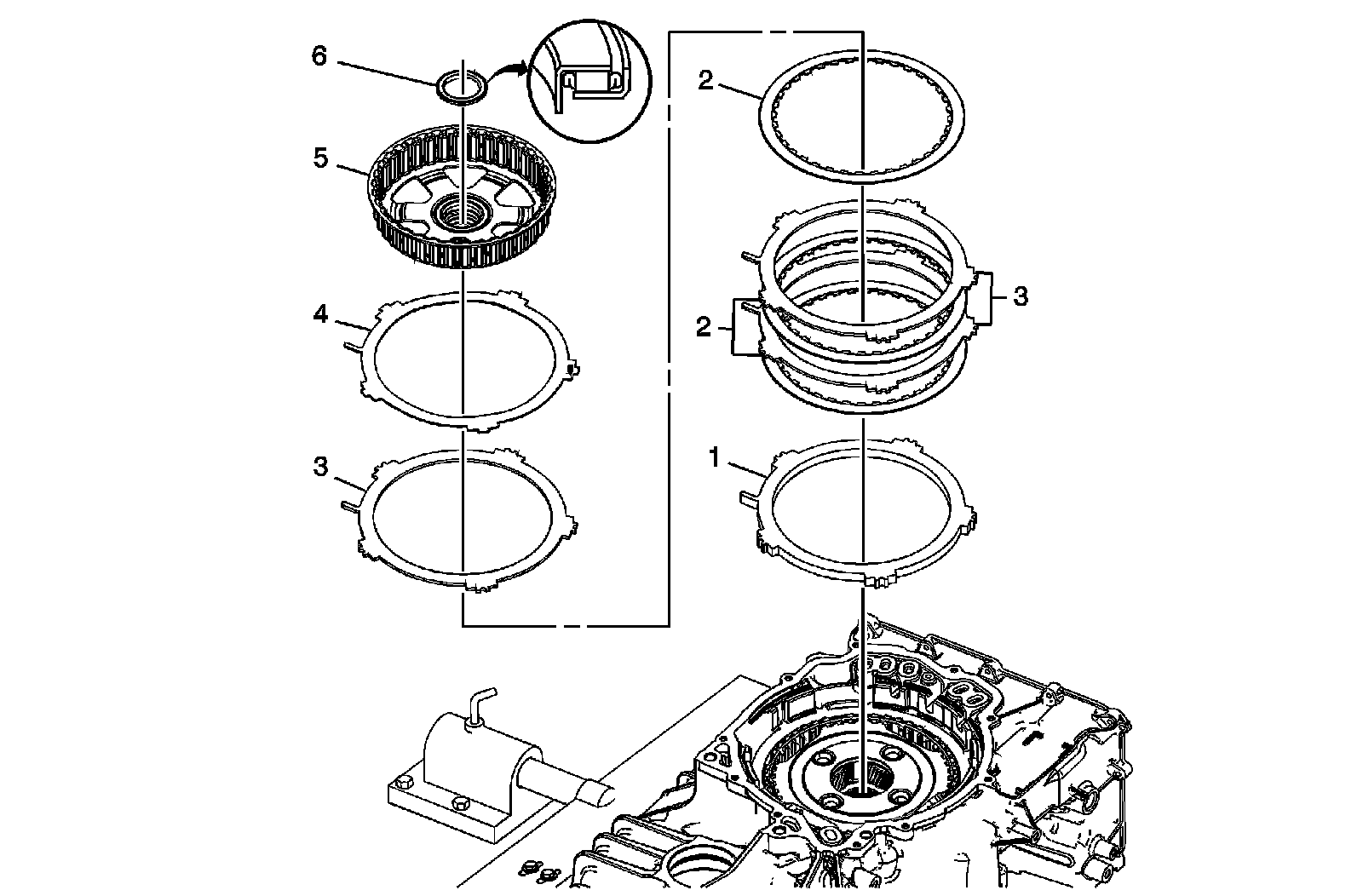

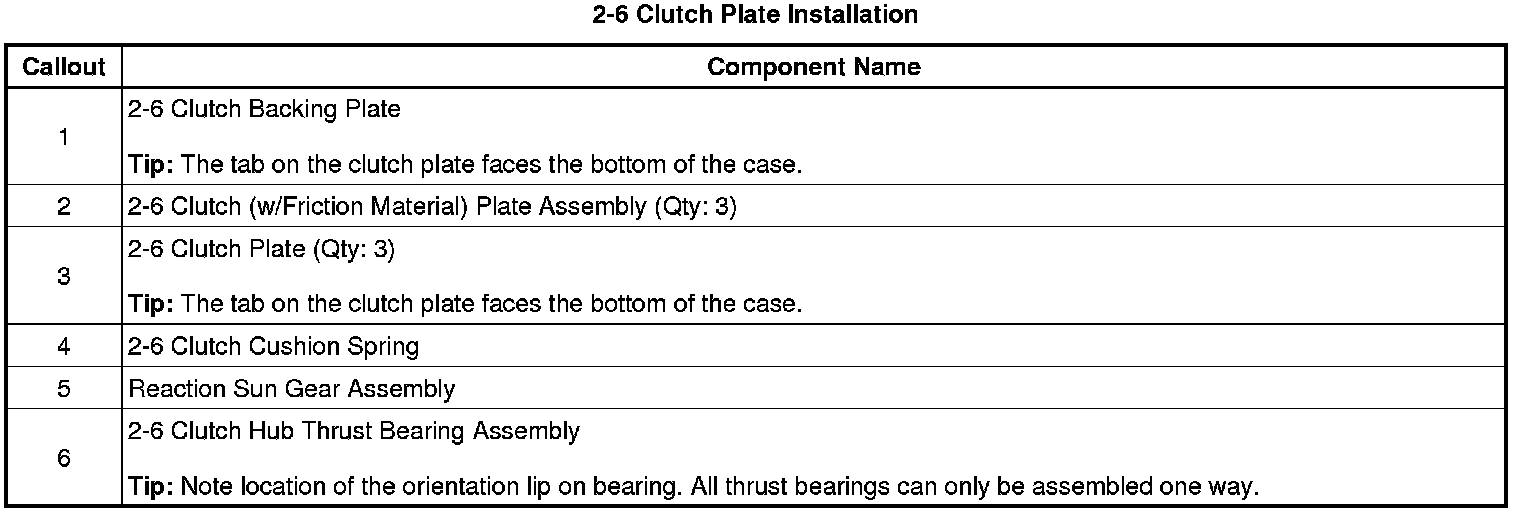

40. 2-6 Clutch Plate Installation




2-6 Clutch Plate Installation
