Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 4. Case Cover and 3-5-Reverse and 4-5-6 Clutch Housing Removal

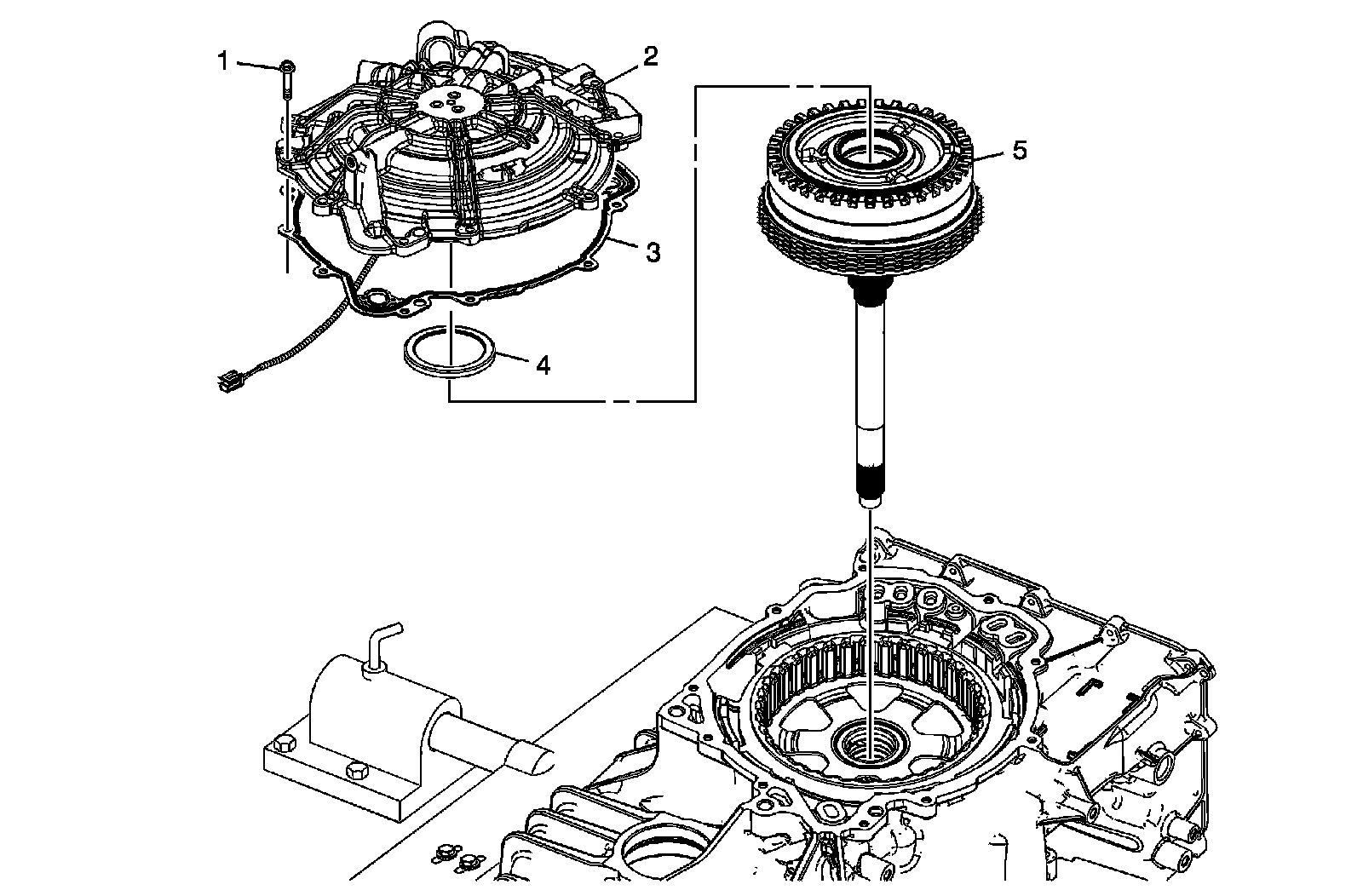

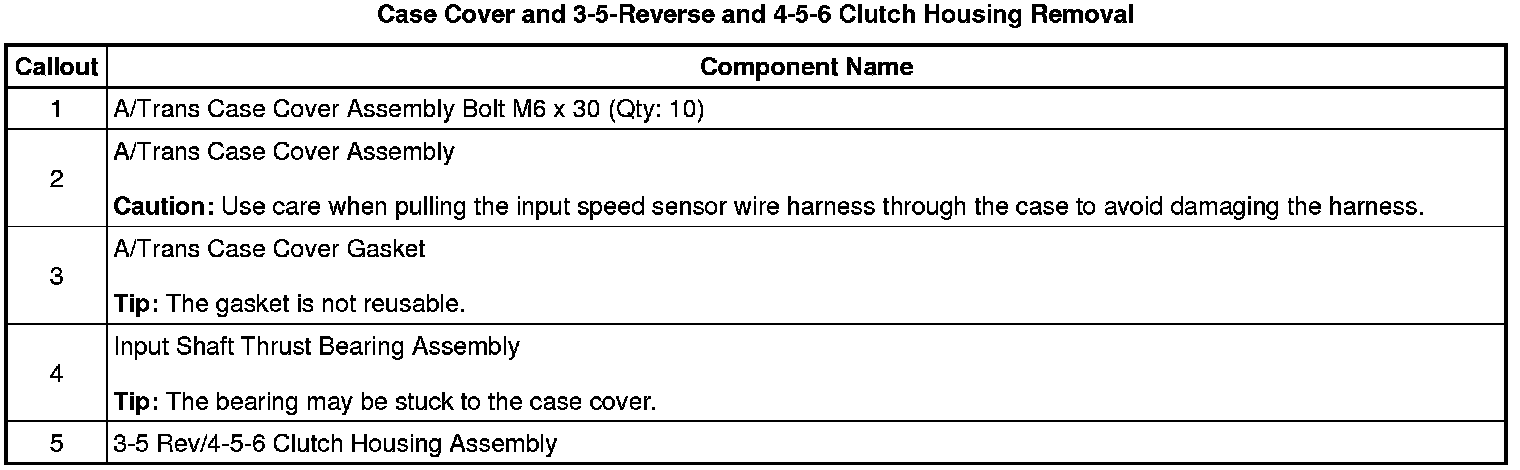

4. Case Cover and 3-5-Reverse and 4-5-6 Clutch Housing Removal




Case Cover and 3-5-Reverse and 4-5-6 Clutch Housing Removal
