3. Control Valve Body Assembly Removal




Control Valve Body Assembly Removal

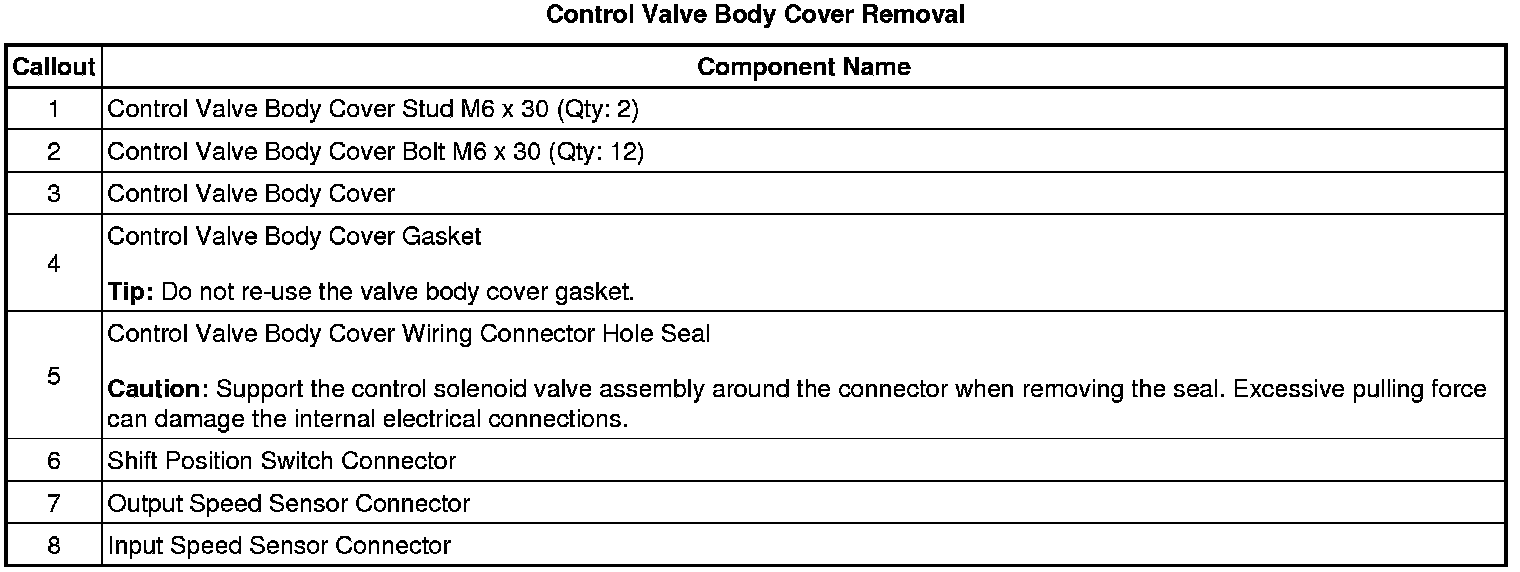

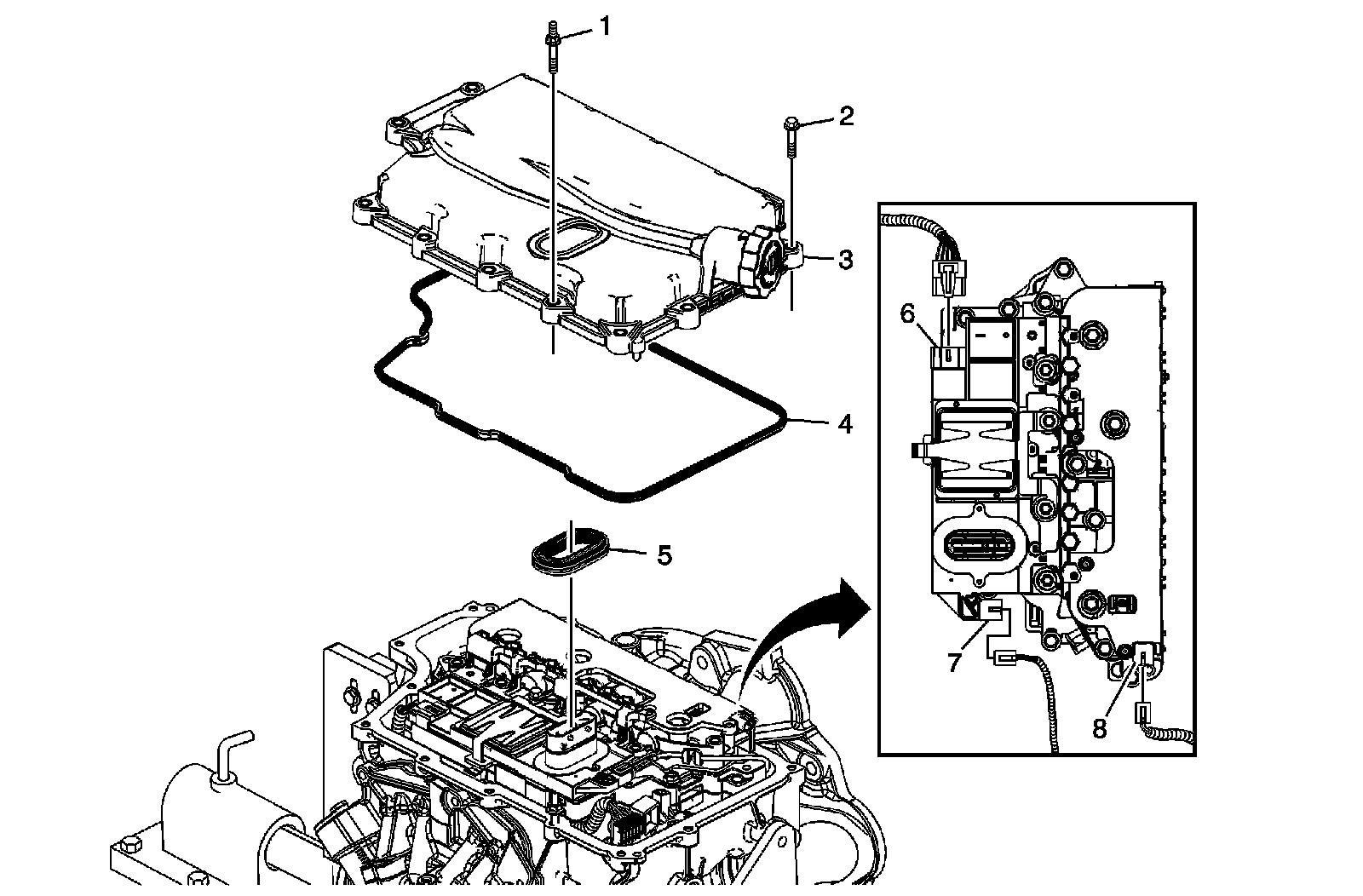

Control Valve Body Cover Removal

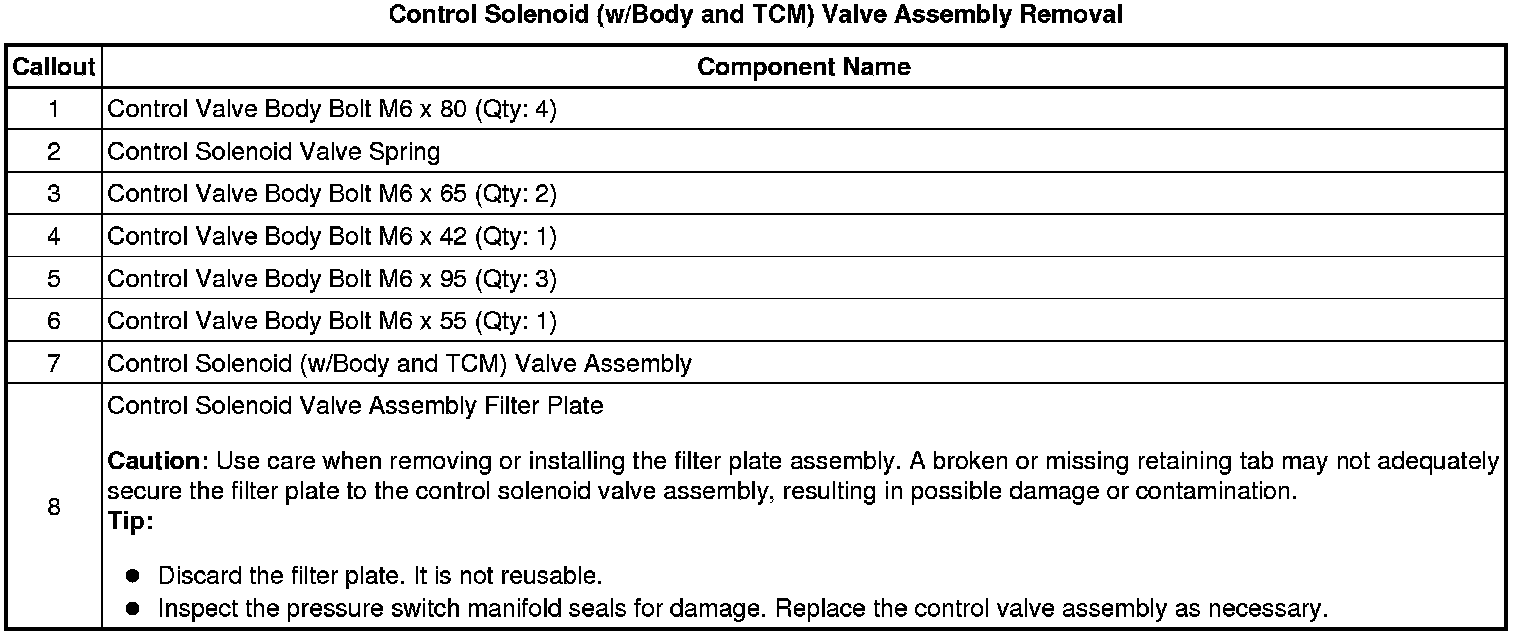

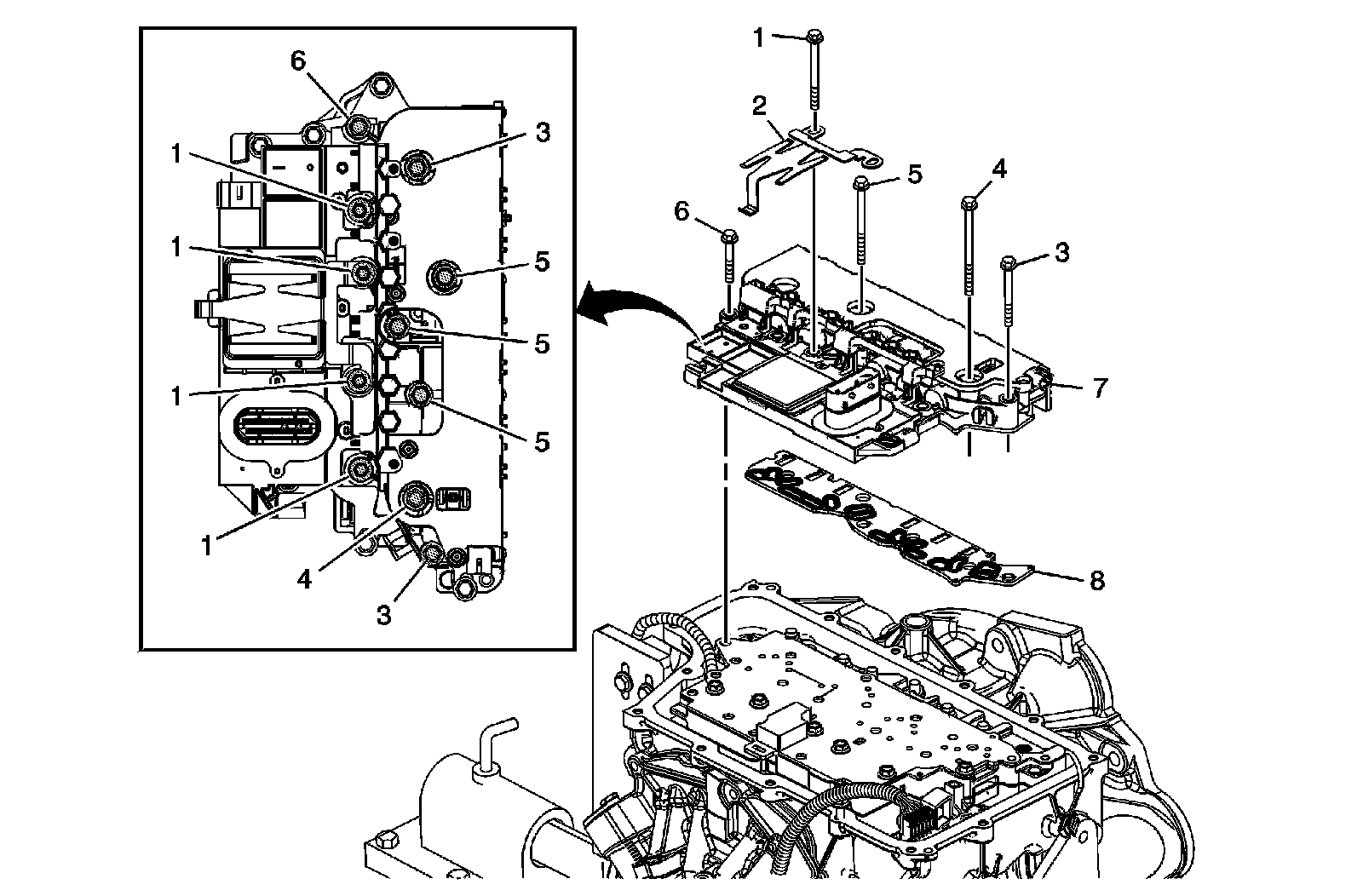

Control Solenoid (w/Body and TCM) Valve Assembly Removal

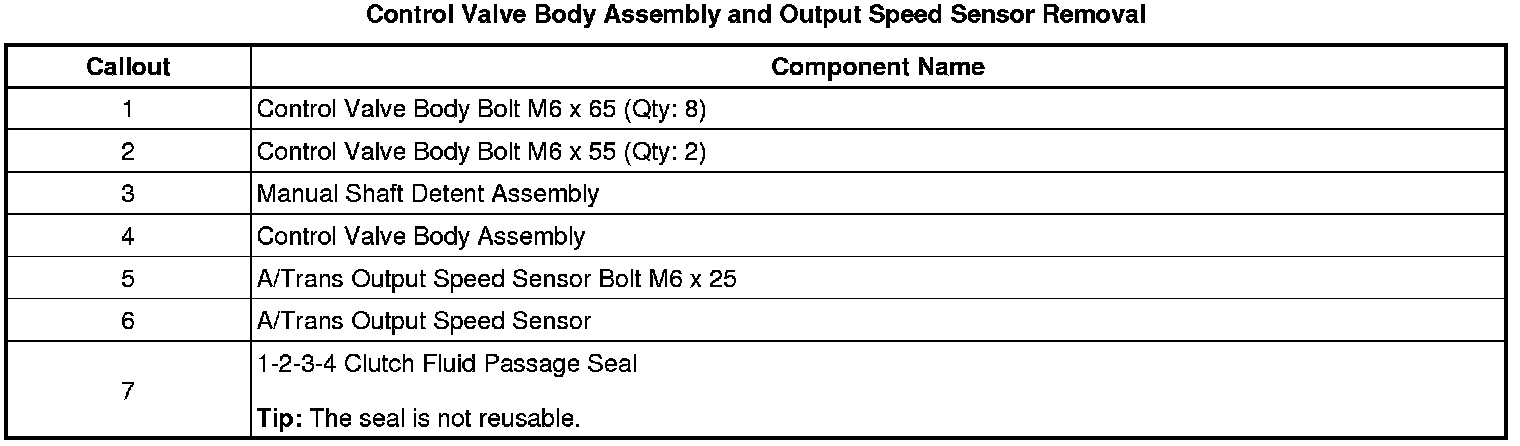

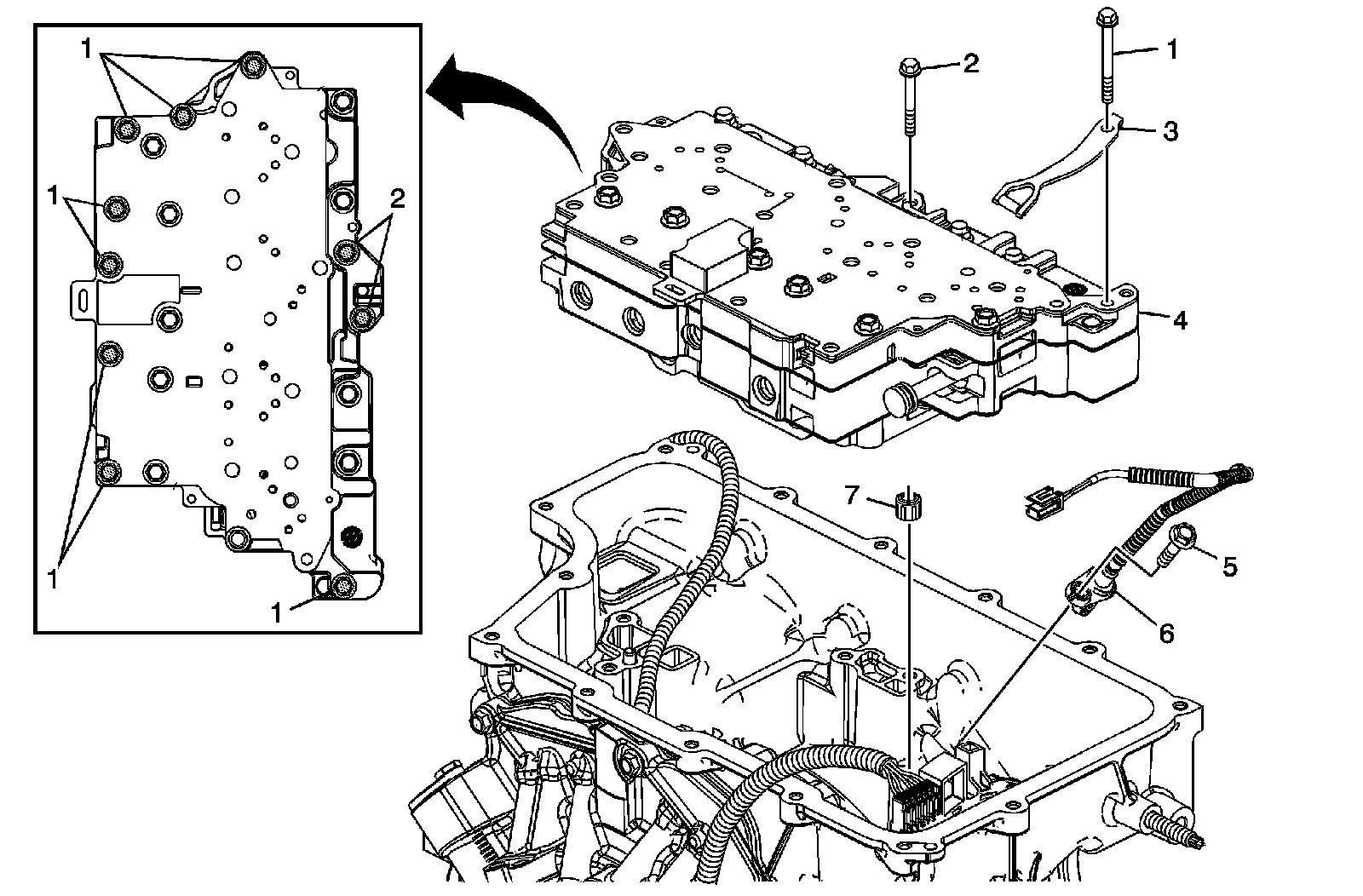

Control Valve Body Assembly and Output Speed Sensor Removal
