29. Torque Converter and Differential Housing Assembly Assemble




Torque Converter and Differential Housing Assembly Assemble

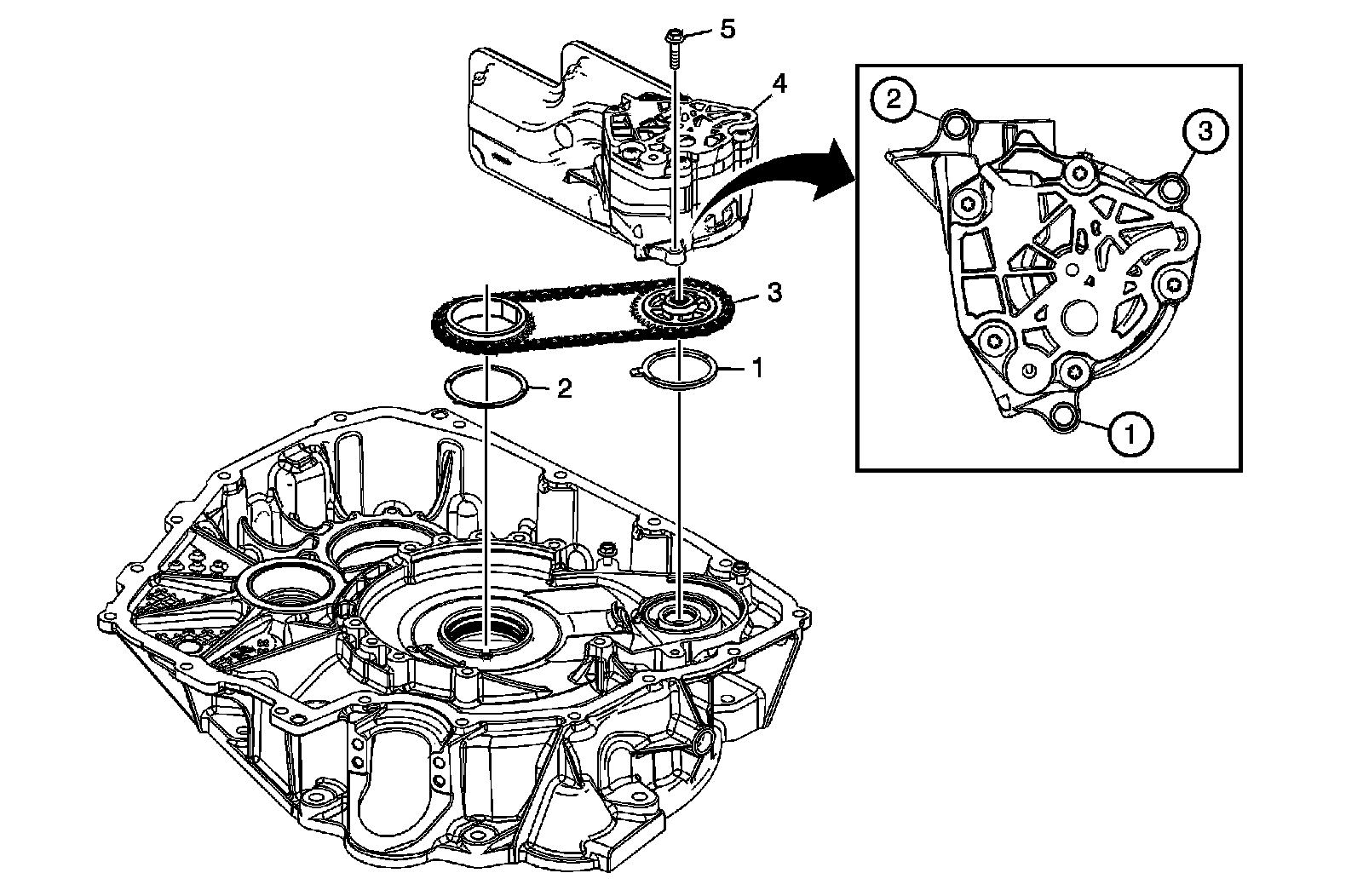

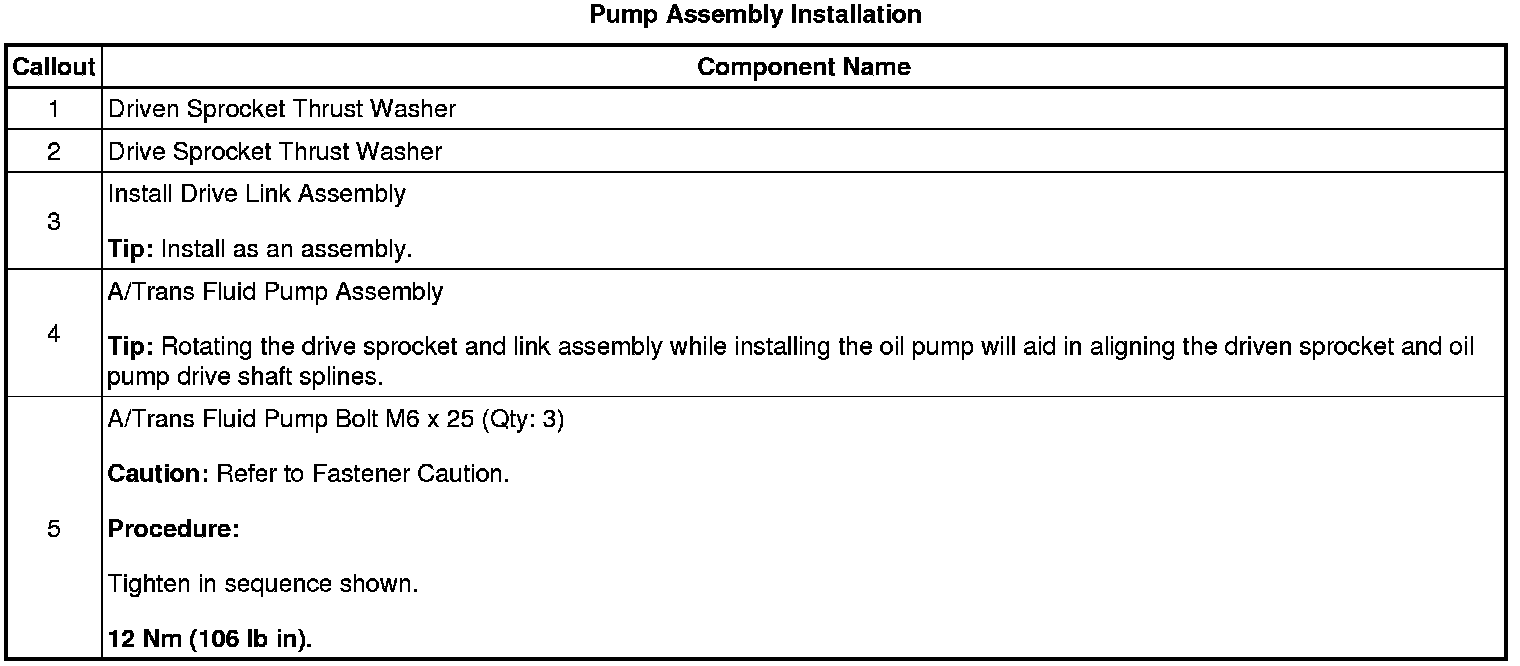

Pump Assembly Installation

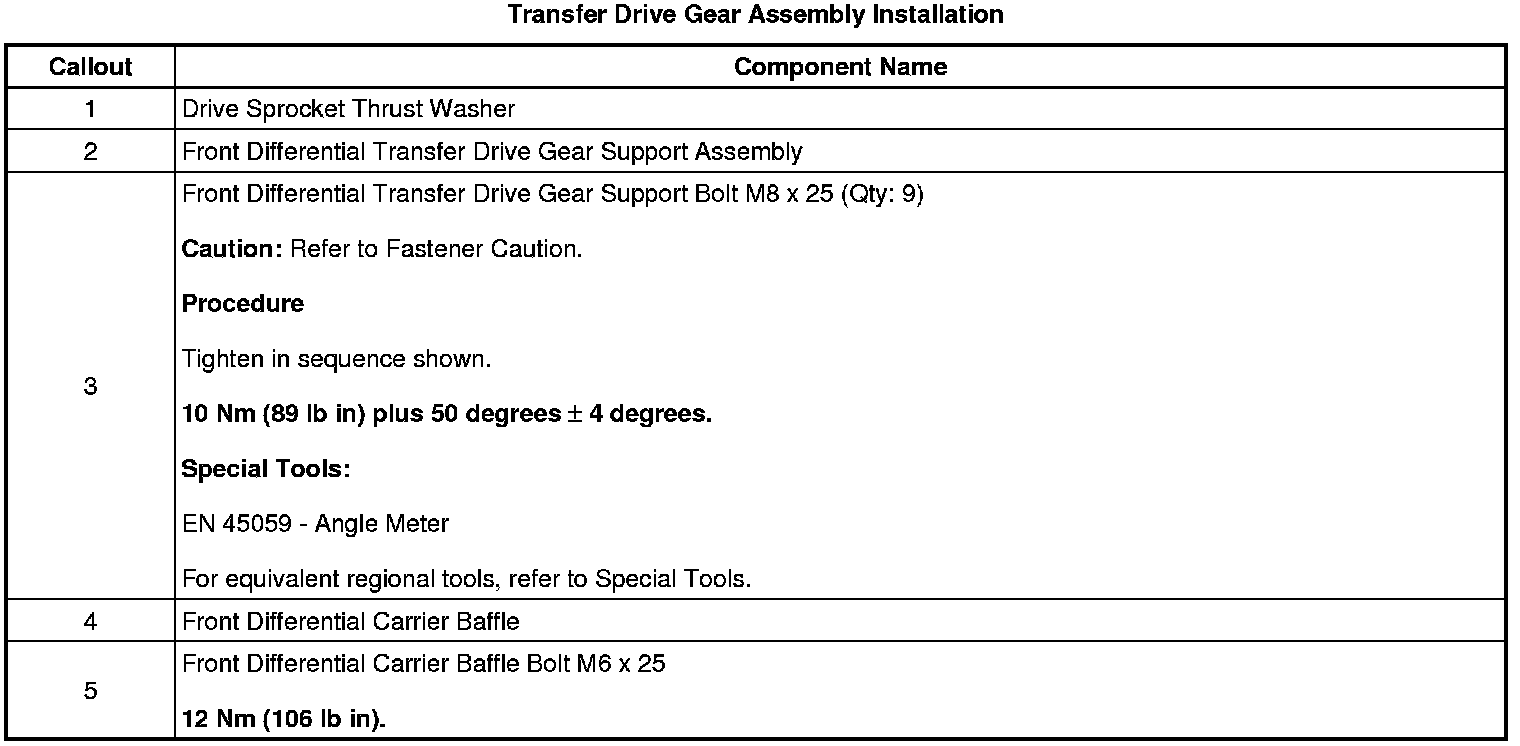

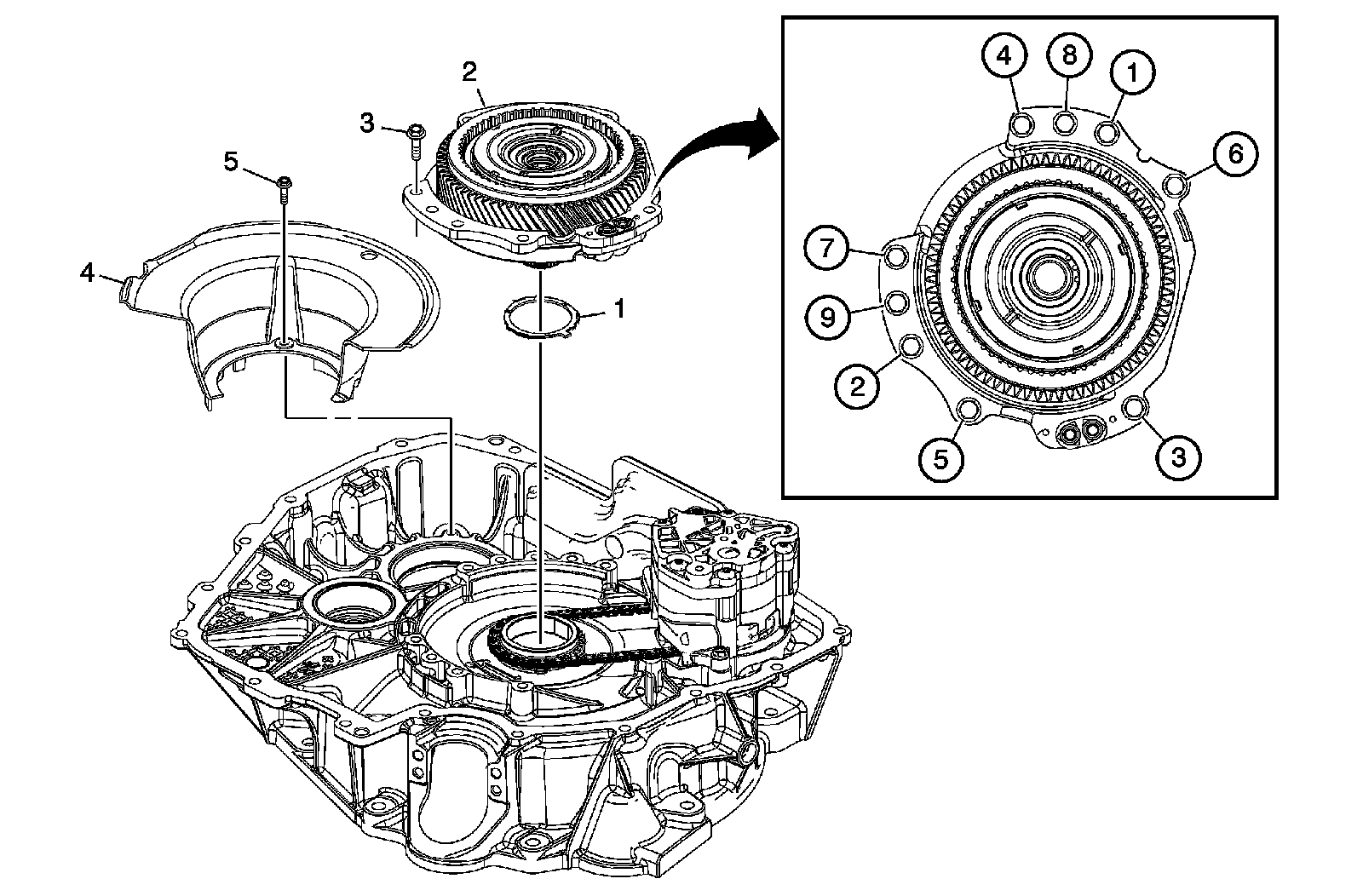

Transfer Drive Gear Assembly Installation
