28. Front Differential Drive Pinion Gear Bearing Thrust Washer and Front Differential Bearing Washer Measurement




Front Differential Drive Pinion Gear Bearing Thrust Washer and Front Differential Bearing Washer Measurement

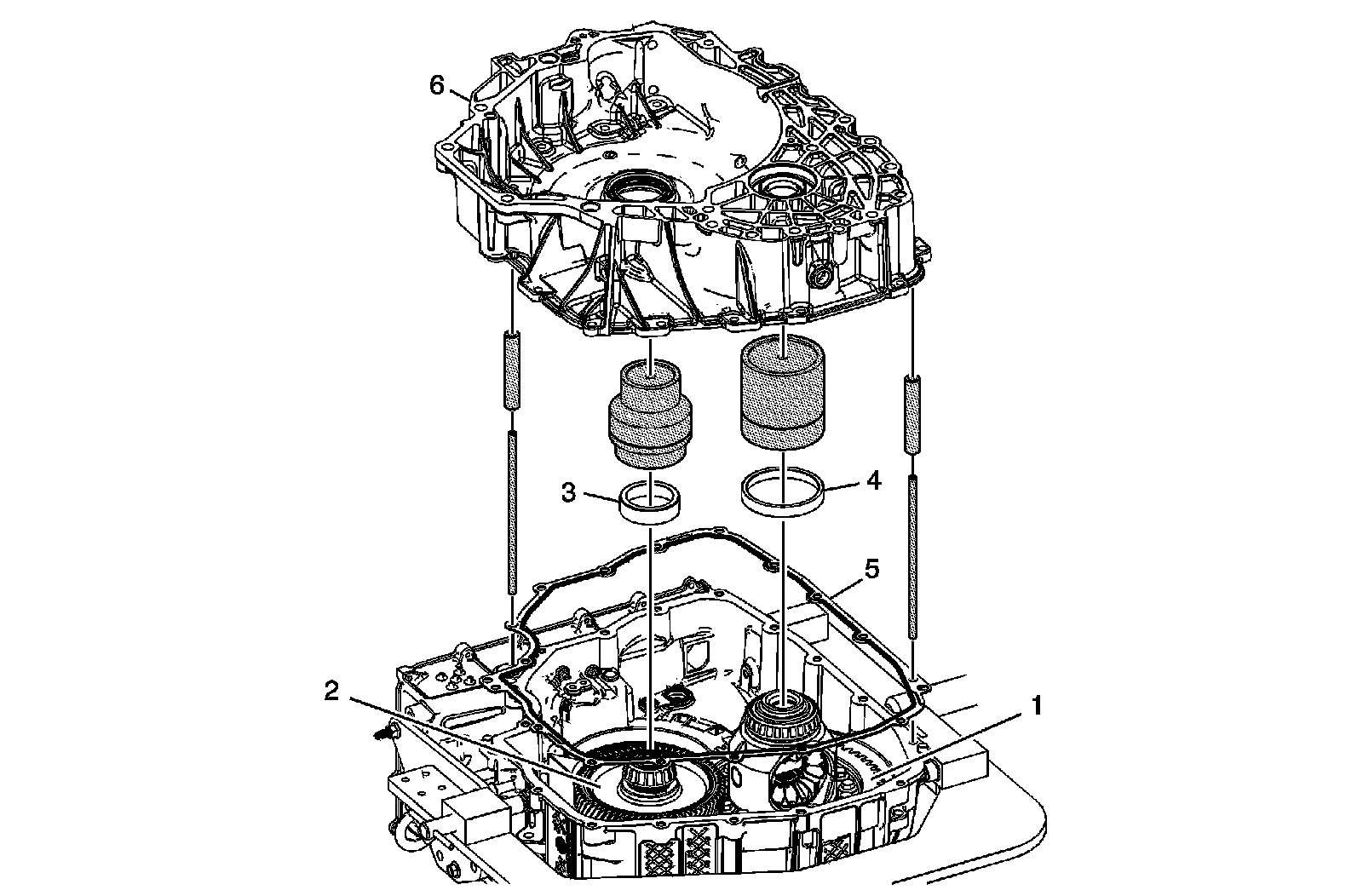

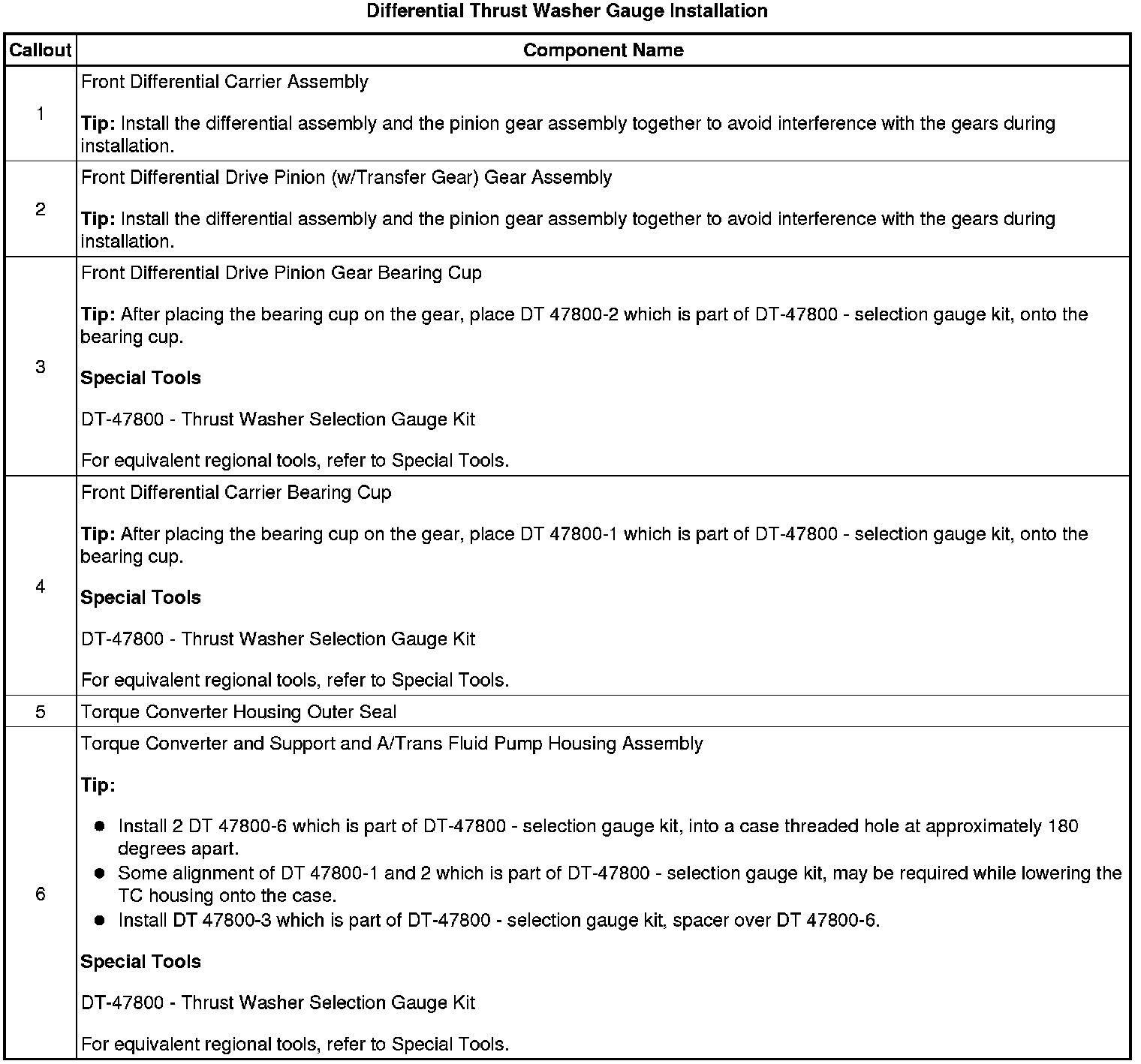

Differential Thrust Washer Gauge Installation

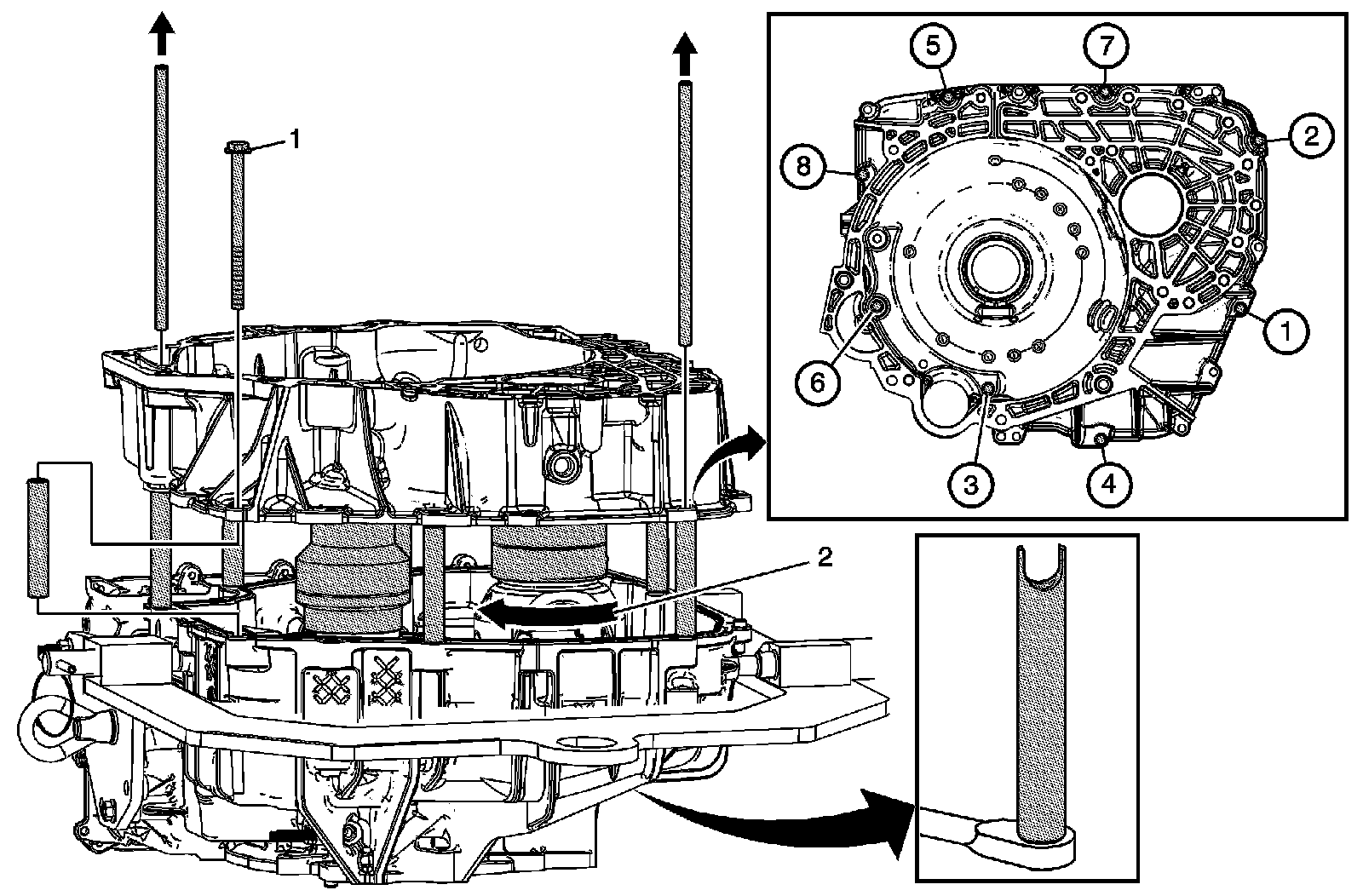

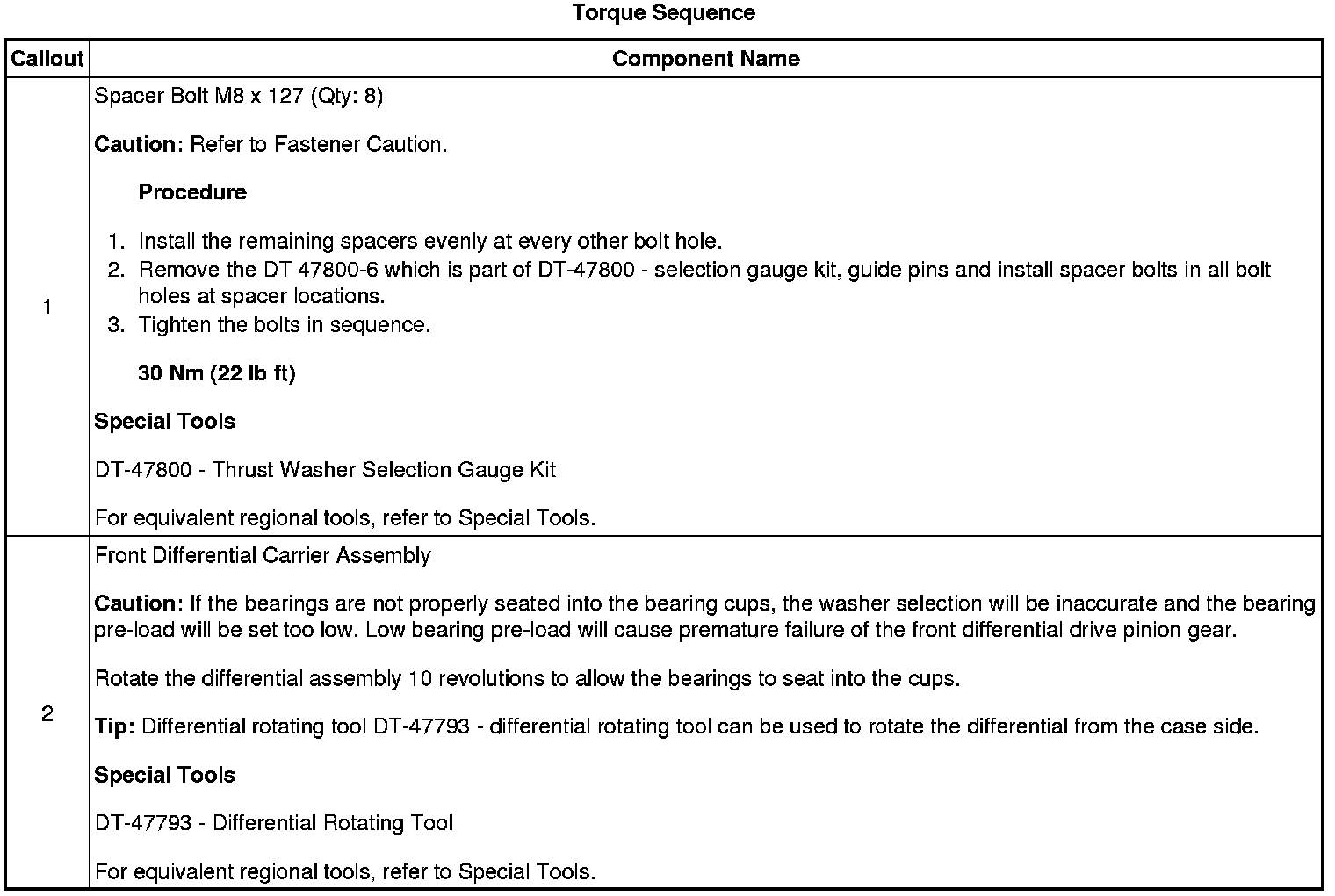

Torque Sequence

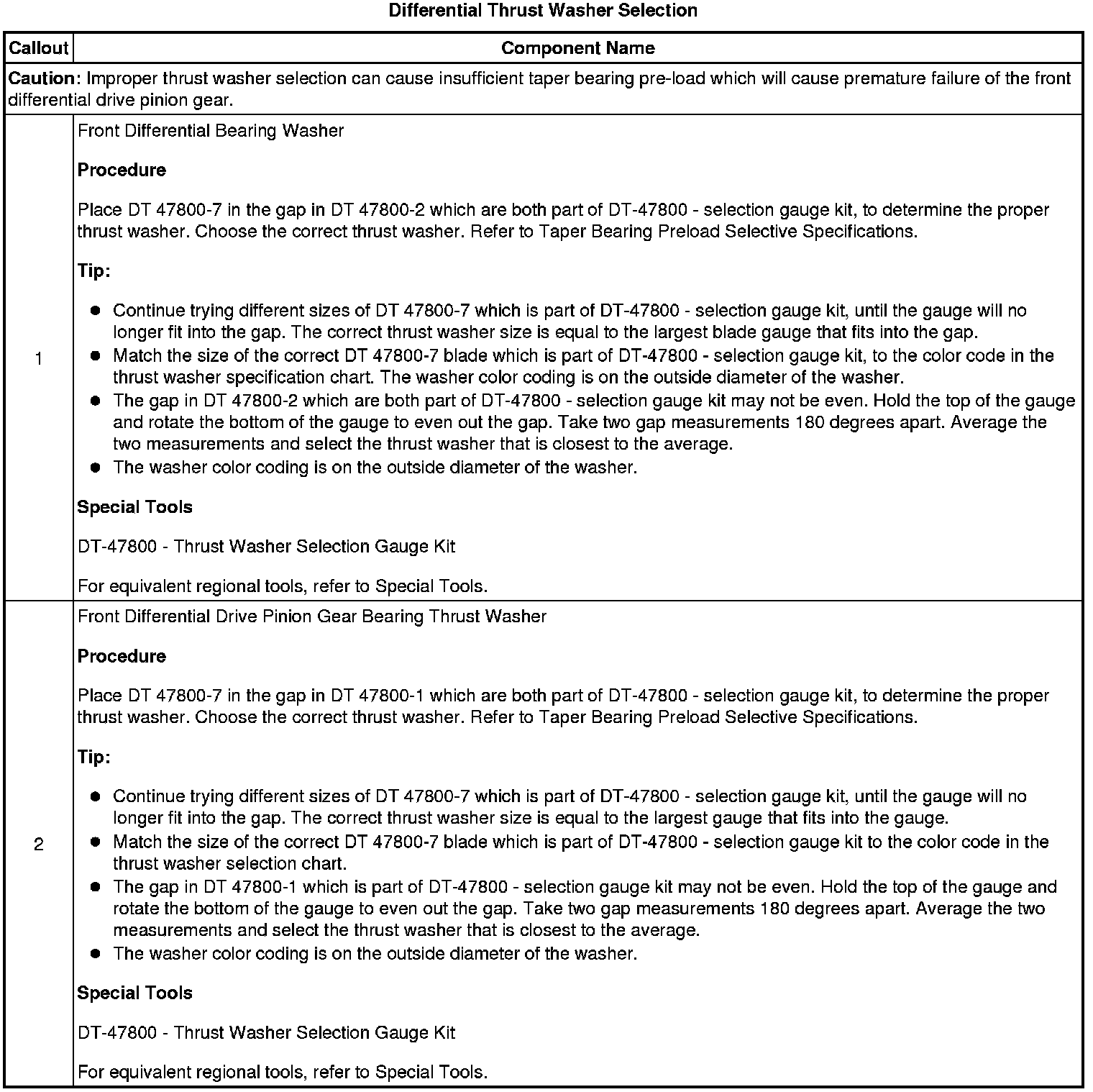

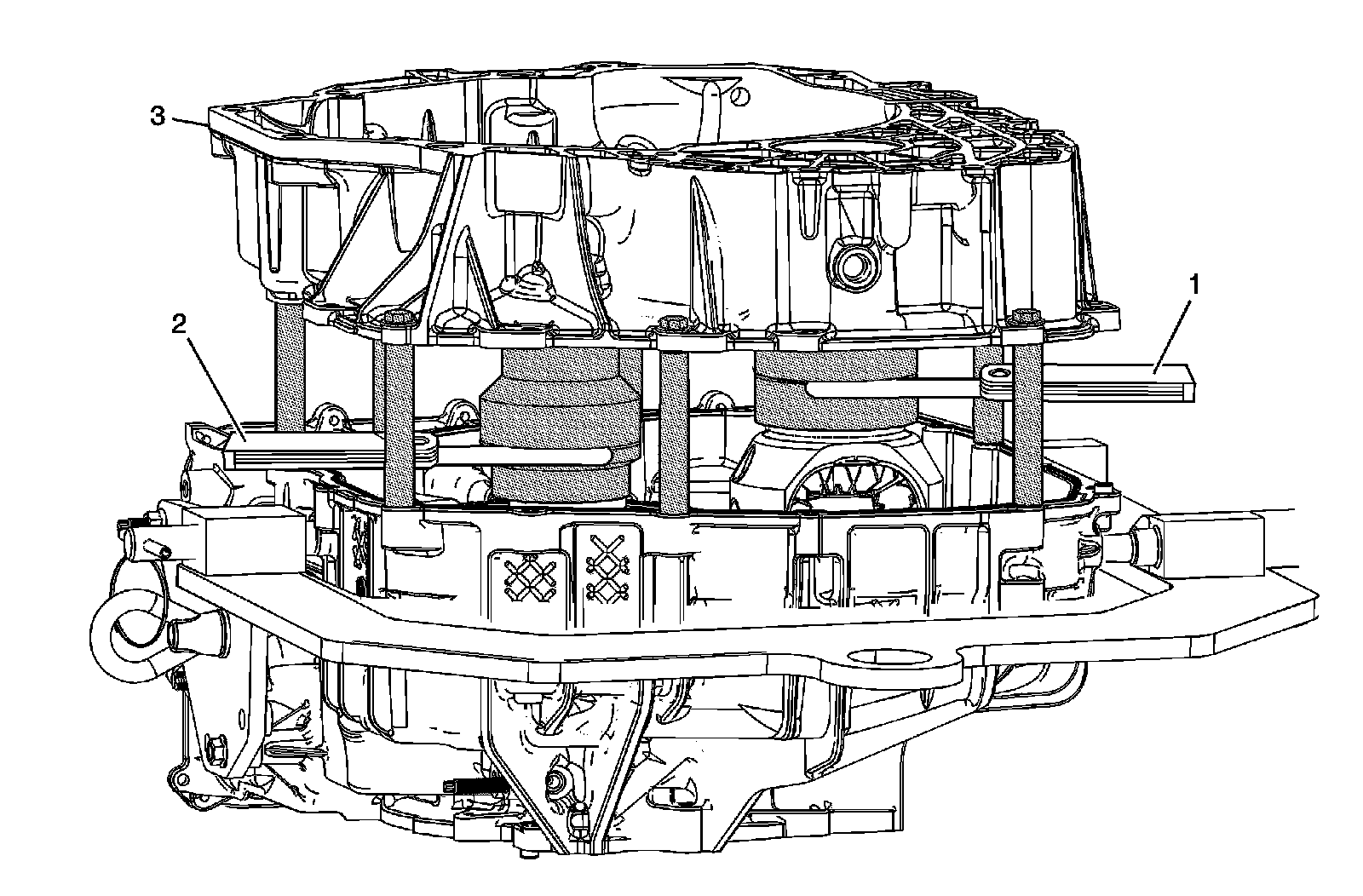

Differential Thrust Washer Selection
