26. Front Differential Transfer Drive Gear Support Assembly Assemble




Front Differential Transfer Drive Gear Support Assembly Assemble

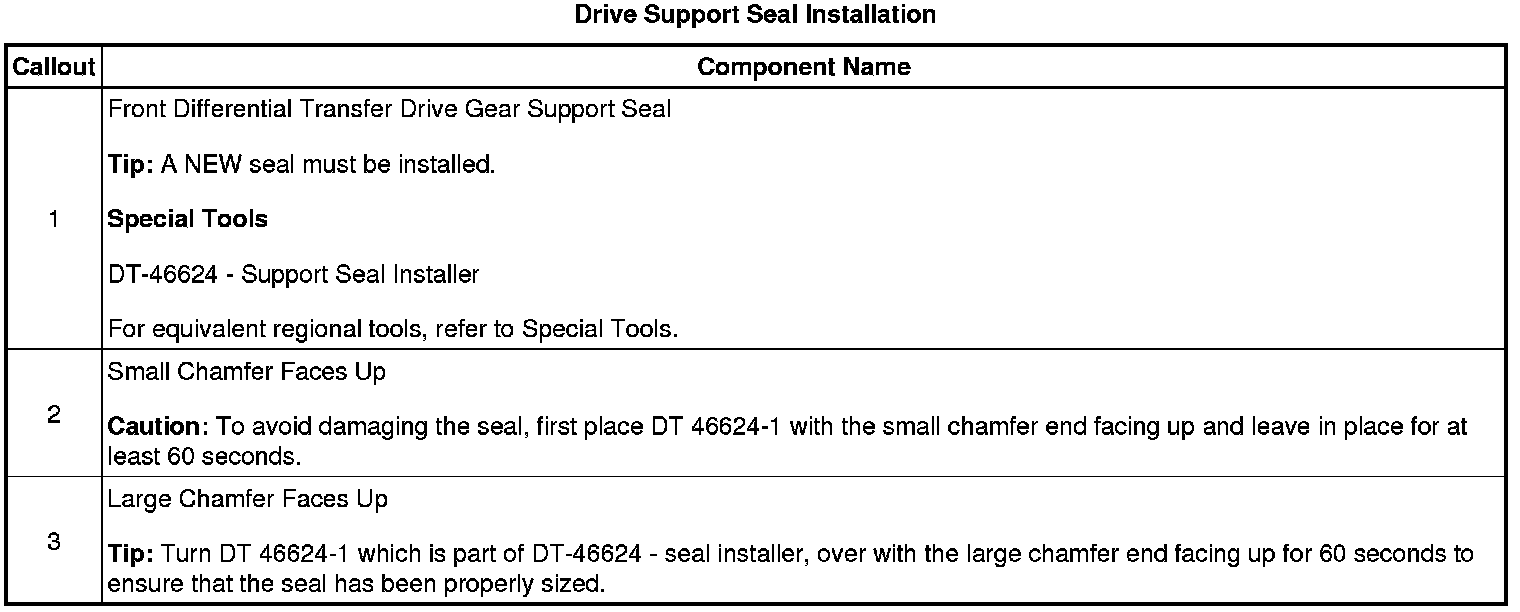

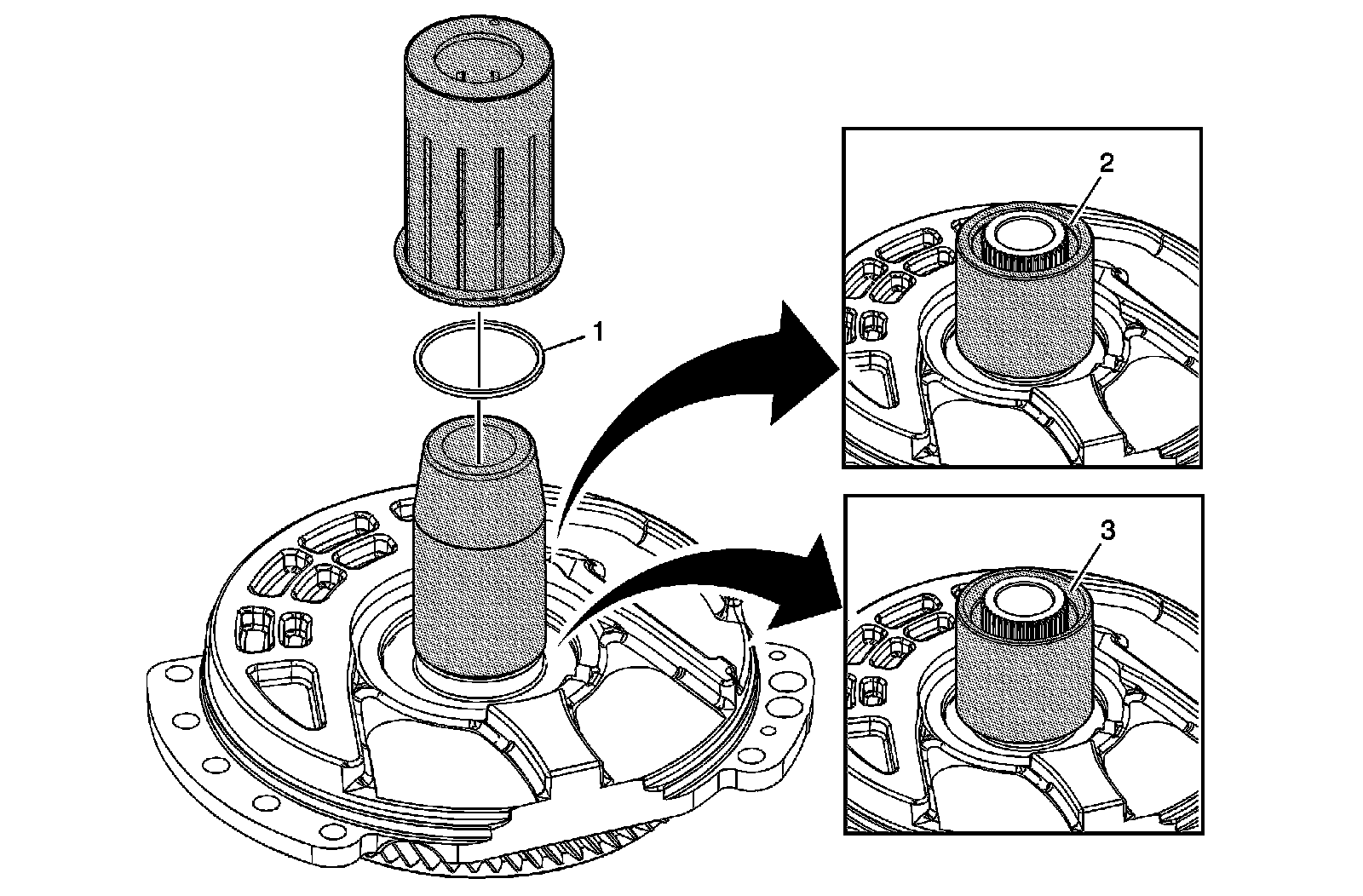

Drive Support Seal Installation

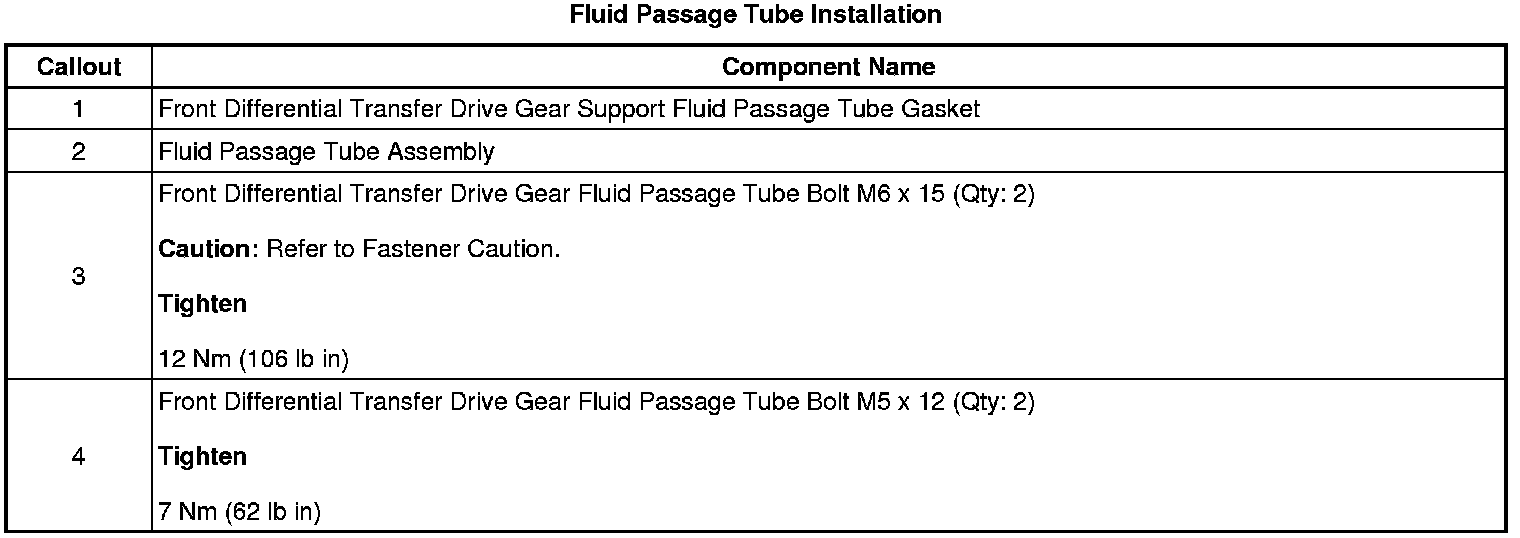

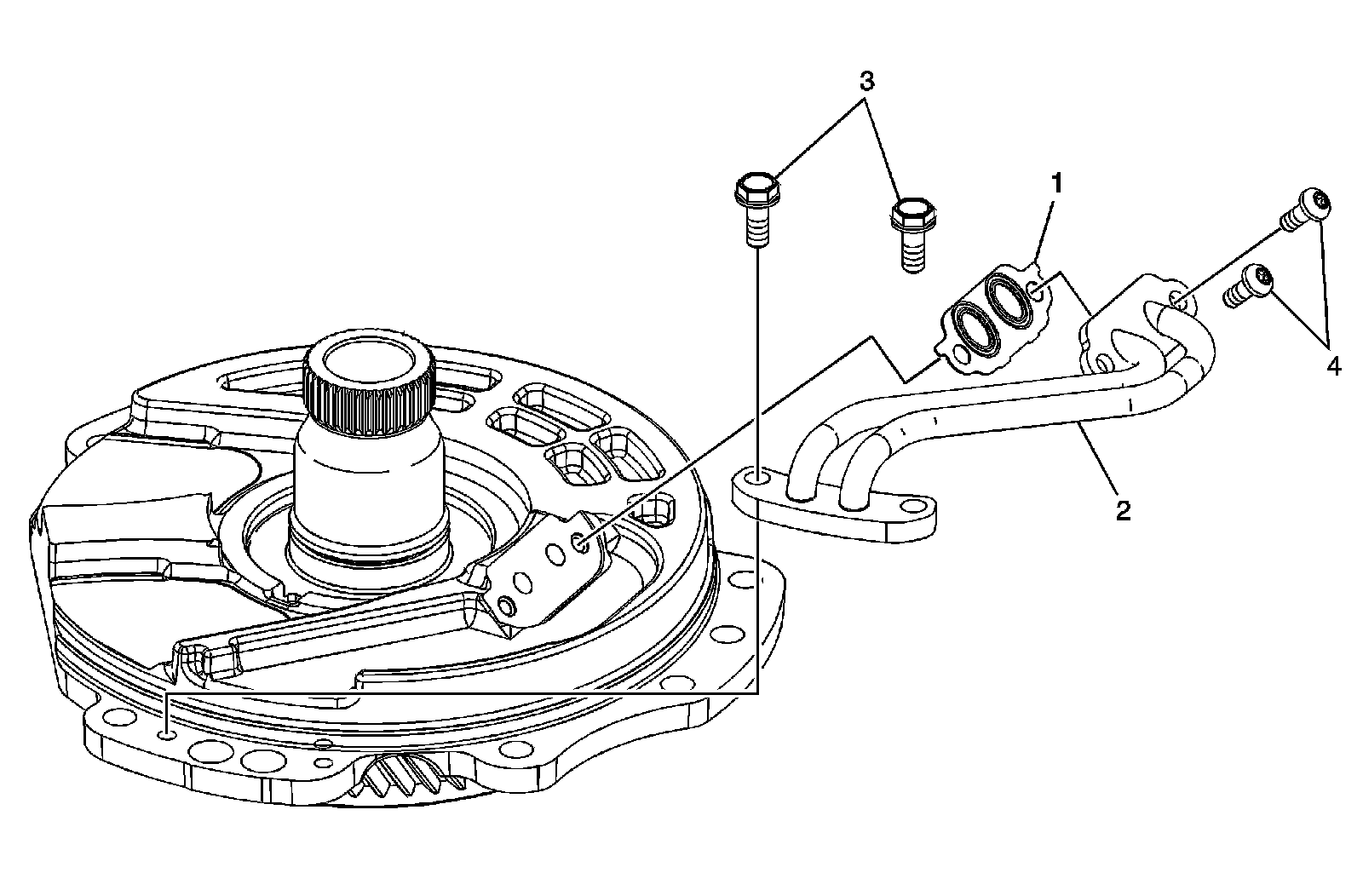

Fluid Passage Tube Installation

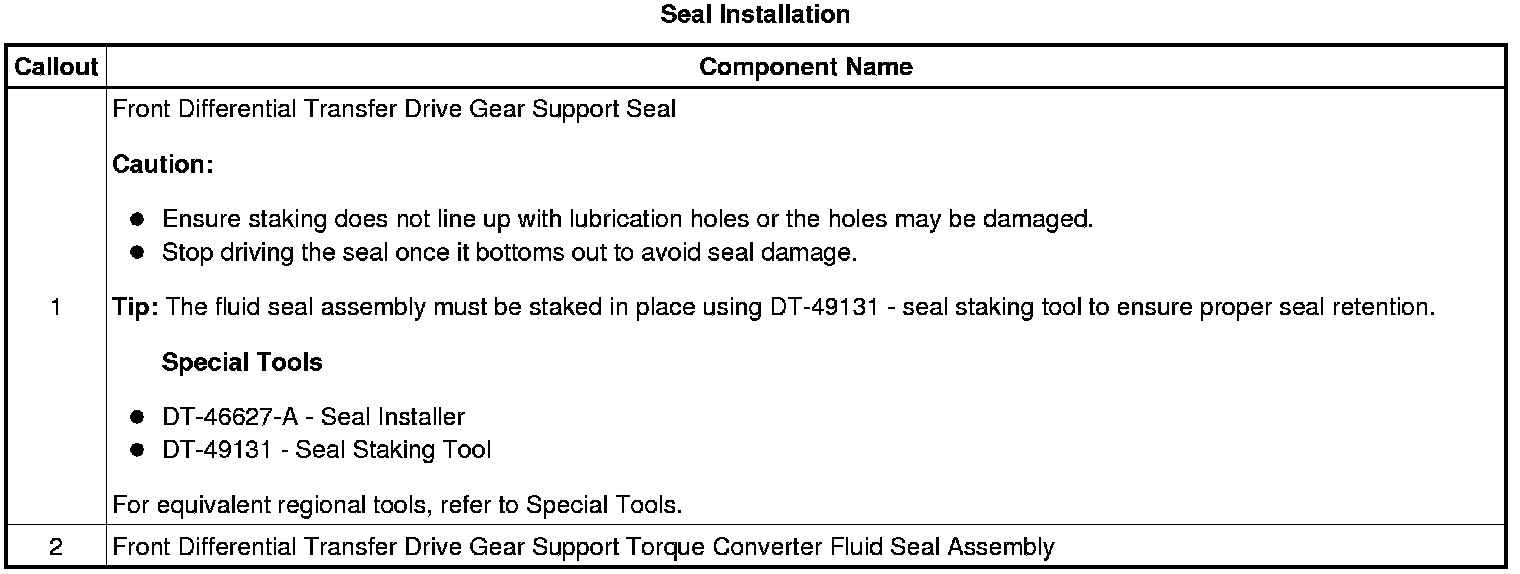

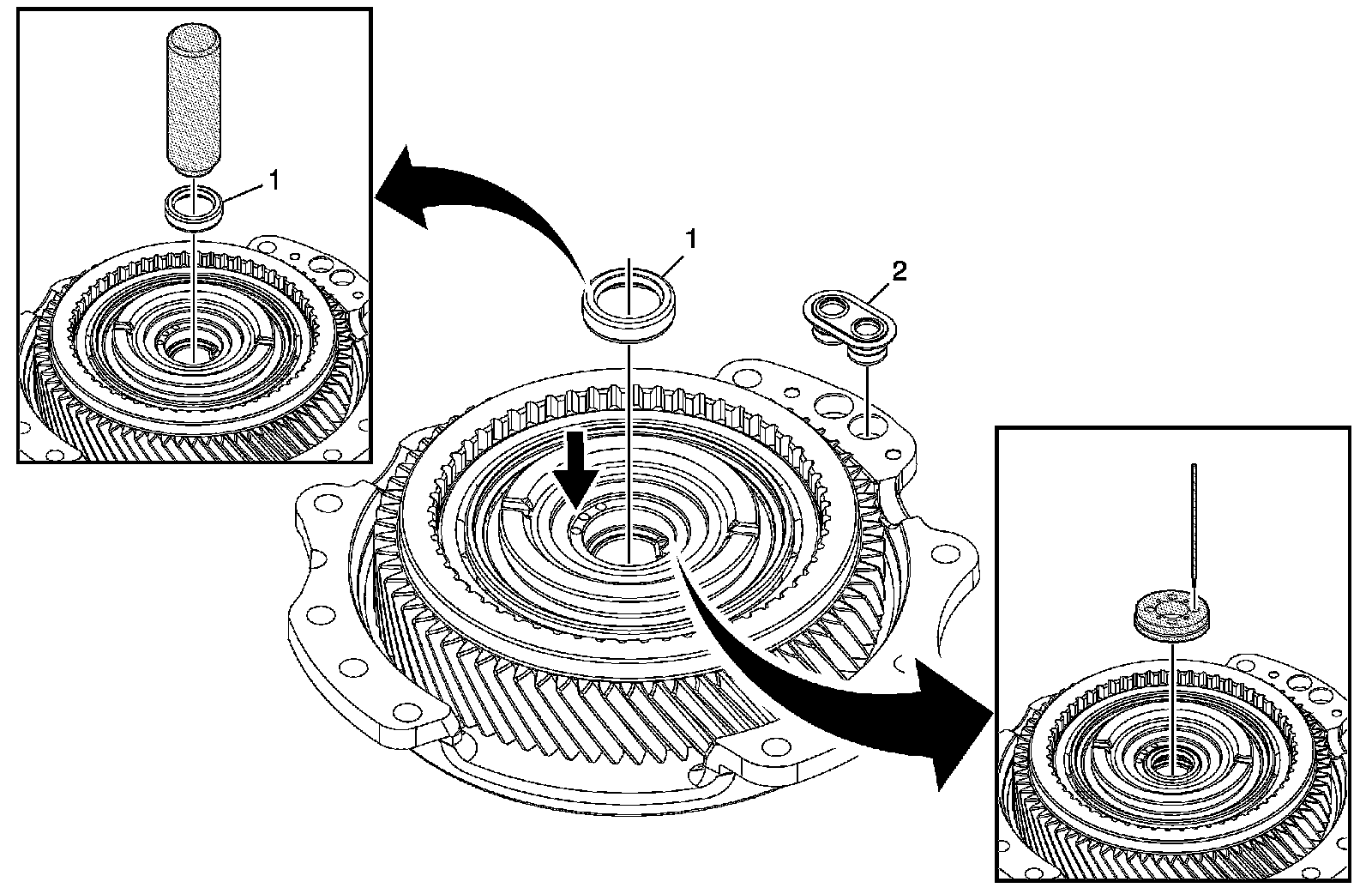

Seal Installation
