Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 20. Front Differential Carrier Bearing Cup and Washer Replacement - Torque Converter Housing Side

20. Front Differential Carrier Bearing Cup and Washer Replacement - Torque Converter Housing Side

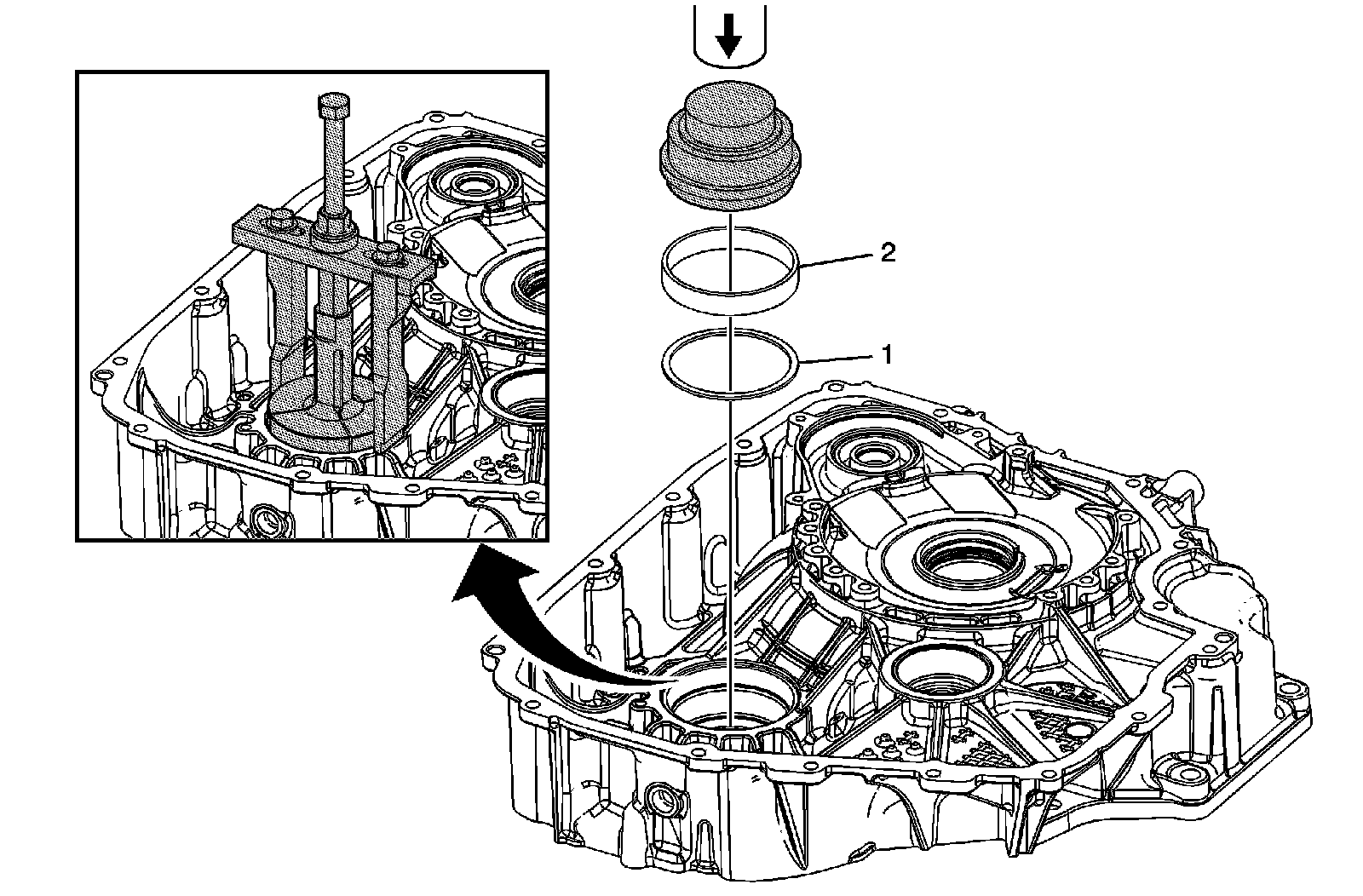

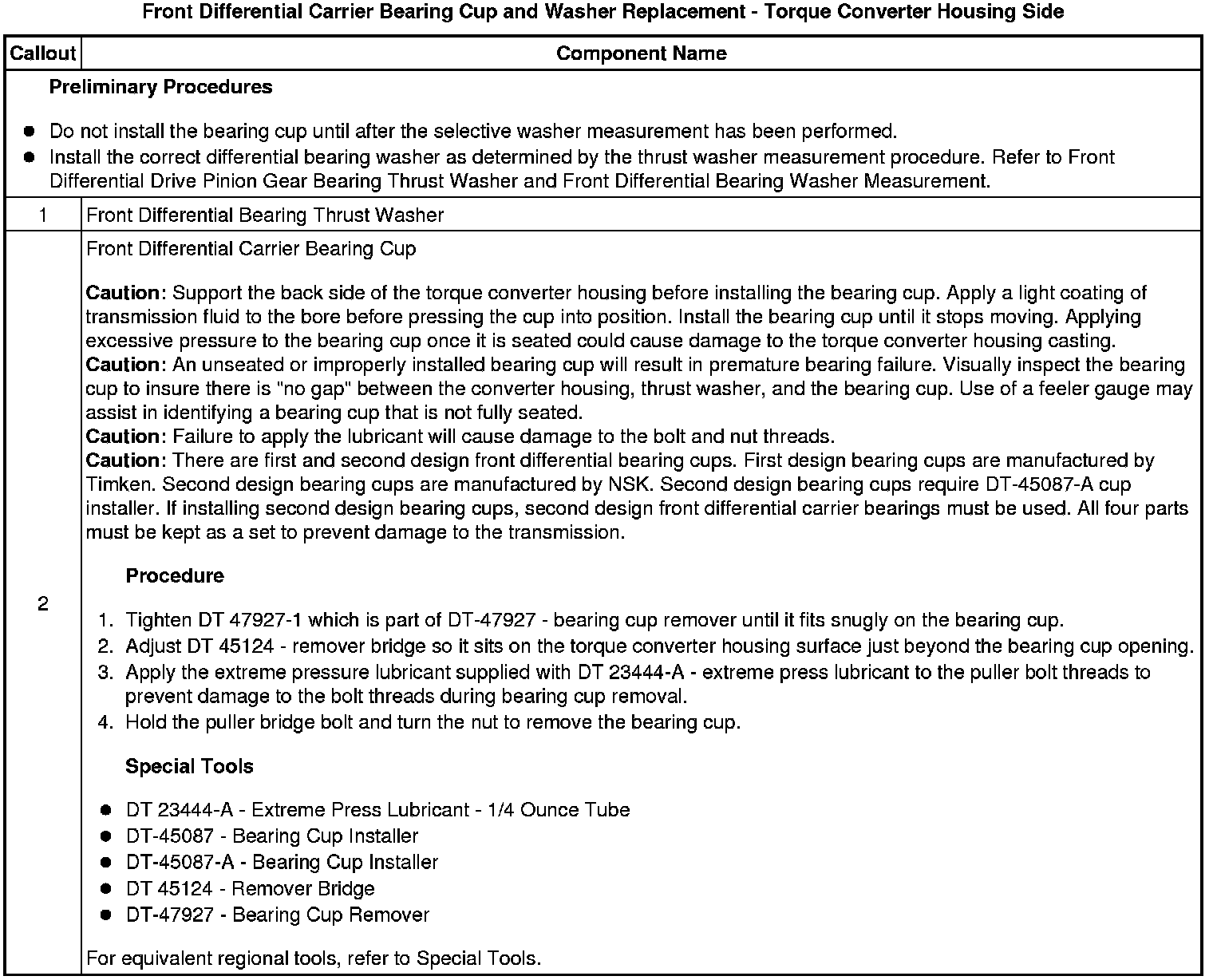

Front Differential Carrier Bearing Cup and Washer Replacement - Torque Converter Housing Side
