Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 19. Torque Converter and Differential Housing Assembly Disassemble

19. Torque Converter and Differential Housing Assembly Disassemble

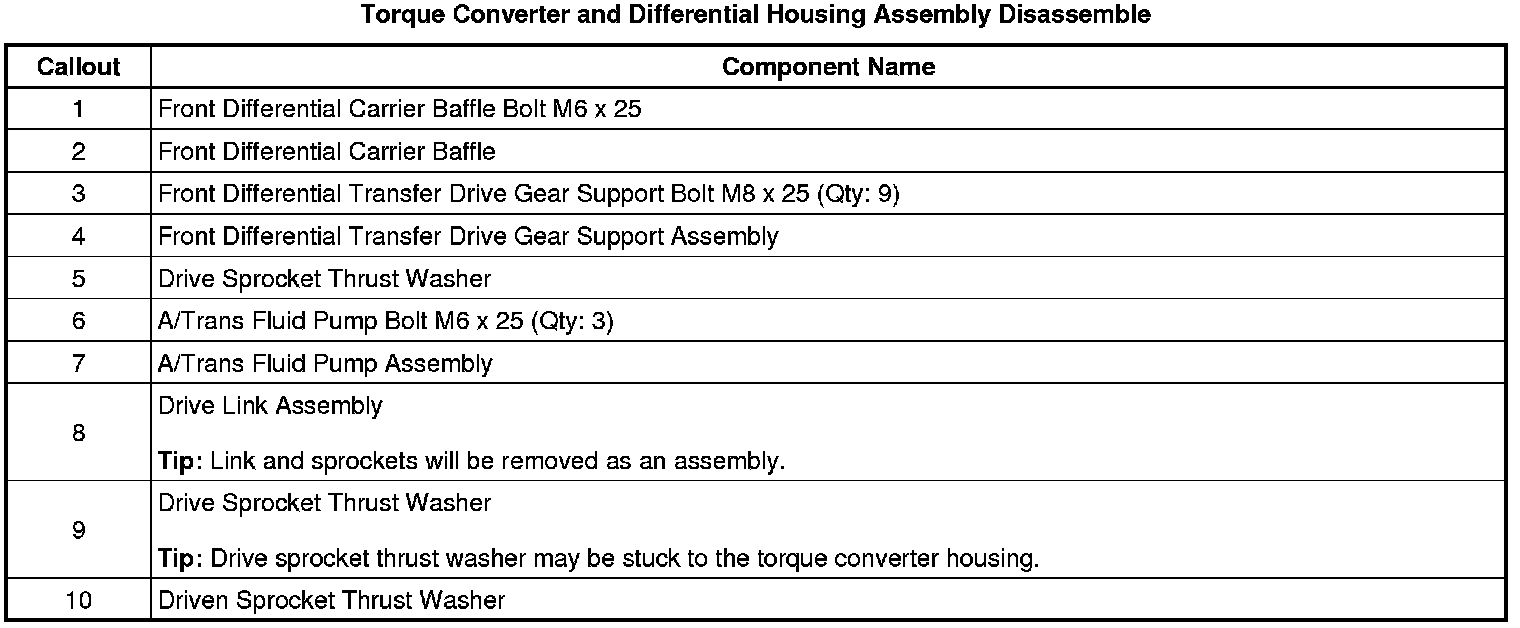

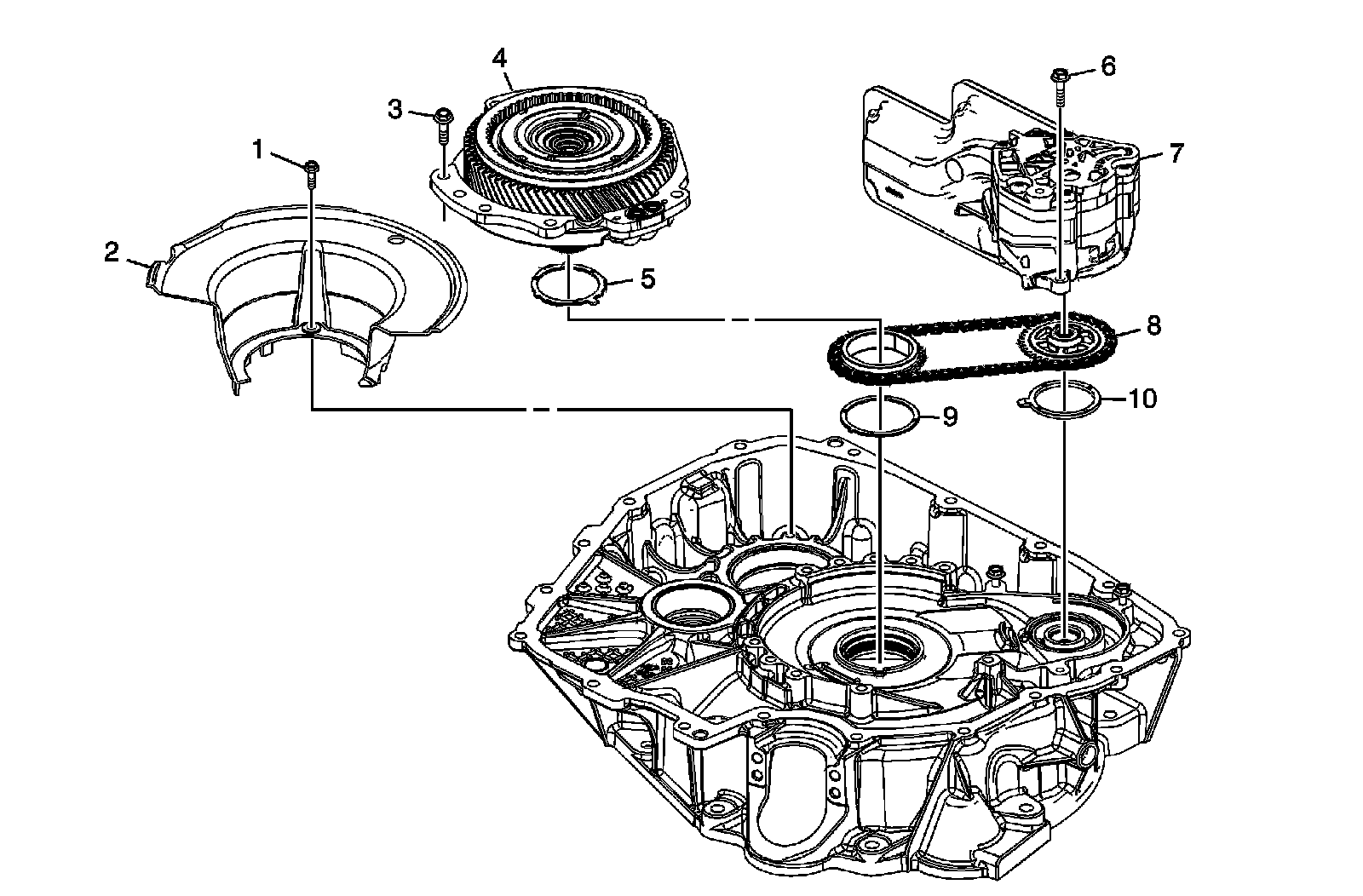

Torque Converter and Differential Housing Assembly Disassemble
