Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 11. Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Removal

11. Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Removal

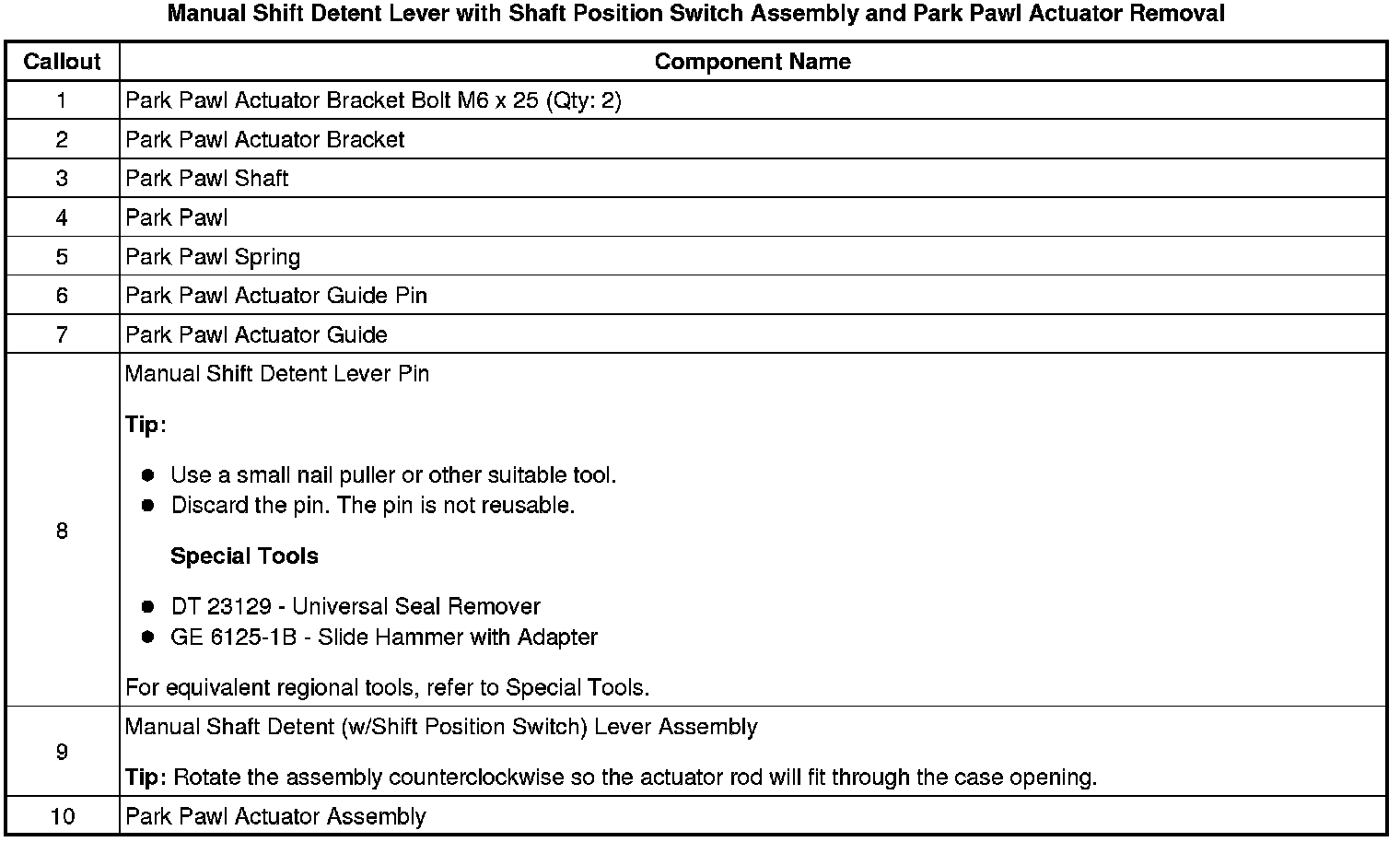

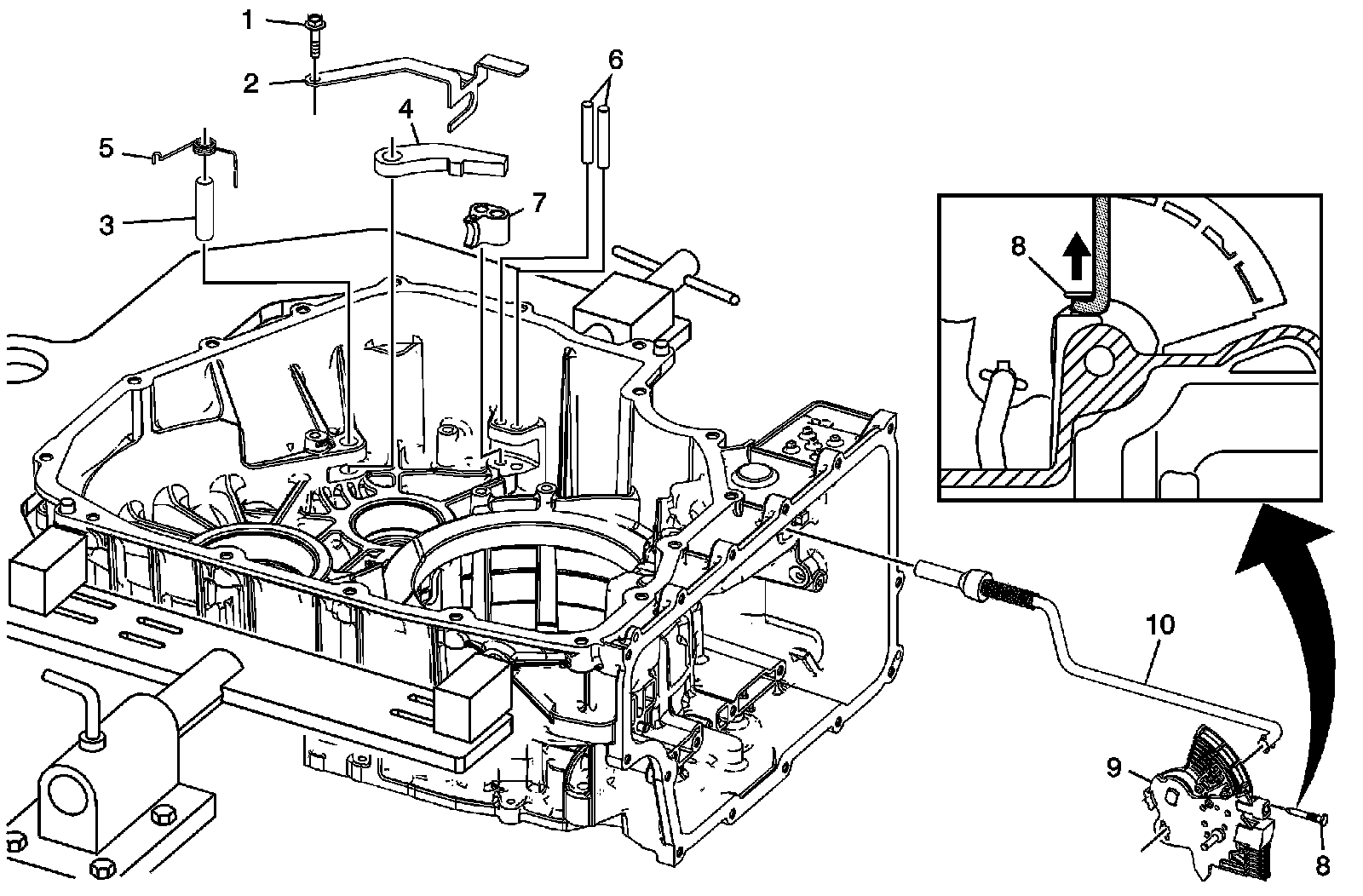

Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Removal
