Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Fluid Line/Hose >> Service and Repair >> Transmission Fluid Cooler Pipe Connector Replacement - Radiator

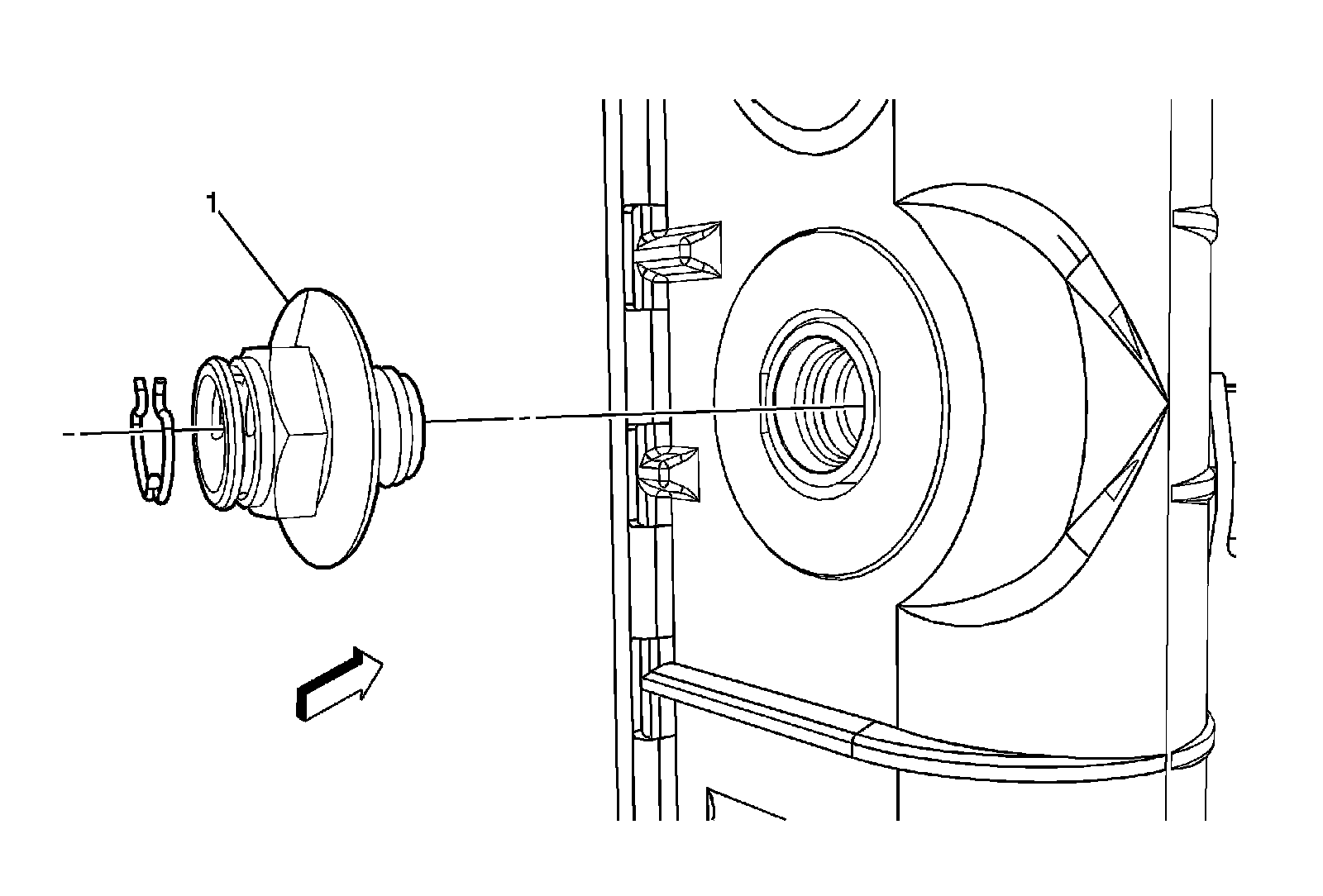

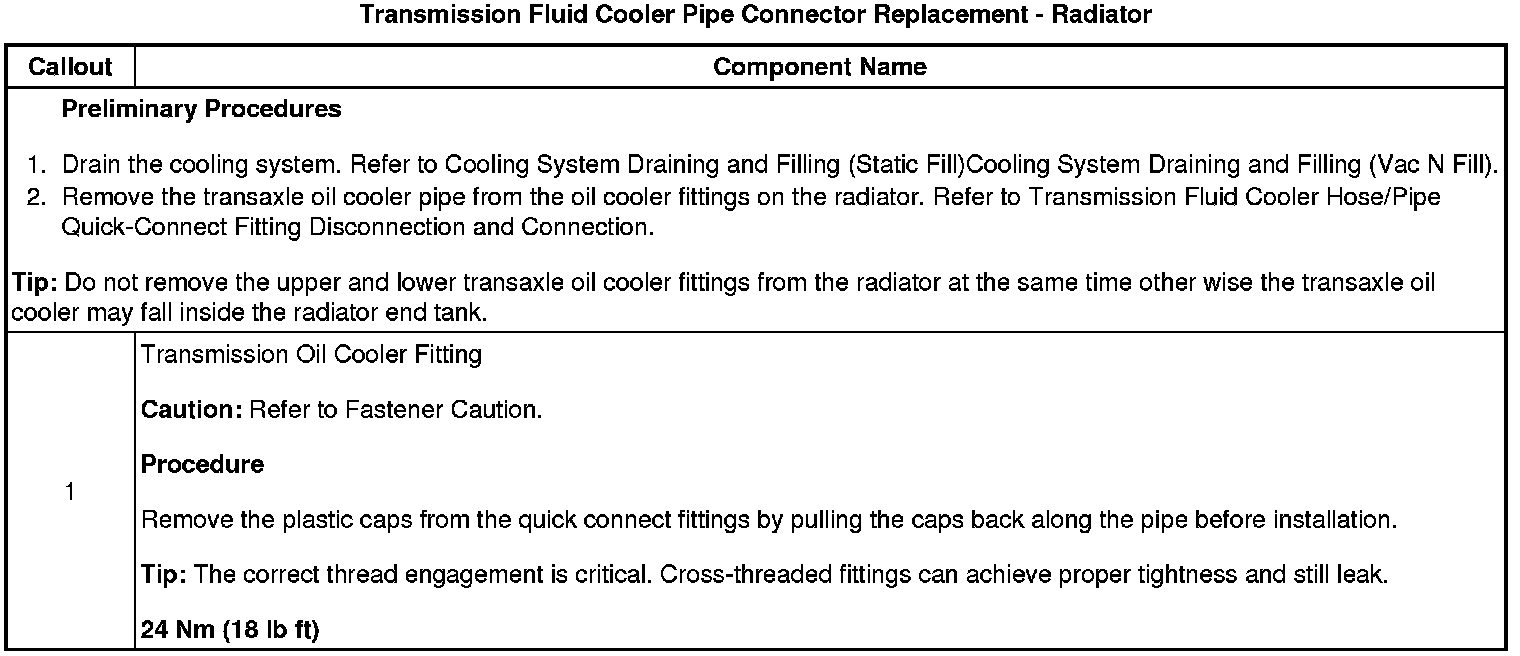

Transmission Fluid Cooler Pipe Connector Replacement - Radiator




Transmission Fluid Cooler Pipe Connector Replacement - Radiator
