Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Fluid Line/Hose >> Service and Repair >> Fluid Cooler Inlet Hose Replacement

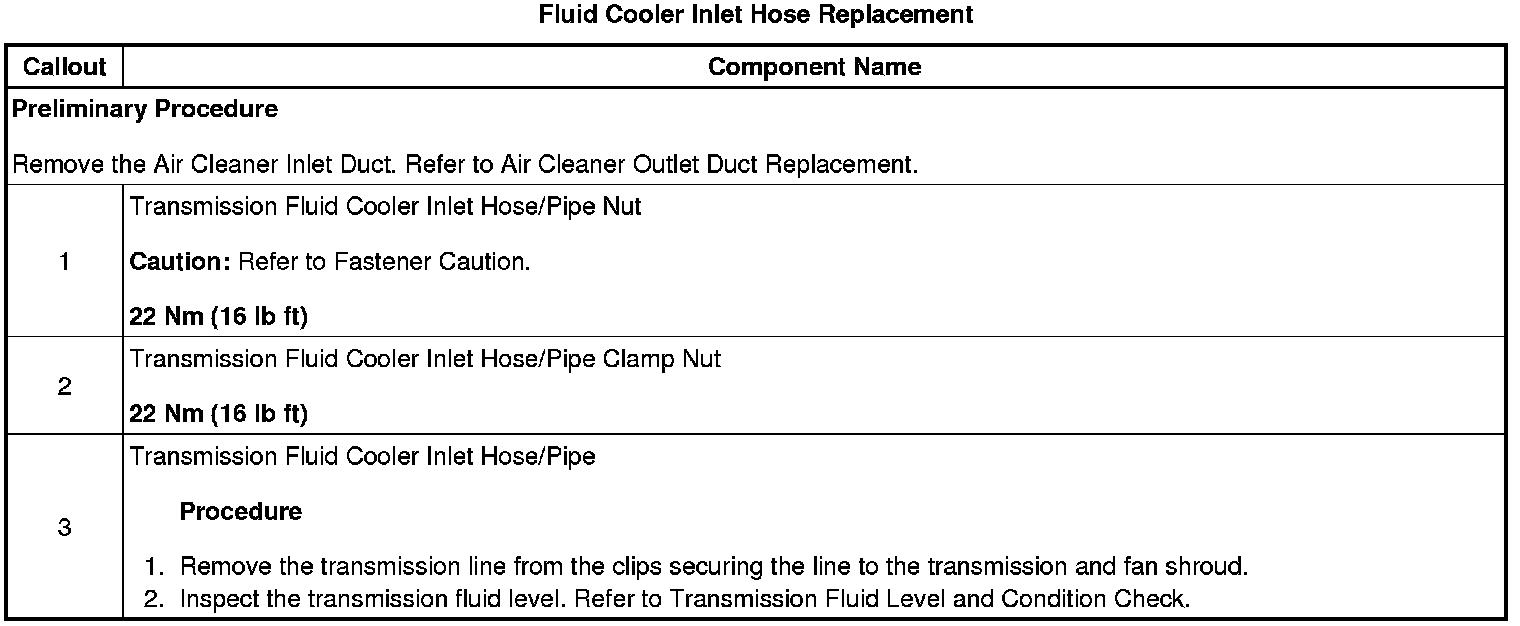

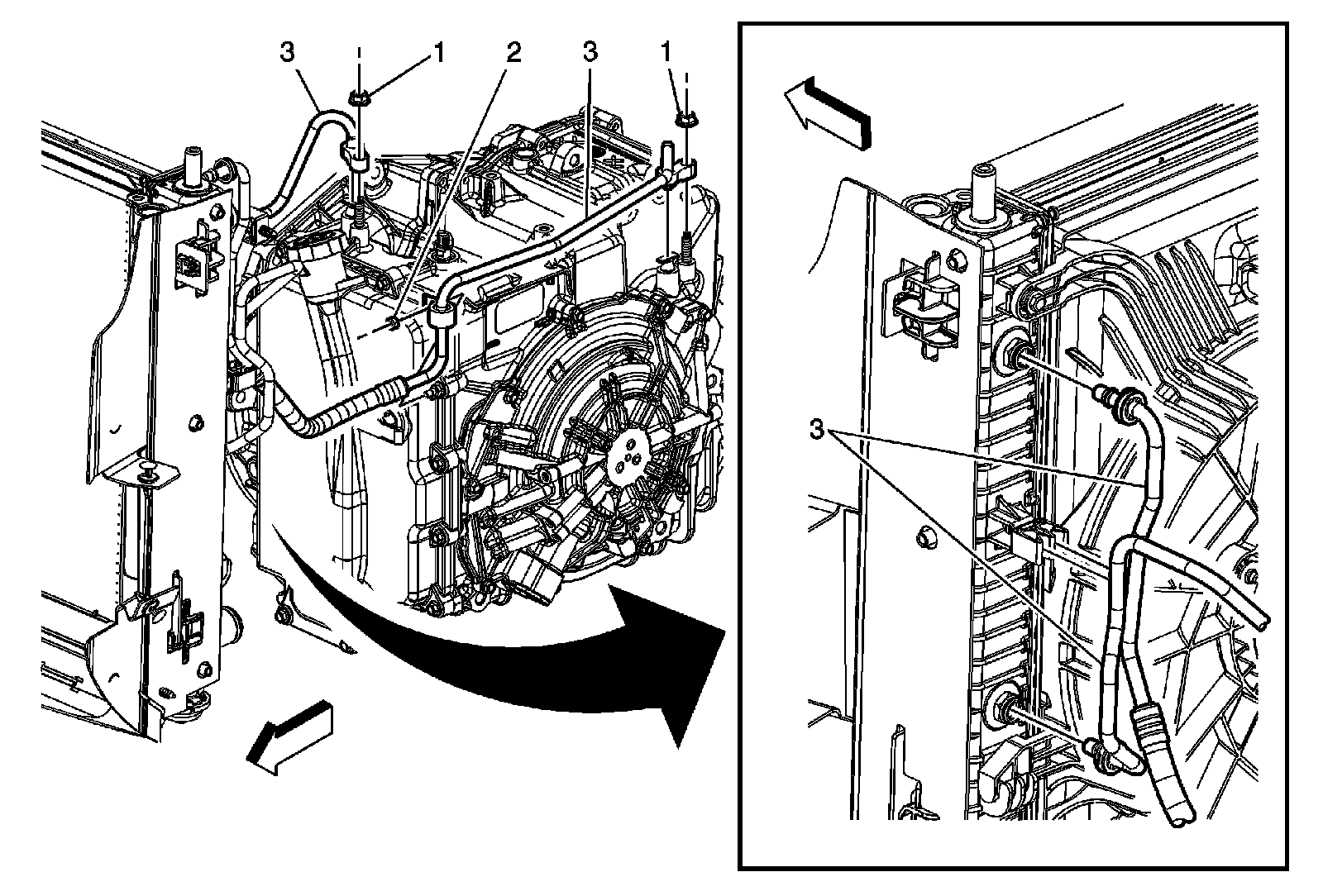

Fluid Cooler Inlet Hose Replacement




Fluid Cooler Inlet Hose Replacement
