Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Control Arm >> Control Arm Bushing >> Service and Repair >> Front Lower Control Arm Bushing Replacement

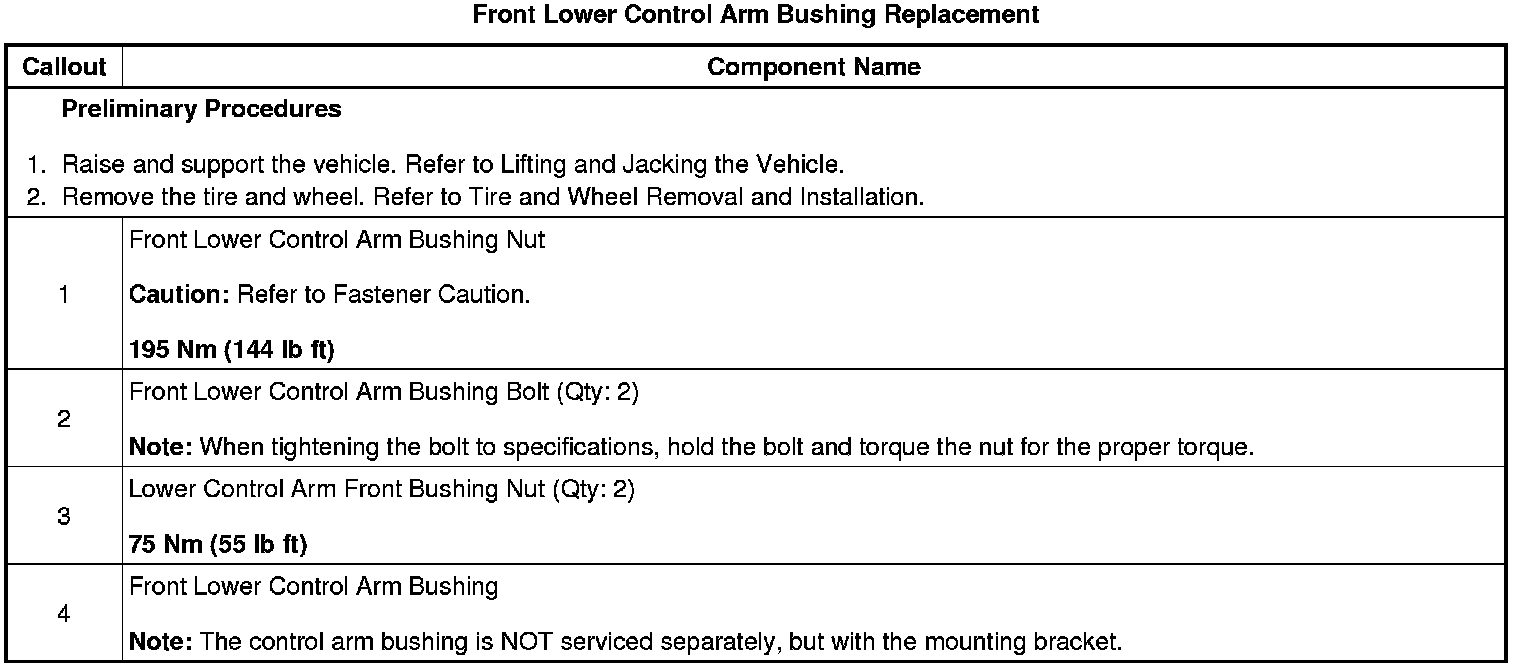

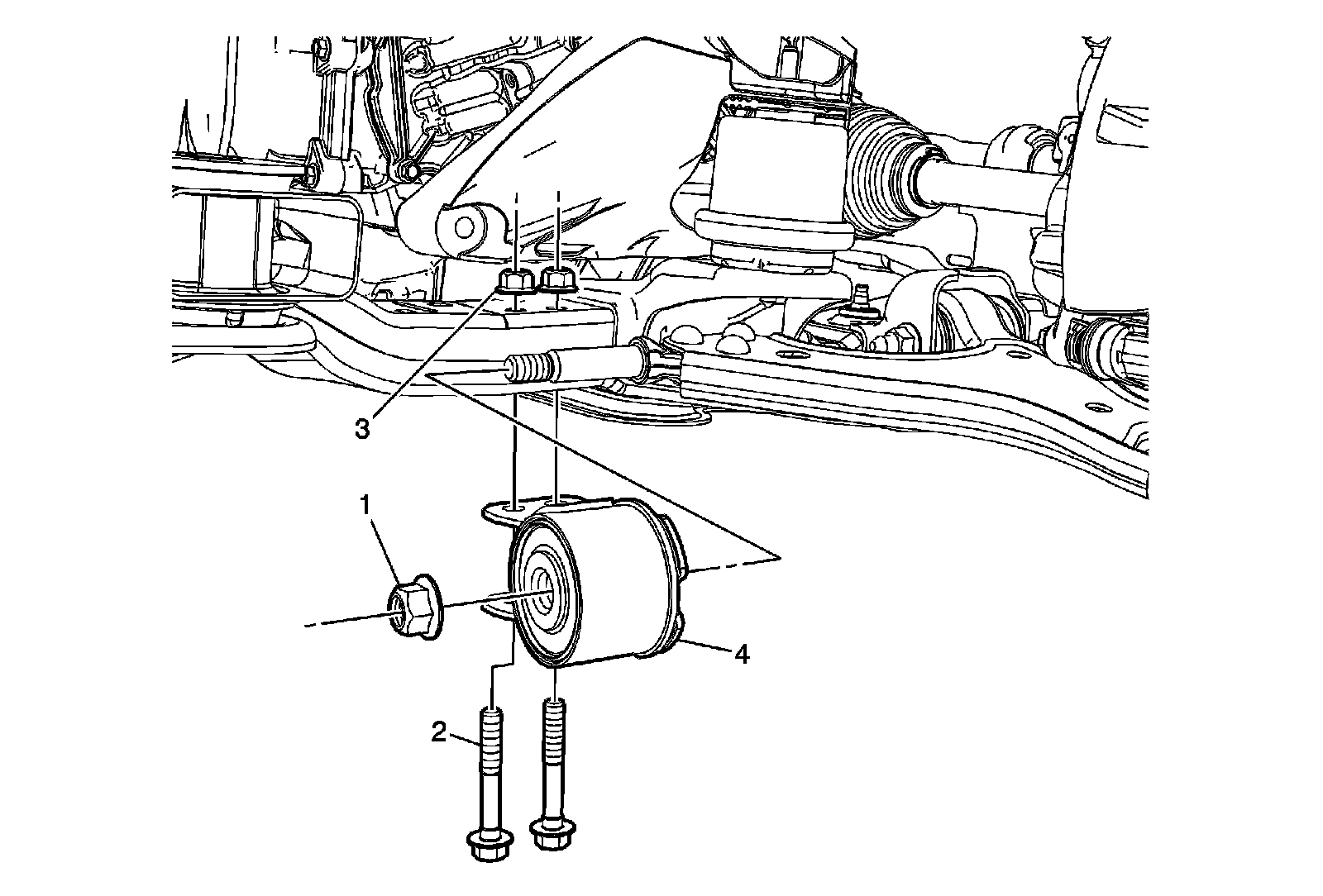

Front Lower Control Arm Bushing Replacement




Front Lower Control Arm Bushing Replacement
