Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Seat Belt Retractor >> Service and Repair >> Seat Belt Retractor Replacement - No. 1 Rear

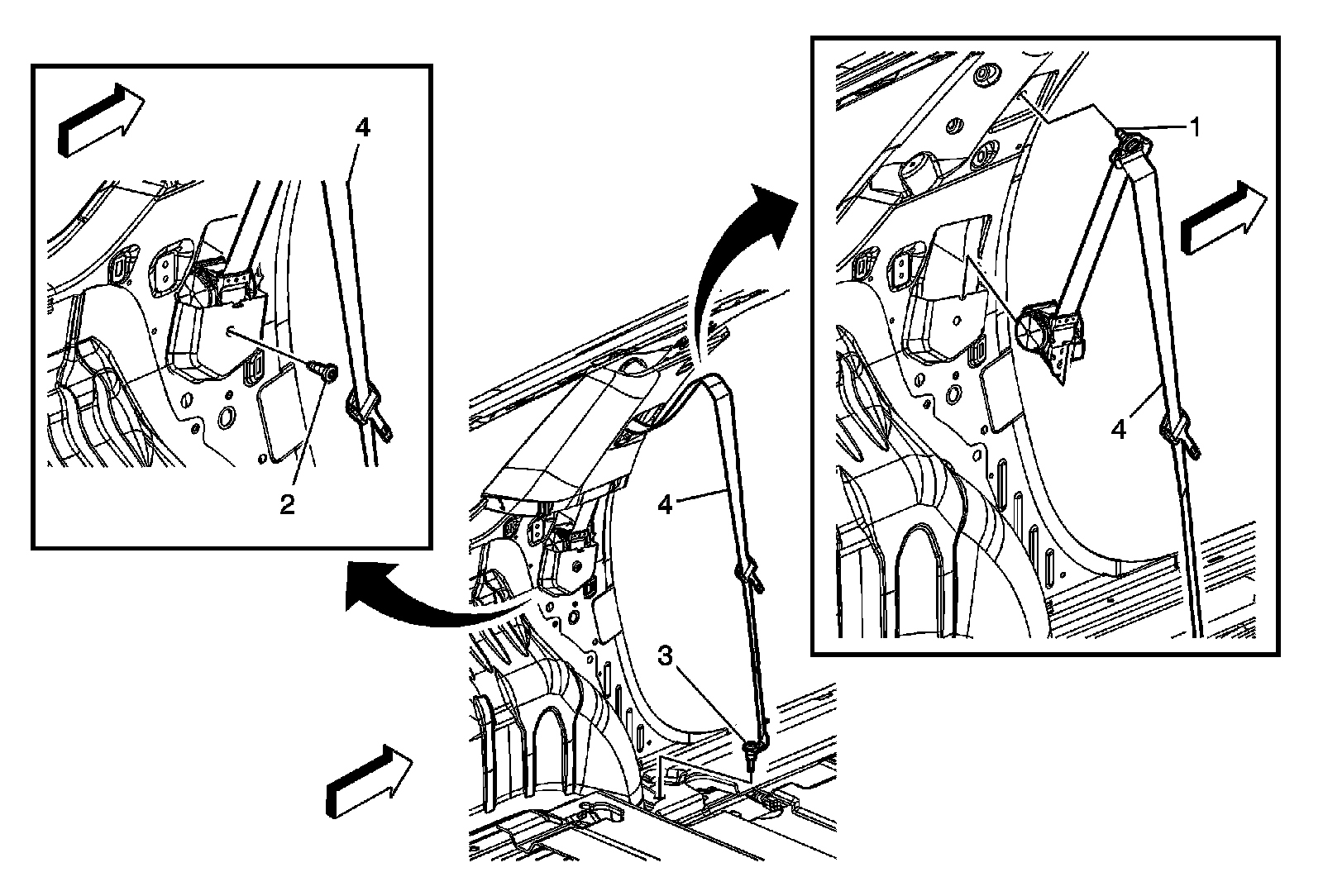

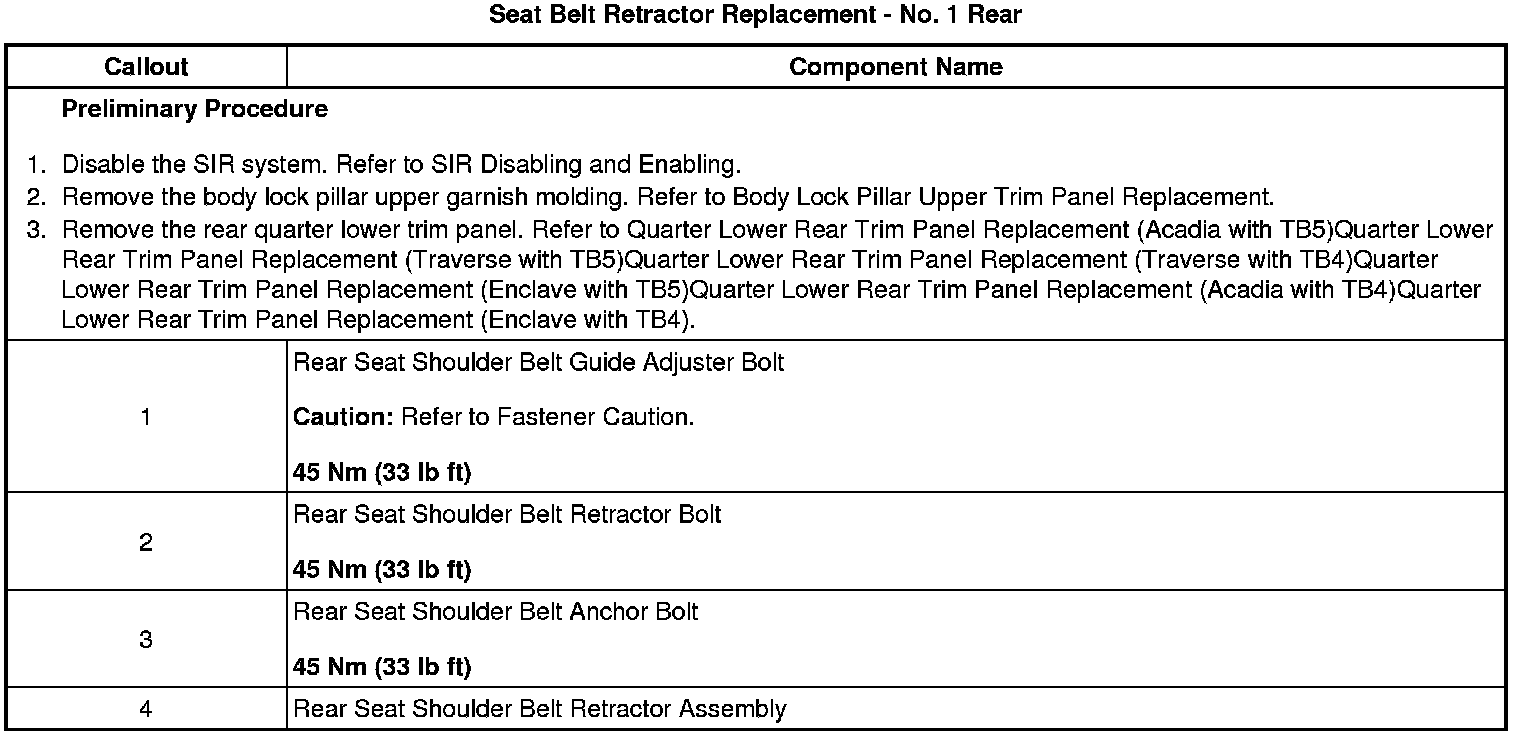

Seat Belt Retractor Replacement - No. 1 Rear




Seat Belt Retractor Replacement - No. 1 Rear
